Hunter SRC Plus Product Information Guide

24
25

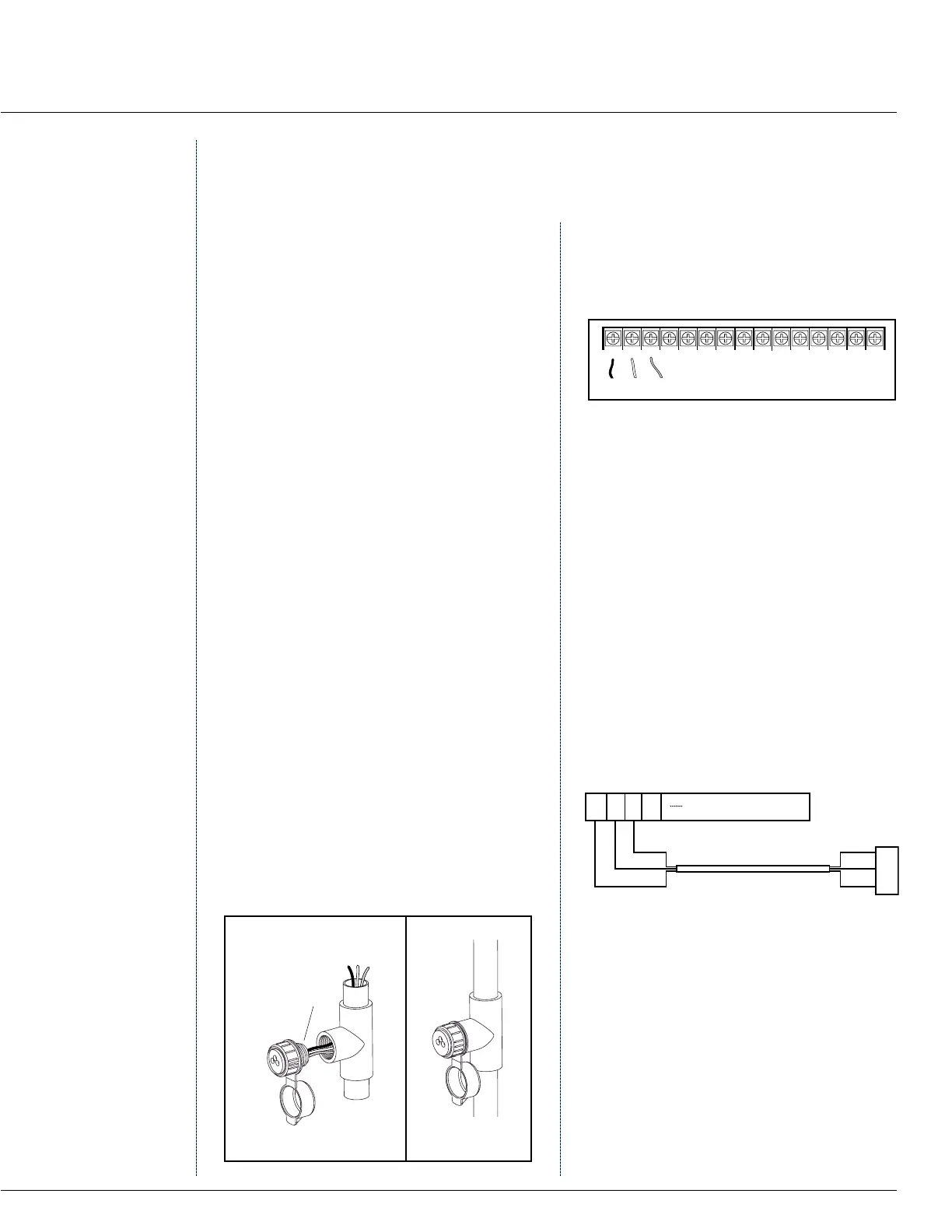

Fig. 1









   
SRR Remote Control
Smart Port
®
Wiring Harness
Preparing the Communication Port
To utilize the SRR Remote Control
System, your Hunter controller must be
equipped with the SRR SmartPort
®
wiring
harness. This wiring harness provides
the communication port where the SRR
receiver is attached. The SmartPort
®
installation instructions are included in the
SRC Plus installation and programming
instructions. Additional wiring harnesses
can be purchased separately to allow you
to utilize the transmitter and receiver with
additional controllers.
Installing the SRR Remote
Wiring Harness
1. Install a " female threaded “Tee” in
the eld wiring conduit approximately
12" below the SRC controller. (Note:
the harness may be installed out doors
by rst bringing the conduit through
an exterior wall, then installing the
appropriate tting).
2. Feed the red, white and blue wires of
the harness through the base of the
“Tee” and into the controller wiring
compartment as shown in Figure 1.
3. Screw the harness housing into the
“Tee” (or other tting) as shown in
Figure 1.
4. Attach the red, white and blue wires
from the harness to the terminal block
of the controller as shown in Figure 2.
              
  
Fig. 2
Extending the Wiring Harness
Any extension of the wiring on the
harness may result in an error message
in the controller display and possible
malfunction of the remote unit due to
radio interference. In some situations,
lengthening of the harness may work
ne, in others it may not work at all (it
is site specic). In either case, extending
the wiring harness should be done using
shielded cable to minimize the possible
effects of electrical noise. Hunter’s SCWH
is a wiring harness with 25 feet of shielded
cable which makes extending the receiver
connection fast and simple.
Transmitter
Preparing the Transmitter for Use
Your SRR System is designed to work
right out of the box. This means that
other than installing the battery, you
may chose to skip this entire section.
However, we recommend you read it
because with a few simple steps you can
customize your SRR to add functionality
and security to your system. Be aware that
if you change your transmitter address or
maximum station number as described
Assembled
INSTALLATION AND PROGRAMMING
Pre-assembled
" Thread
To Controller
