Hunter Thermostat User Manual

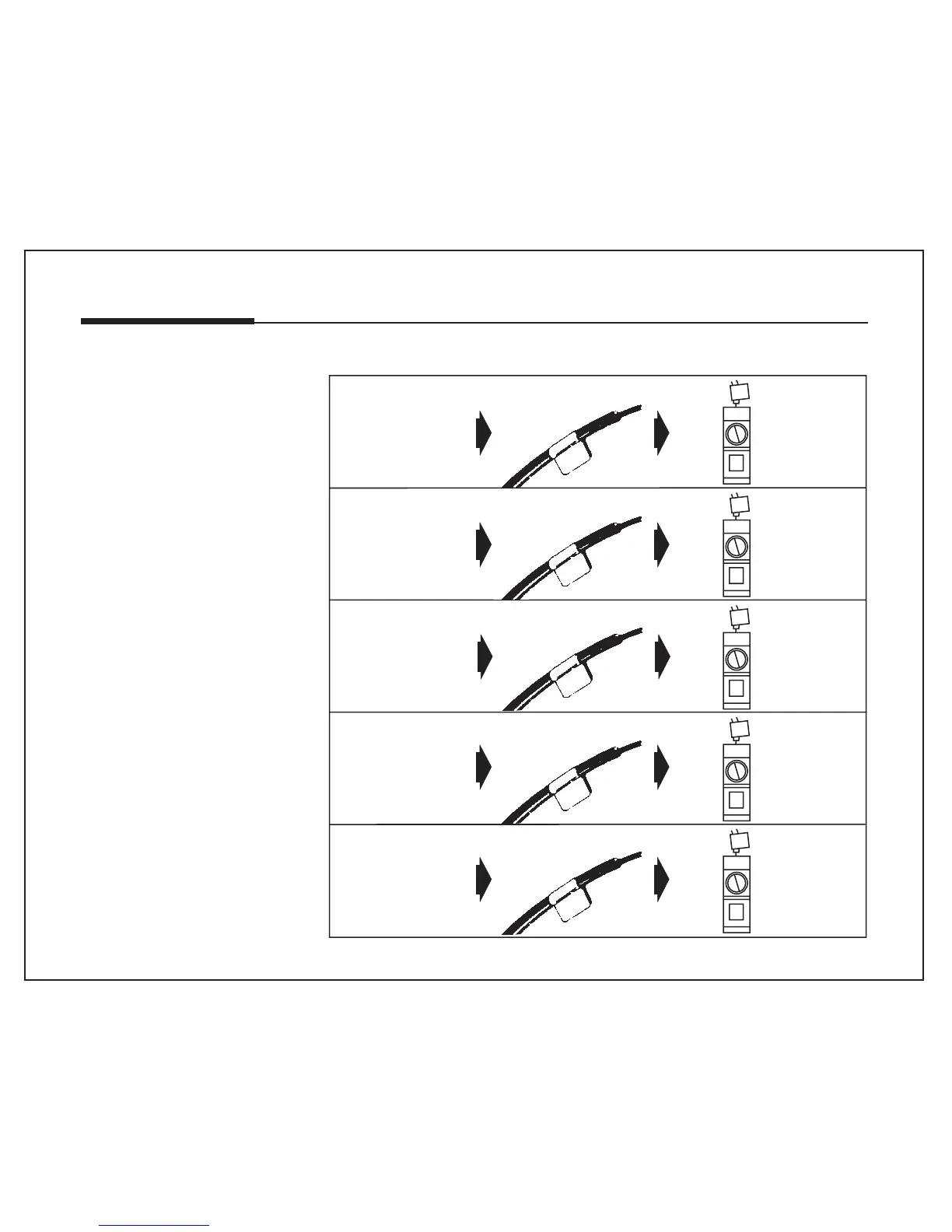

Wire Labeling
RH
G
Y
W
RC
RH
RH
RC
RC
G
G
Y
Y
W
W
and connect to thermostat
Terminal shown
then mark wire
with label shown
If the code letter on your
existing thermostat is
RH, R,
VR or 4
24 Volt
G or F
Fan
RC, VC
24 Volt Cool
Y, C or M
(See Note)
Air Conditioning
W or H
Heating
RED
BLUE
GREEN
YELLOW
WHITE
This table will help you
match the labels to the
wires so you can attach
them to your Hunter
Thermostat.
NOTE: Follow the labels
when connecting wires
since many installations
do not follow color
coding of wires.
TABLE A
