Husqvarna 123L User Manual

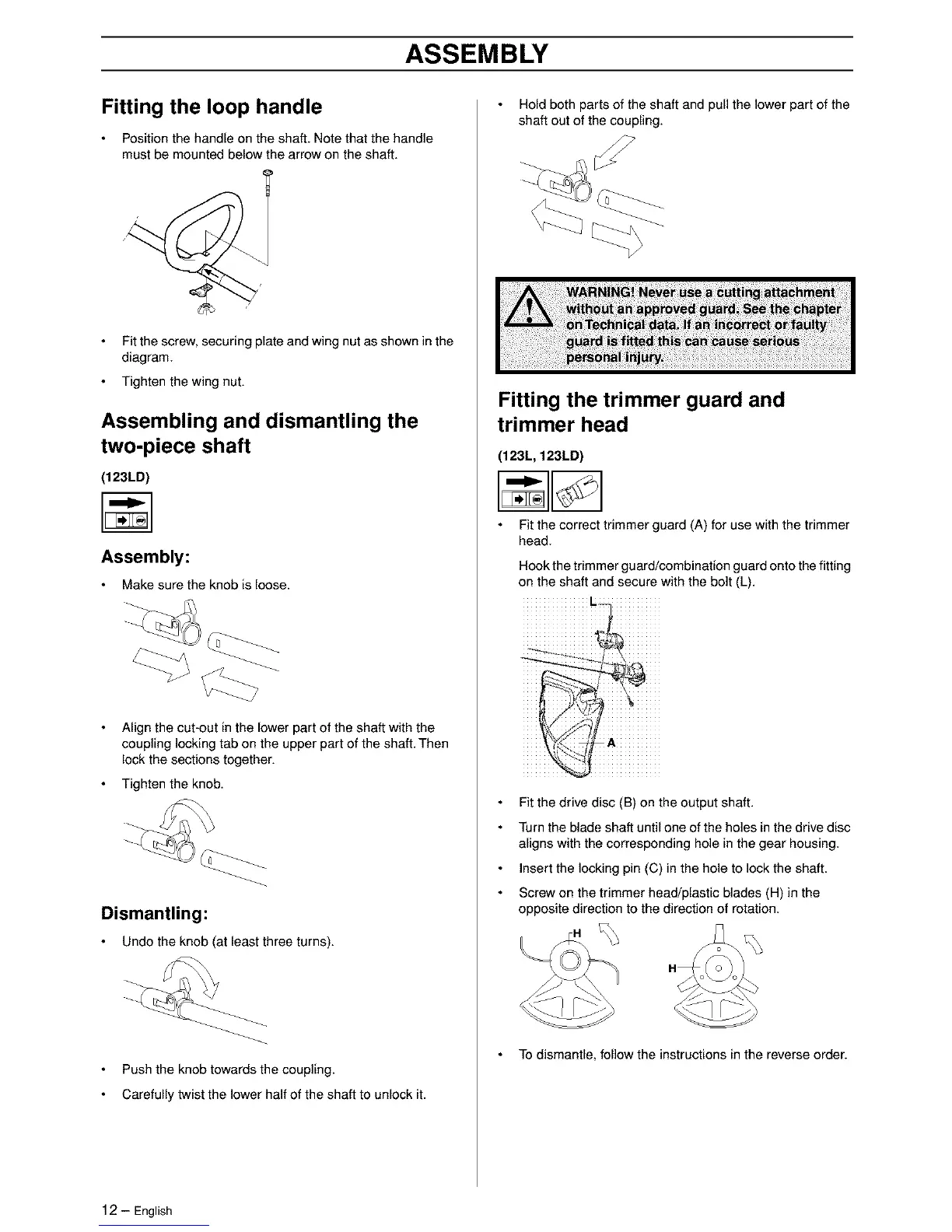

ASSEMBLY
Fitting the loop handle
Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
r
Fit the screw, securing plate and wing nut as shown in the
diagram.
Tighten the wing nut.
Assembling and dismantling the
two-piece shaft
(123LD)
Assembly:
Make sure the knob is loose.
Align the cut-out in the lower part of the shaft with the
coupling locking tab on the upper part of the shaft. Then
lock the sections together.
Tighten the knob.
Dismantling:
Undo the knob (at least three turns).
Push the knob towards the coupling.
Carefully twist the lower half of the shaft to unlock it.
Hold both parts of the shaft and pull the lower part of the
shaft out of the coupling.
Fitting the trimmer guard and
trimmer head
(123L, 123LD)
Fit the correct trimmer guard (A) for use with the trimmer
head.
Hook the trimmer guard/combination guard onto the fitting
on the shaft and secure with the bolt (L).
Fit the drive disc (B) on the output shaft.
Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
Insert the locking pin (C) in the hole to lock the shaft.
Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
To dismantle, follow the instructions in the reverse order.
12 - English

Husqvarna 123L Specifications

General

Engine Displacement	24.5 cm³
Power Output	0.8 kW
Cutting Width	41.91 cm
Weight	3.99 kg
Fuel Tank Volume	0.5 l
Shaft Type	Straight
Engine Type	2-stroke
Fuel Tank Capacity	0.5 l
