Husqvarna 123L User Manual

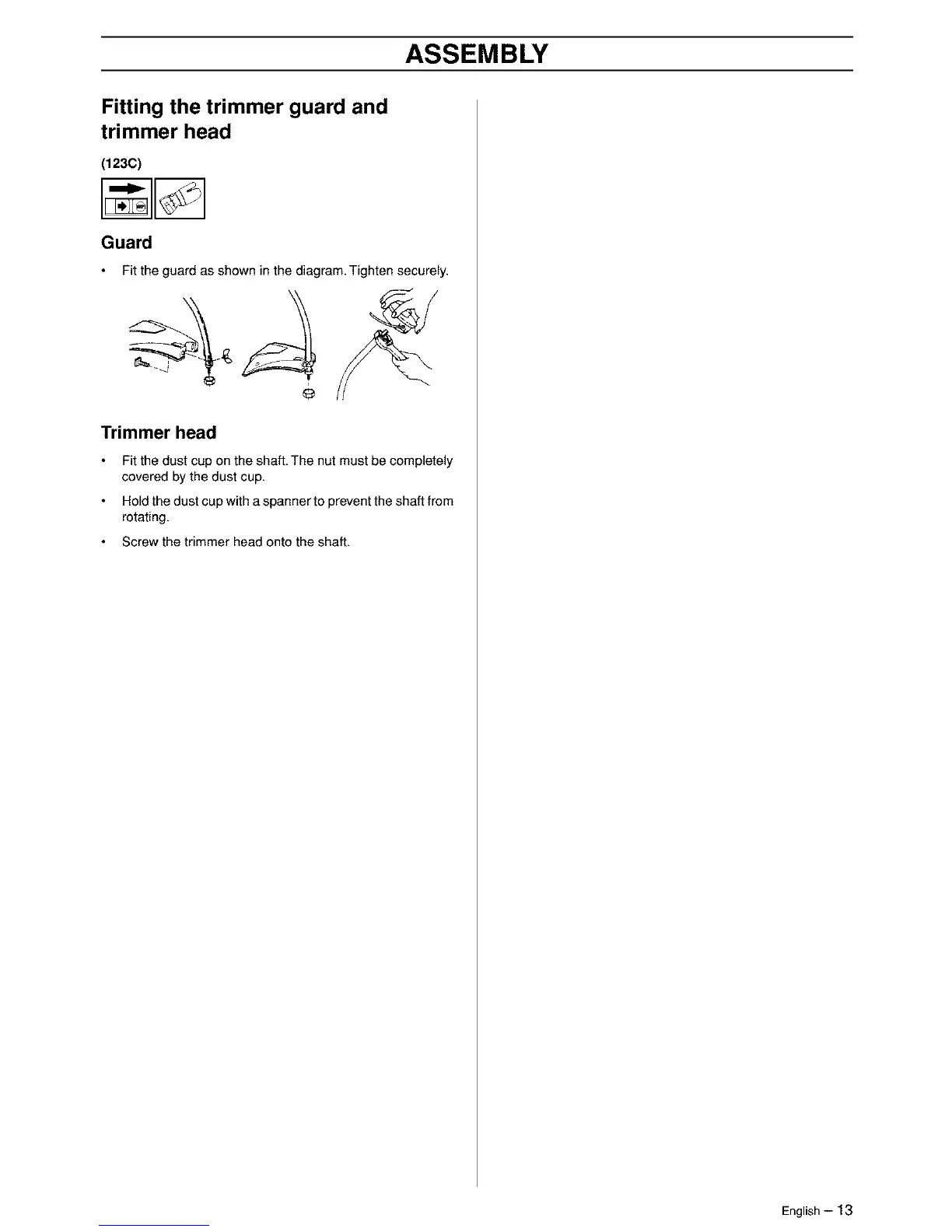

ASSEMBLY
Fitting the trimmer guard and
trimmer head
(1230)
Guard
Fit the guard as shown in the diagram. Tighten securely.
Trimmer head
Fit the dust cup on the shaft. The nut must be completely
covered by the dust cup.
Hold the dust cup with a spanner to prevent the shaft from
rotating.
Screw the trimmer head onto the shaft.
English -- 13

Husqvarna 123L Specifications

General

Engine Displacement	24.5 cm³
Power Output	0.8 kW
Cutting Width	41.91 cm
Weight	3.99 kg
Fuel Tank Volume	0.5 l
Shaft Type	Straight
Engine Type	2-stroke
Fuel Tank Capacity	0.5 l
