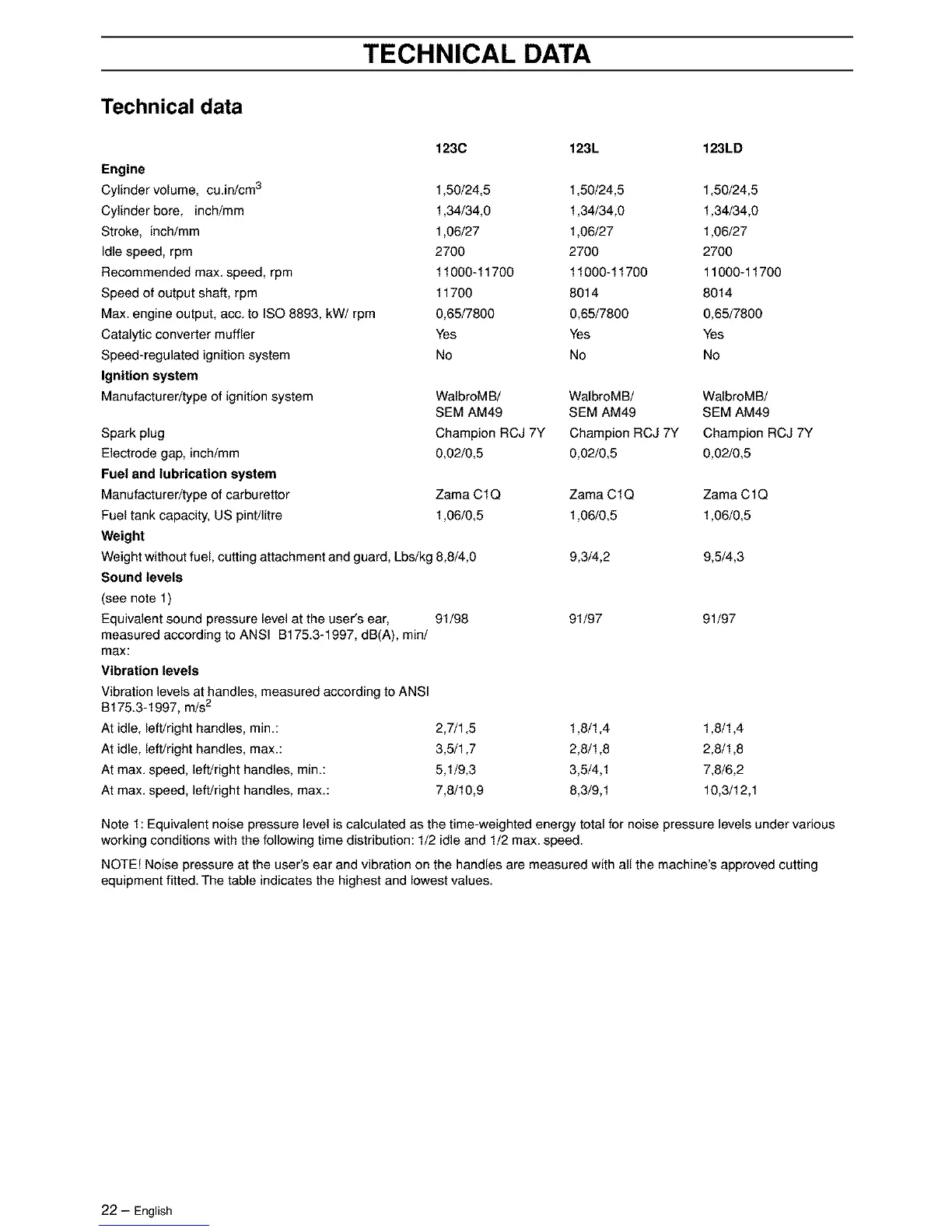

TECHNICAL DATA
Technical data
Engine
Cylinder volume, cu.in/cm 3
Cylinder bore, inch/mm
Stroke, inch/ram
Idle speed, rpm
Recommended max. speed, rpm
Speed of output shaft, rpm
Max. engine output, acc. to ISO 8893, kW/rpm
Catalytic converter muffler
Speed-regulated ignition system
Ignition system
Manufacturer/type of ignition system
Spark plug
Electrode gap, inch/mm
Fuel and lubrication system
Manufacturer/type of carburettor
Fuel tank capacity, US pint/litre
Weight
123C 123L 123LD
1,50/24,5 1,50/24,5 1,50/24,5
1,34/34,0 1,34/34,0 1,34/34,0
1,06/27 1,06/27 1,06/27
2700 2700 2700
11000-11700 11000-11700 11000-11700
11700 8014 8014
0,65/7800 0,65/7800 0,65/7800
Yes Yes Yes
No No No
WalbroMB/ WalbroMB/ WalbroMB/
SEM AM49 SEM AM49 SEM AM49
Champion RCJ 7Y Champion RCJ 7Y Champion RCJ 7Y
0,02/0,5 0,02/0,5 0,02/0,5
Zama C1Q Zama C1Q Zama C1Q
1,06/0,5 1,06/0,5 1,06/0,5
Weight without fuel, cutting attachment and guard, Lbs/kg 8,8/4,0
Sound levels
(see note 1)
Equivalent sound pressure level at the user's ear, 91/98
measured according to ANSI B175.3-1997, dB(A), rain/
max:
Vibration levels
Vibration levels at handles, measured according to ANSI
B175.3-1997, m/s2
At idle, left/right handles, rain.: 2,7/1,5
At idle, left/right handles, max.: 3,5/1,7
At max. speed, left/right handles, min.: 5,1/9,3
At max. speed, left/right handles, max.: 7,8/10,9
9,3/4,2 9,5/4,3
91/97 91/97
1,8/1,4 1,8/1,4
2,8/1,8 2,8/1,8
3,5/4,1 7,8/6,2
8,3/9,1 10,3/12,1
Note 1: Equivalent noise pressure level is calculated as the time-weighted energy total for noise pressure levels under various
working conditions with the following time distribution: 1/2 idle and 1/2 max. speed.
NOTE! Noise pressure at the user's ear and vibration on the handles are measured with all the machine's approved cutting
equipment fitted. The table indicates the highest and lowest values.
22- English
