13
S Make your fist c ut 1/3 of the way through
the bottom of the limb.
S Next make a 2nd cut all the way
through the limb. Then cut a third over-
cut leaving a 1 to 2 inch collar from the
trunk of the tree.
First cut
Second cut
Third cut
Collar

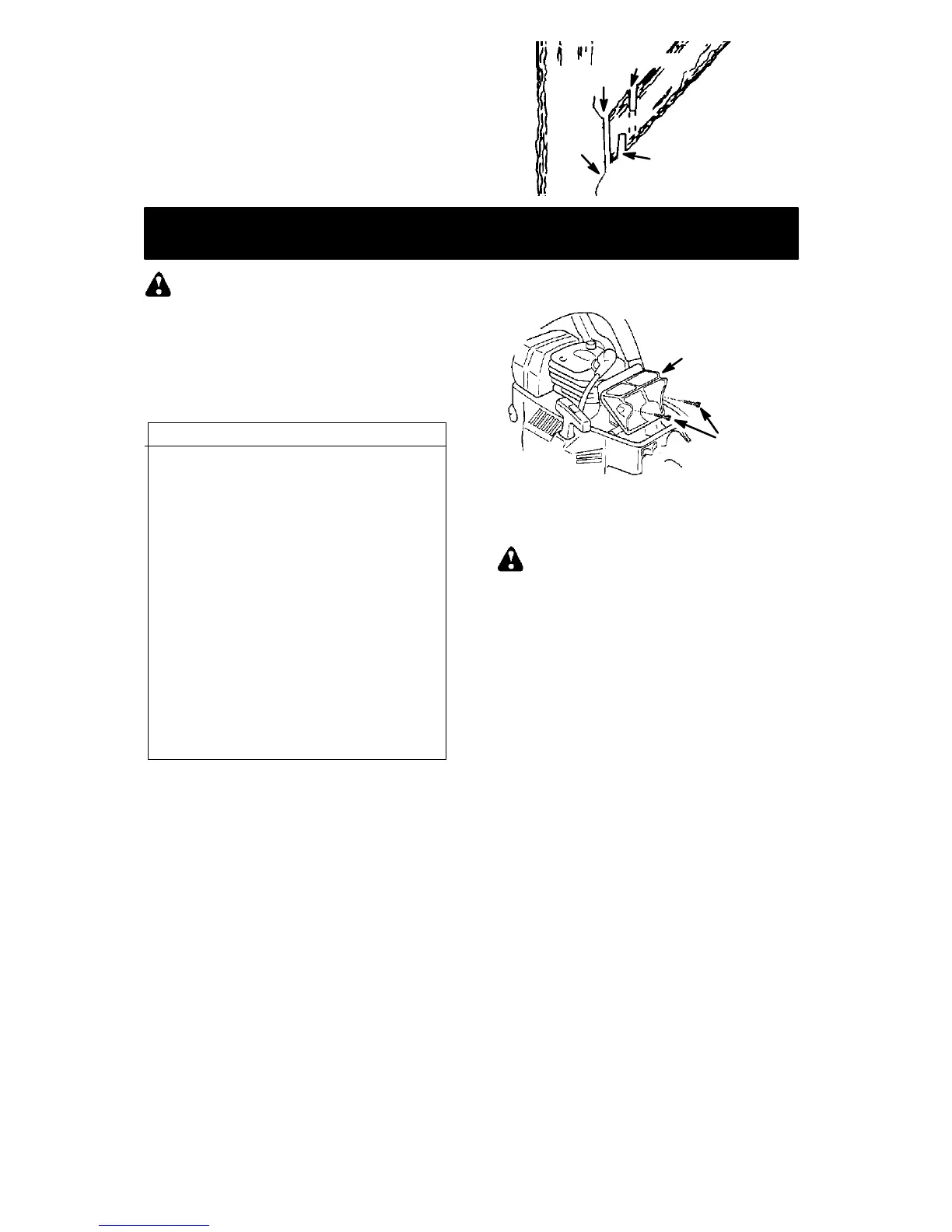

Pruning technique
SERVICE AND ADJUSTMENTS
WARNING: Muf fler is very hot dur-
ing and after use. Do not touch the muffler or
allow combustible material such as dry
grass or fuel to do so.
We recomm end all service and adjustments
not listed in this manual be performed by an
authorized Husqvarna Service Dealer.
MAINTENANCE SCHEDULE
Check:
Fuel mixture level Before each use....
Bar lubrication Before each use.......
Chain tension Before each use.......
Chain sharpness Before each use....
For damaged parts Before each use..
F or loose caps Before each use......
For loose f asteners Before each use...
For loose parts Before each use......
Muffler Every 25 hours*.............
Inspect a nd C lean:
Bar Before each use................
Complete saw After each use.......
Air filter Every 5 hours*.............
Chain brake Every 5 hours*........
Replace spark plug Yearly.
Repla ce fuel filter Yearly...
*HoursofOperation
AIR FILT E R
CAUTION:
Do not clean filter in gasoline or
other flammable solvent to avoid creating a
fire hazard or producing harmful evaporative
emissions.
Cleaning the air filter:
A dirty air filter decreases engine perform -
ance and increases fuel consumption and
harmful emissions. Always clean after 15
tanks of fuel or 5 hours of operation, which-
ever comes first. Clean more frequently in
dusty conditions. A used air filter can never
be completely cleaned. It is advisable to re-
place your air filter with a new one after every
50 hours of operation, or annually, whichever
comes first.
1. Loosen 3 screws on cylinder cover.
2. Remove cylinder cover.
3. Remove air filter .
4. Clean the air filter using hot soapy water .
Rinse with clean cool water. Air dry com-
pletely before reinstalling.
5. Reinstall air filter.
6. Reinstall cylinder cover and 3 screws.
TIghten securely.
Air Filter
Air Filter
Screws
MUFFLER AND SPARK ARRESTING
SCREEN
WARNING: The muffler on this prod-
uct contains chemicals known to the State of
California to cause cancer.
NOTE: THE SPARK ARRESTING
SCREEN ON THIS UNIT IS NOT SERVI-
CEABLE.
For normal homeowner use, the muffler and
spark arresting screen will not require re-
placement. After 75 hours of use, we re com-
mend that your muffler be replaced by your
authorized Husqvarna service dealer.
CARBURETOR ADJUSTMENTS
The chain will be moving during most of this
procedure. W ear your protective equipment
and observe all safety precautions. The
chain must not move at idle speed.
The carburetor has been carefully set at the
factory . Adjustm ents may be necessary if
you notice any of the following conditions:
S Chain moves at idle. See IDLE SPEED--T
adjusting procedure.
S Saw will not idle. See IDLE SPEED--T ad-
justing procedure.
Idle Speed---T
Allow engine to idle. If the chain moves, idle
is too fast. If the engine stalls, idle is too slow.
Adjust speed until engine runs without chain
movement (idle too fast) or stalling (idle too
slow).
S Turn idle speed screw (T) clockwise to in-
crease engine speed.
S Turn idle speed screw (T) counterclock-
wise to decrease engine speed.If you re-
quire further assistance or are unsure about
performing this procedure, contact your au-
thorized service dealer .
