Husqvarna 223L User Manual

10 – English
ASSEMBLY
1151414-95 Rev. 1 2008-12-23

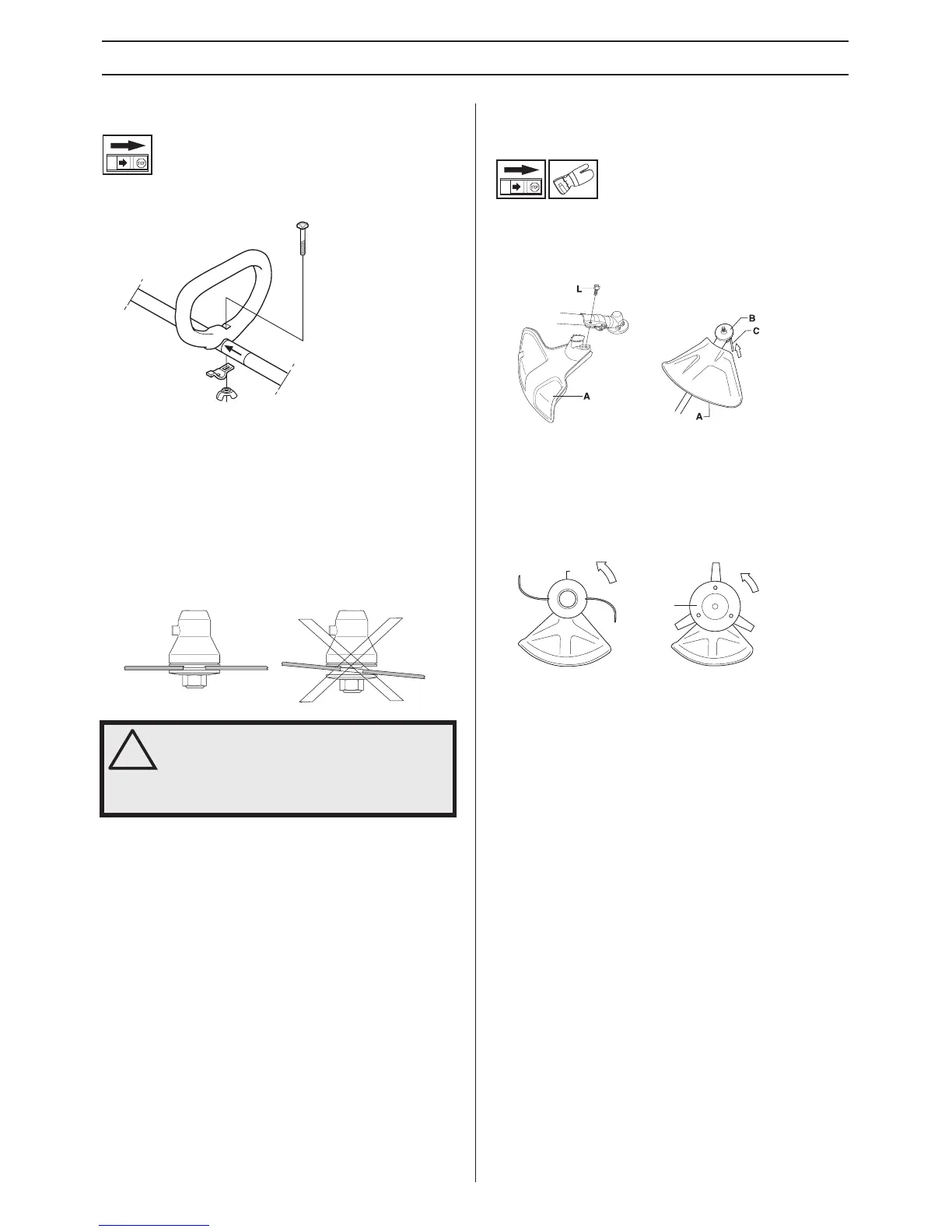

Fitting the loop handle
• Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
• Fit the screw, securing plate and wing nut as shown in the
diagram.
• Tighten the wing nut.
Fitting the trimmer head
When fitting the cutting attachment it is extremely important
that the raised section on the drive disc/support flange
engages correctly in the centre hole of the cutting attachment.
If the cutting attachment is fitted incorrectly it can result in
serious and/or fatal personal injury.
Fitting the trimmer guard and
trimmer head
• Fit the correct trimmer guard (A) for use with the trimmer
head.
Hook the trimmer guard/combination guard onto the fitting
on the shaft and secure with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse order.
!
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
H
H

Husqvarna 223L Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Handle Type	Loop
Starter System	Smart Start
Sound Pressure Level	94 dB(A)
Cylinder Displacement	24.5 cm³
Fuel Tank Volume	0.5 liters
Sound Power Level	105 dB(A)
