WHA T IS WHA T?
1151414-95 Re v . 1 2008-12-23

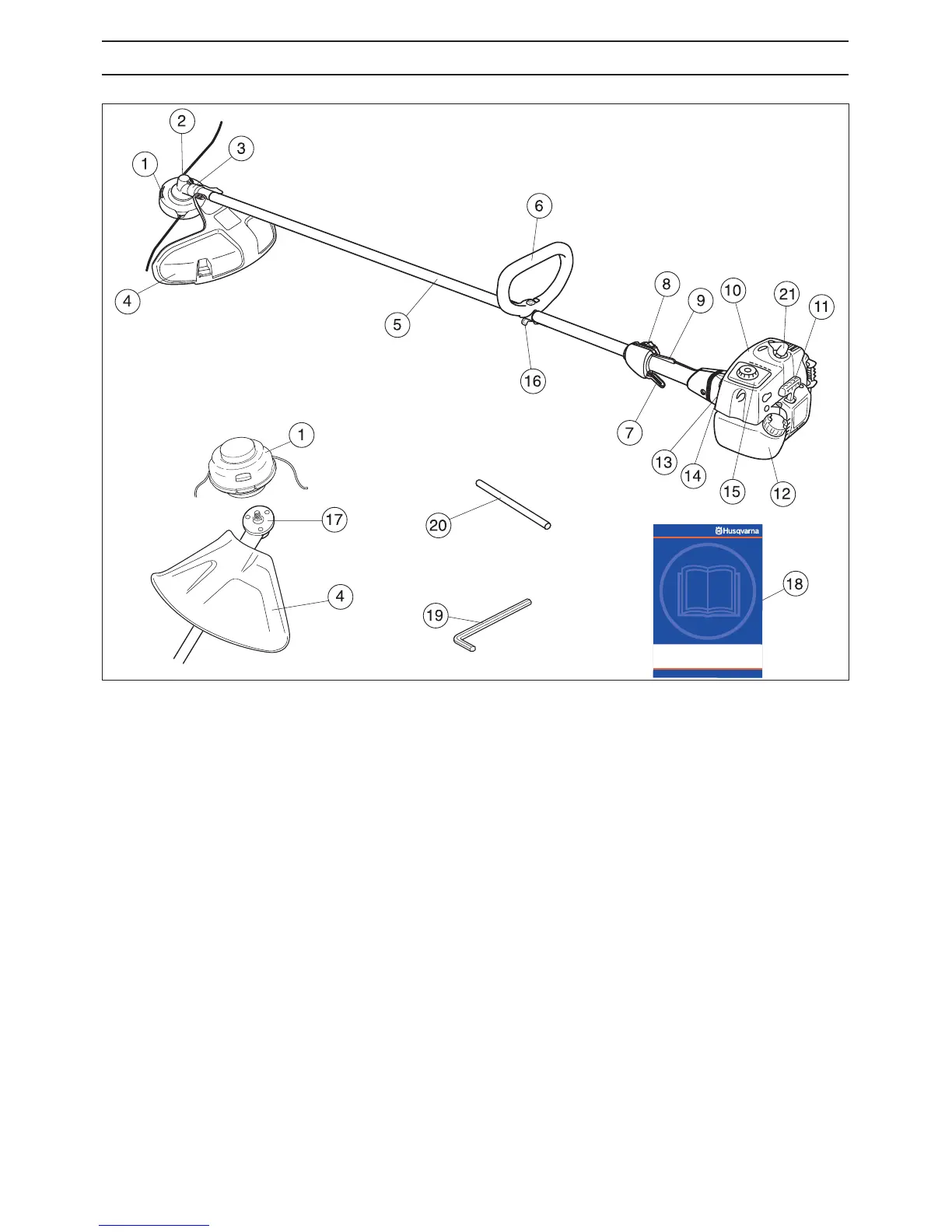

What is what?
1 Trimmer head
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Loop handle
7 Throttle control
8 Stop switch
9 Throttle lock
10 Cylinder cover
11 Starter handle
12 Fuel tank
13 Choke control
14 Air purge
15 Air filter cover
16 Handle adjustment
17 Drive disc
18 Operator’s manual
19 Allen key
20 Locking pin
21 Spark plug cap and spark plug

Husqvarna 223L Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Handle Type	Loop
Starter System	Smart Start
Sound Pressure Level	94 dB(A)
Cylinder Displacement	24.5 cm³
Fuel Tank Volume	0.5 liters
Sound Power Level	105 dB(A)
