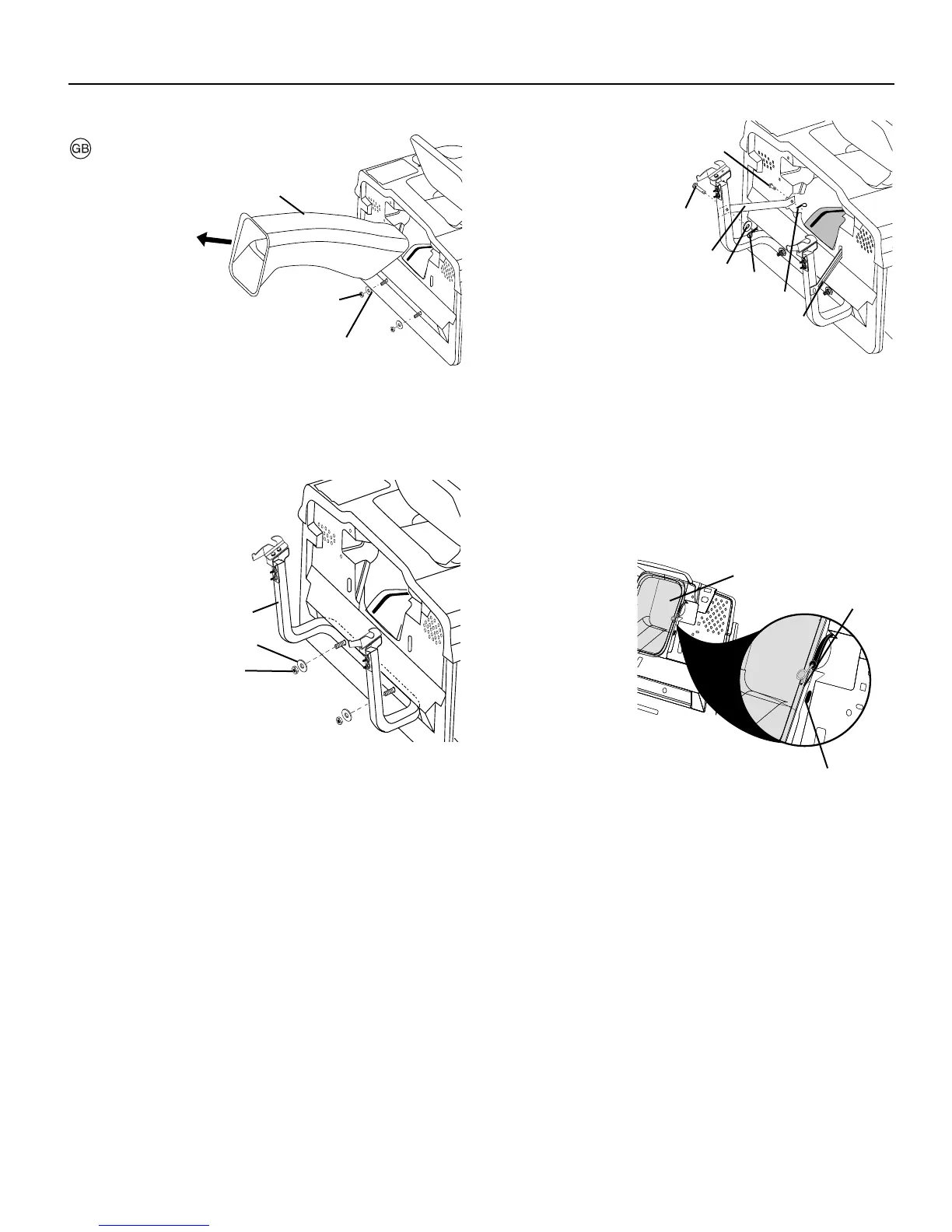

To install bagger com po nents to tractor
1
2
1. Dis charge Chute
2. 3/8 Nut
3. Flat Washer
3
1
2
1. 3/8 Lock nut
2. Flat Wash er
3. Support Tube
• Remove discharge chute from rear of tractor. Unhook the
two (2) straps and pull chute out and away from tractor.
• Remove the two (2) 3/8 nuts and fl at washers from the
bolts at the tractor back plate.
• Using the nuts and fl at washers removed from tractor
back plate, install the bagger support tube to the back
plate as shown. Tighten securely.
3
0
2
813
2
5
4
1
3
3
1. Support Bracket
2. Clevis Pin 10 x 17mm
3. Retainer Spring
4. Clevis Pin 10 x 50mm
5. 10,3mm (13/32") flat
washer
1. Hook
2. Discharge Chute
3. Back plate slot
2
1
3
• Install the two upper support brack ets through the back
plate and to the chas sis, install the clevis pin 10x17mm
and secure with retainer spring.
• Assemble both support brackets to the outside of the
baggger support tube install the clevis pin 10x50mm and
secure with retainer spring.
• Replace discharge chute into rear opening of tractor.
Secure the chute with the two hook straps.
NOTE: The strap hook must go through the discharge chute
only. Do not allow the hook to enter the slot in the tractor
back plate. This will allow the dis charge chute to fl oat with the
mower deck when moving on uneven terrain.
