use accessories from the
manufacturer.
•
When not in operation, keep
the product, battery and
battery charger apart in a dry,
indoor and locked area. Make
sure that children and persons
that are not approved cannot
get access to the product,
battery or battery charger.
Assembly
Introduction
WARNING: Before you assemble the
product, read the safety chapter.
WARNING: For model LC 141iV,
LC 141i: To prevent accidental start during
assembly, turn the safety key to 0, remove
the battery and wait at minimum 5 seconds.
For model LC 141C: To prevent accidental
start during assembly, disconnect the power
cord.

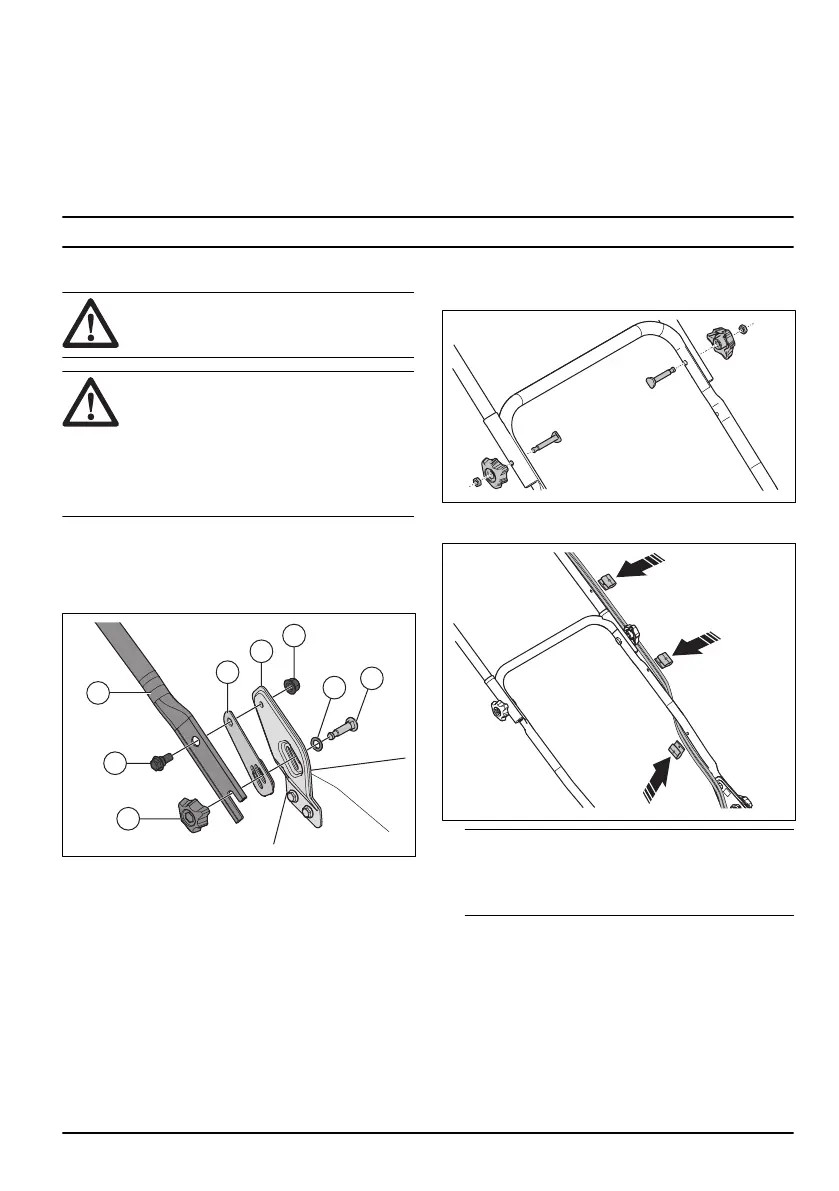

To assemble the handle
1. Push the screw (A) through the handle (B), the
plastic washer (C) and the handle support bracket
(D).
2. Tighten the nut (E) fully.
3. Push the screw (F) thrugh the washer (G) and the
handle support bracket.
4. Tighten the knob (H) fully.
5. Align the holes in the handlebar with the holes in the
lower handle and attach the screws, washers and
knobs. Tighten the knobs fully.
6. Attach the cables to the handle with the cable
holders.
Note: Make sure that the tension in the cables is
not too high. A too high tension can cause damage
to the cable if the handle is folded to transport
position.
