CONTROLS
This operator's manual describes the Husqvarna
Zero Turn Rider. The rider is fitted with a four-stroke
overhead valve engine.

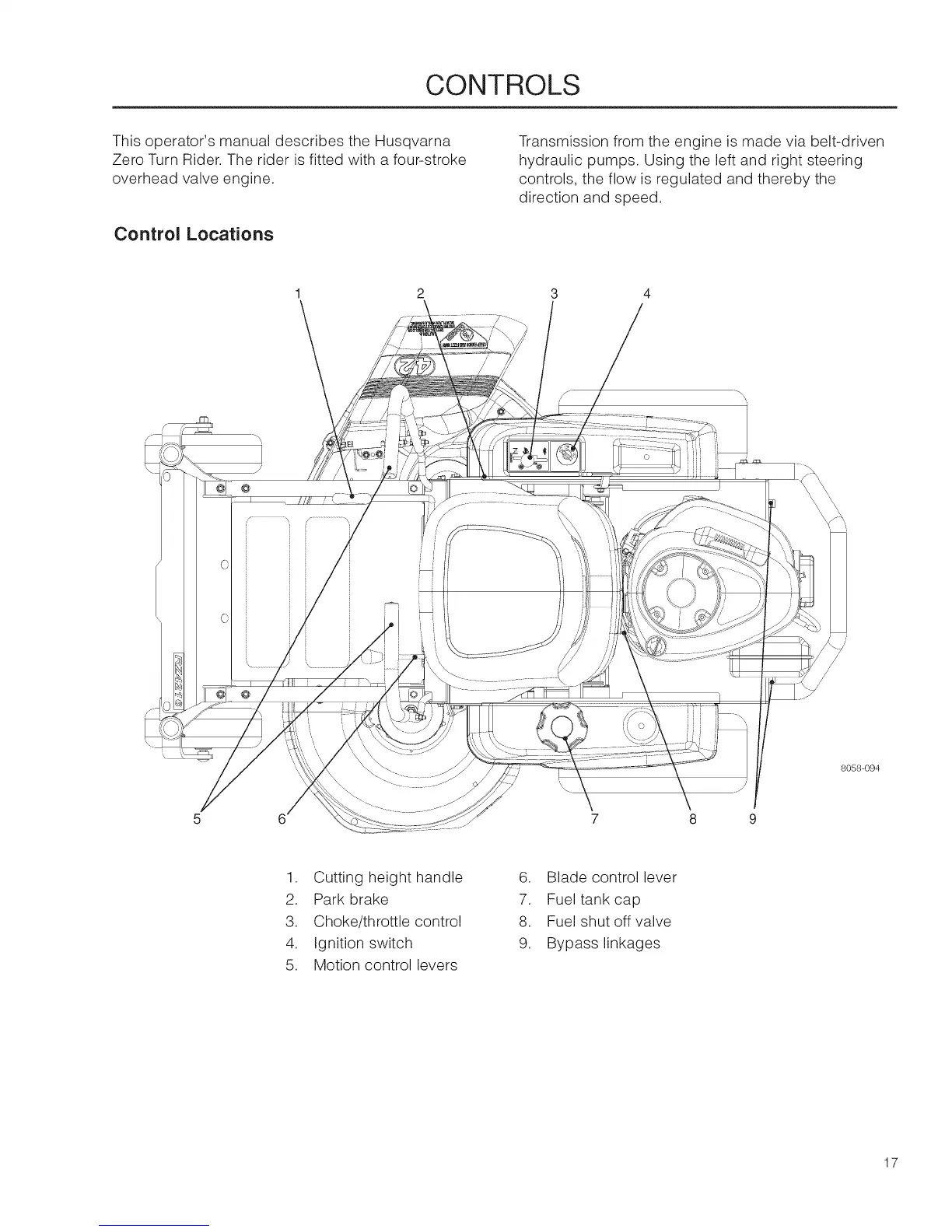

Control Locations
Transmission from the engine is made via belt-driven
hydraulic pumps. Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed.
@
8058-094
7
1. Cutting height handle
2. Park brake
3. Choke/throttle control
4. Ignition switch
5. Motion control levers
6. Blade control lever
7. Fuel tank cap
8. Fuel shut off valve
9. Bypass linkages
17

Husqvarna RZ4219 BF Specifications

General

Engine Power	19 HP
Transmission	Hydrostatic
Deck Material	Steel
Cutting Width	42 inches
Engine	Briggs & Stratton
Blade Engagement	Electric
Seat Type	High-back
Warranty	3 year
Turning Radius	Zero-turn
