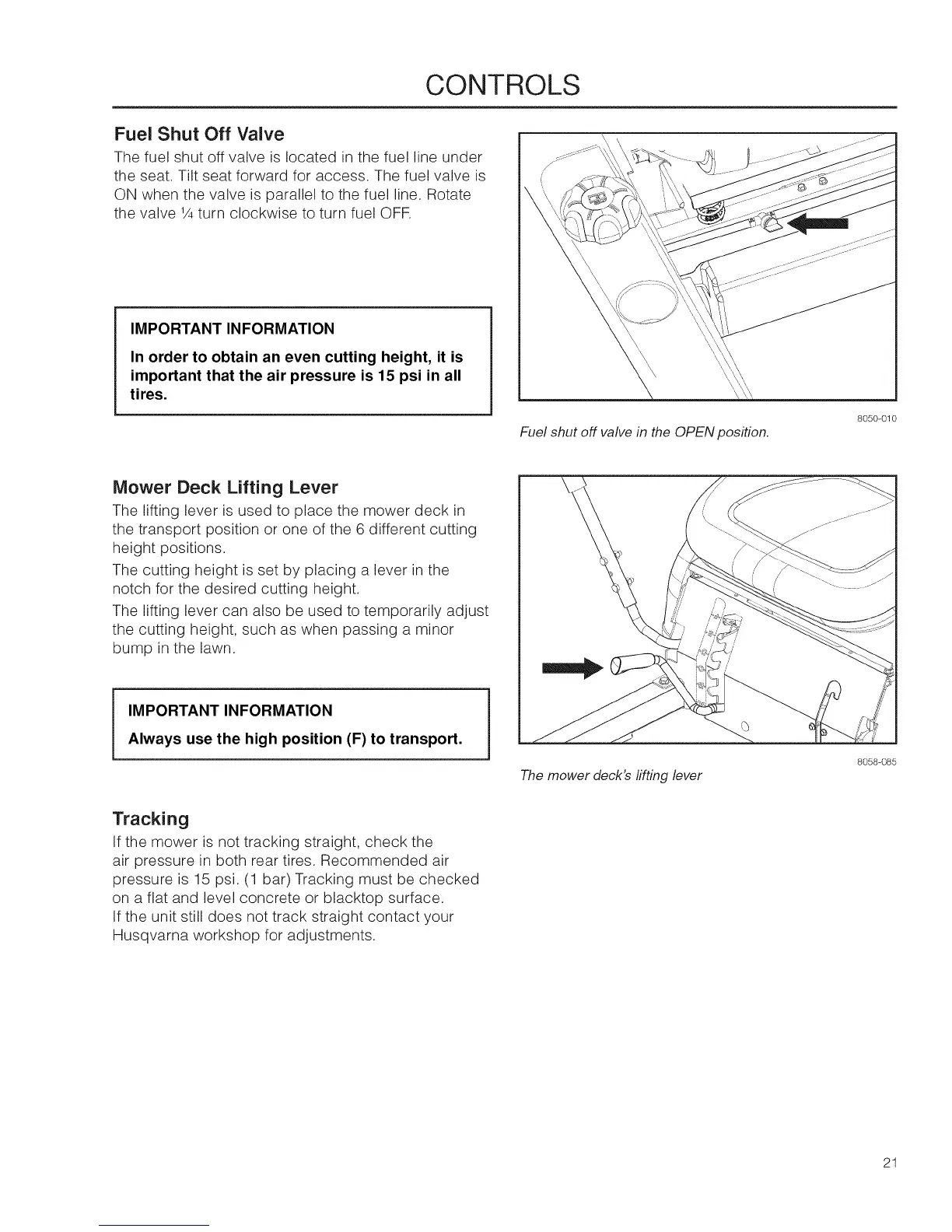

CONTROLS
Fuel Shut Off Valve
The fuel shut off valve is located in the fuel line under
the seat. Tilt seat forward for access. The fuel valve is
ON when the valve is parallel to the fuel line. Rotate
the valve ¼ turn clockwise to turn fuel OFR
IMPORTANT INFORMATION
In order to obtain an even cutting height, it is
important that the air pressure is 15 psi in all
tires.
Fuel shut off valve in the OPEN position.
8050-010
Mower Deck Lifting Lever
The lifting lever is used to place the mower deck in
the transport position or one of the 6 different cutting
height positions.
The cutting height is set by placing a lever in the
notch for the desired cutting height.
The lifting lever can also be used to temporarily adjust
the cutting height, such as when passing a minor
bump in the lawn.
IMPORTANT INFORMATION
Always use the high position (F) to transport.
Tracking
If the mower is not tracking straight, check the
air pressure in both rear tires. Recommended air
pressure is 15 psi. (1 bar) Tracking must be checked
on a flat and level concrete or blacktop surface.
If the unit still does not track straight contact your
Husqvarna workshop for adjustments.
The mower deck's lifting lever
8058-085
21
