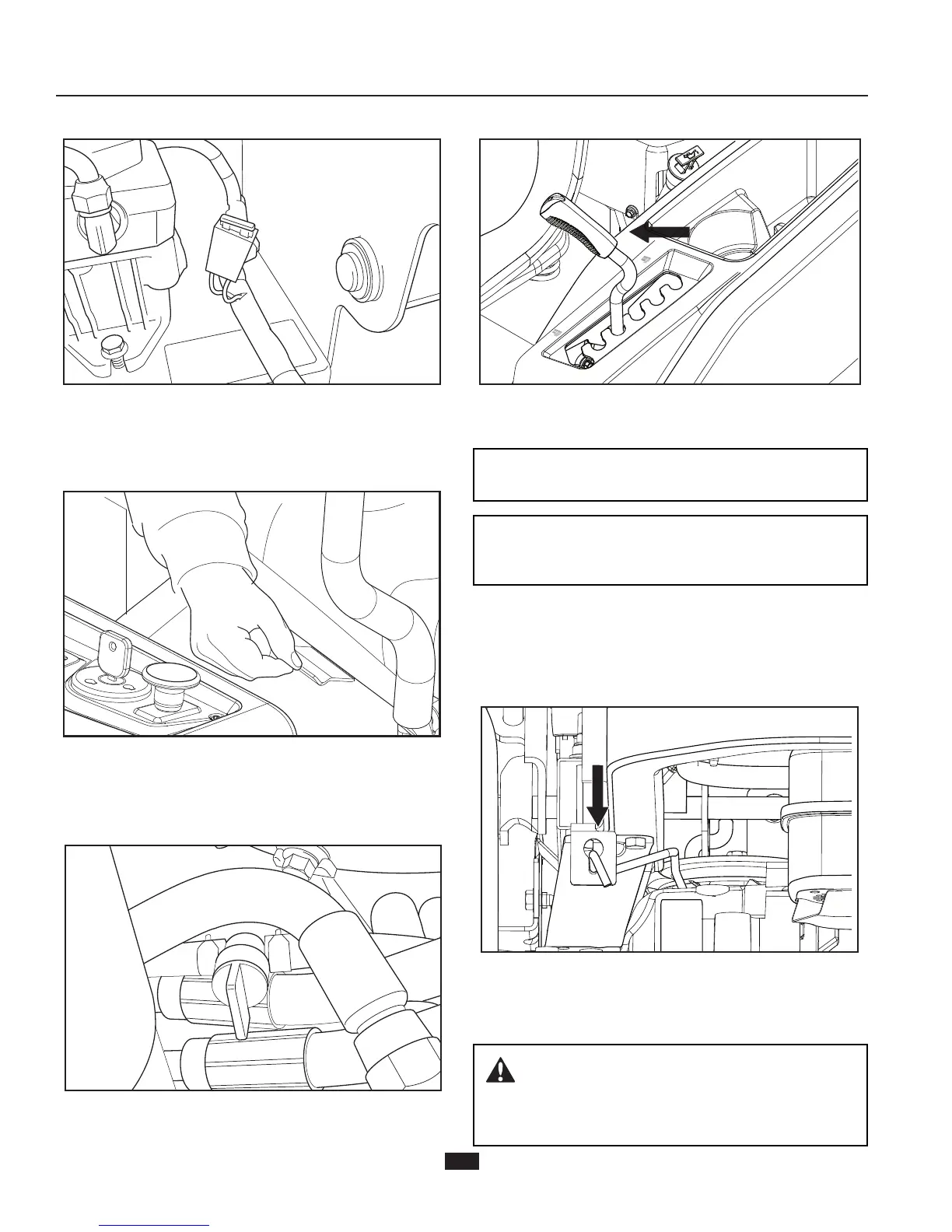

Fuse
The 20 amp primary fuse is located on the left hand side of the
machine. It is accessed by tilting the seat forward. The fuse is
a flat pin type used in automobiles.
Fuel Shut Off Valve
The fuel shut off valve is located at the right rear of the seat.
The valve is off when the handle tab is turned perpendicular to
the fuel line.
Seat Adjustment Lever
The seat can be adjusted lengthways. When making
adjustments, the lever under the right side of the seat is pulled
up, after which the seat can be moved backward or forward.
Cutting Height Lever
IMPORTANT INFORMATION To obtain an even cutting
height, it is important that the air pressure in all tires is 15
psi / 103 kPa / 1 bar.
IMPORTANT INFORMATION Always raise the deck to the
highest position for transport.
To set the deck cutting height, pull the cutting height lever
inwards and move it to the desired height notch.
Bypass Linkages
WARNING! Bypass linkages are located close to
the muffler. To prevent burns, the engine should be shut off
and allowed to cool before the bypass linkage levers are
handled.
Transaxle bypass linkages must be engaged when pushing or
pulling the mower. The release levers are located on each side
of the rear of the unit below the rear engine guard. See Moving
Machine By Hand in the Operation section.
