2-2
110
907 01/09

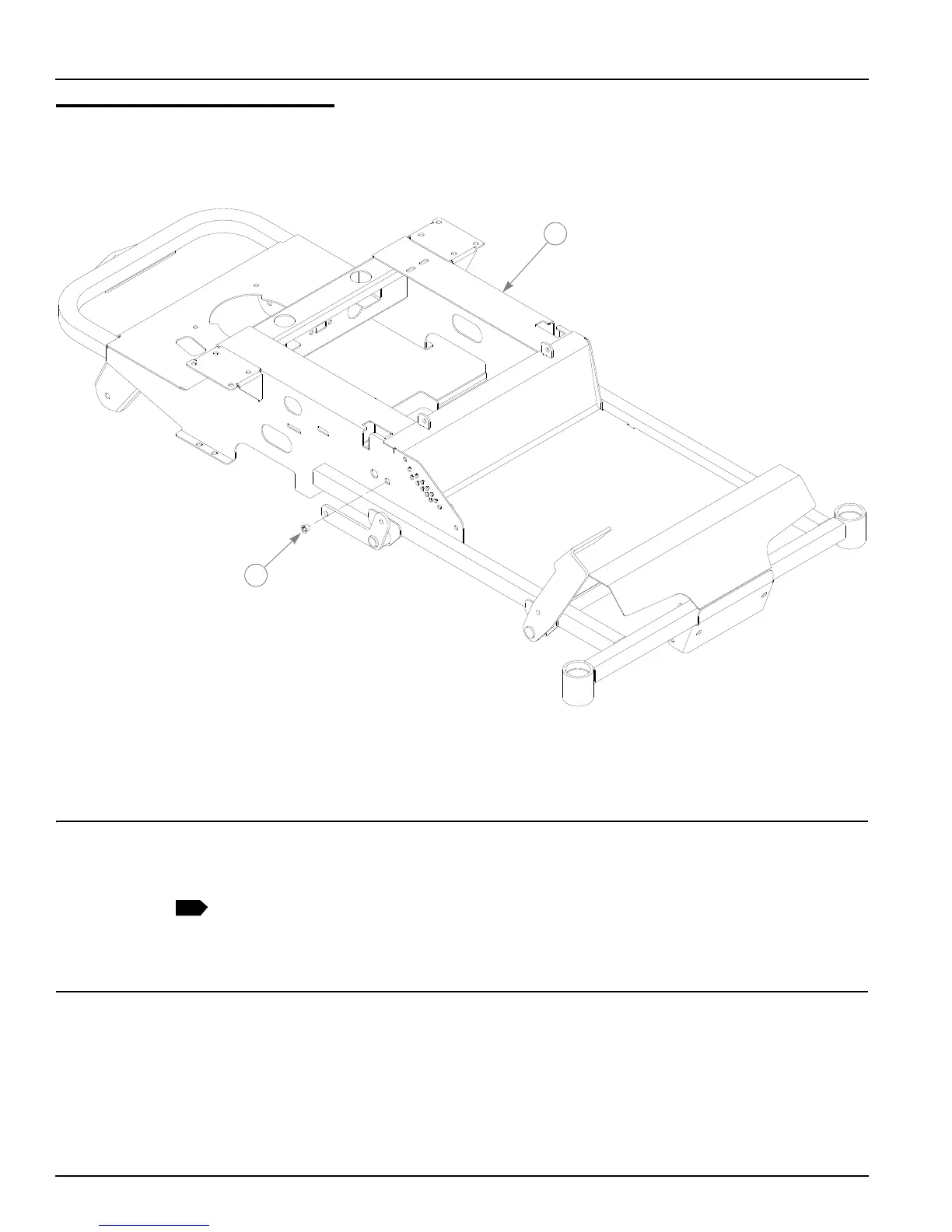

Rivet Nut Installation
NOTES:
1.
Service part includes
Item 2 and decal
s (Page 8-2)
ITEM
NO.
SERVICE
PA
R
T
N
O
.
MFG
. P
AR
T
NO.
QTY
.
DESCRIPTION
1
549873
1
10073
1
42" SPORT FRAME
549881
1
10099
1
48" SPORT FRAME
2
808485
808485
1
RIVET NUT, 5/16-18 THREAD
2
1
1
9
11
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1
7
General Information
7
Chapter 2
10
Rivet Nut Installation
10
Chapter 3
12
Battery Installation
12
Deck Lift Assembly
14
Hydraulic System Installation
16
Steering Sub-Assembly
18
Steering Assembly
19
Park Brake Assembly
21
Chapter 4
24
Briggs and Stratton 17.5 & 21 HP Engine Installation
24
Fuel System Installation
26
Instrument Panel Installation
28
Electrical Schematic - Briggs and Stratton (601676)
30
Chapter 5
32
Front Wheel Assembly
32
Front Wheel Breakdown - 768044
34
Drive Wheel Assembly Installation
35
Anti-Rollover Wheel Assembly
36
Chapter 6
38
48" Side Discharge Deck Assembly
38
48" Side Discharge Deck Pulley Assembly
40
42" Side Discharge Deck Assembly
42
42" Side Discharge Deck Pulley Assembly
44
Spindle Assembly-601804
46
Deck Belt Routing and Tensioning
47
Chapter 7
48
Seat Installation
48
Deck Installation
50
48" Deck Belt Routing and Tensioning
52
42" Deck Belt Routing and Tensioning
53
Tractor Decals
55
Side Discharge Deck Decals
55
Chapter 8
56
Tractor Decals
56
48" Side Discharge Deck Decals
58
42" Side Discharge Deck Decals
59
Chapter 9
63
Assembly Pictures and Aids
63
General Information for All Models
63
Wire Harness and Cable Routings
63
Fuel Lines
65
Maintenance & Adjustment Safety
66
Safe Maintenance & Adjustment Practices
66
Using a Ramp
67
Safety and Instruction Decals
67
Maintenance
70
Introduction
71
Torque Values
72
Tires
72
Lubrication
72
Electrical System
72
Access to Hydro-Gear EZT Transmissions
74
Hydraulic System
74
Fuel System
75
Engine Oil and Filter
76
Belt Replacement
77
Deck Belt Replacement
78
Transaxle Drive Belt Replacement
78
Mower Blade Maintenance
79
Mower Blade Removal
81
Adjustment
82
Introduction
82
Control Lever Adjustment
82
Steering Linkage
82
Control Lever Neutral Adjustment
83
Steering Dampener
85
Park Brake Spring Adjustment
85
Hydraulic Pump Belt Adjustment
86
Deck Drive Belt Adjustment
86
Engine Rpm Setting
87
Deck Leveling and Height Adjustment
87
Index
89
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HUSTLER 929125 and is the answer not in the manual?
Ask a question
HUSTLER 929125 Specifications
General
Brand
HUSTLER
Model
929125
Category
Lawn Mower
Language
English
