Maintenance
FIG. 15
8
1
11
11
10
10
6
7
7
16
2
9
4
9
5
12
14
14
13
Viewed from top of unit
1 Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Gauge Wheel Bearing Zerks (2)
8. Engine Oil Filter
9. Deck Lift Pivot Zerks (4)
10. Park Brake Switch (2)
11. Drive Tire
12. Deck Belt
13. Pump Belt
14. Blades
15. Engine Air Intake Screen
16. Front Gauge Wheel Tires

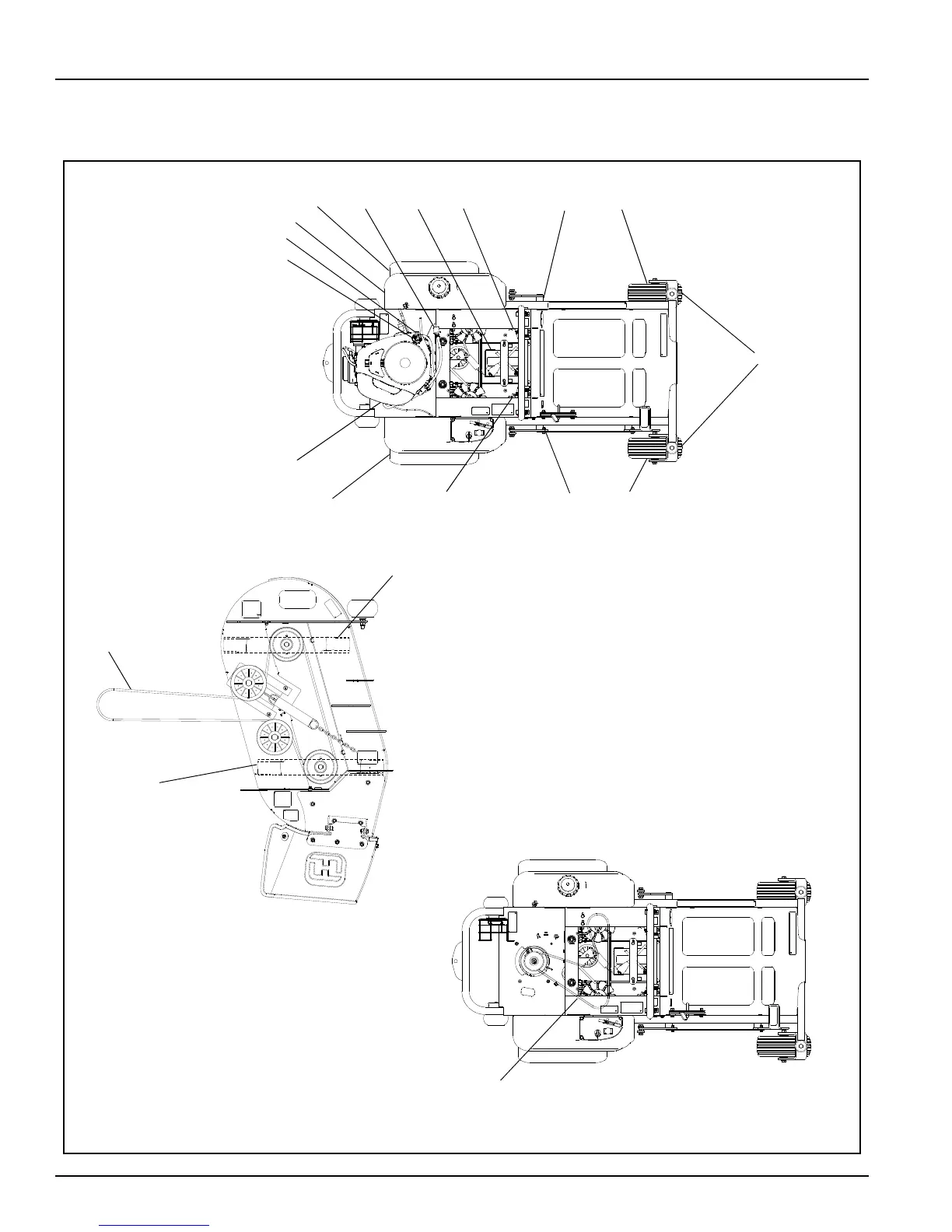

Maintenance Locator Chart
Viewed from bottom of unit
Viewed from top of unit
