8-4
110
907 01/09

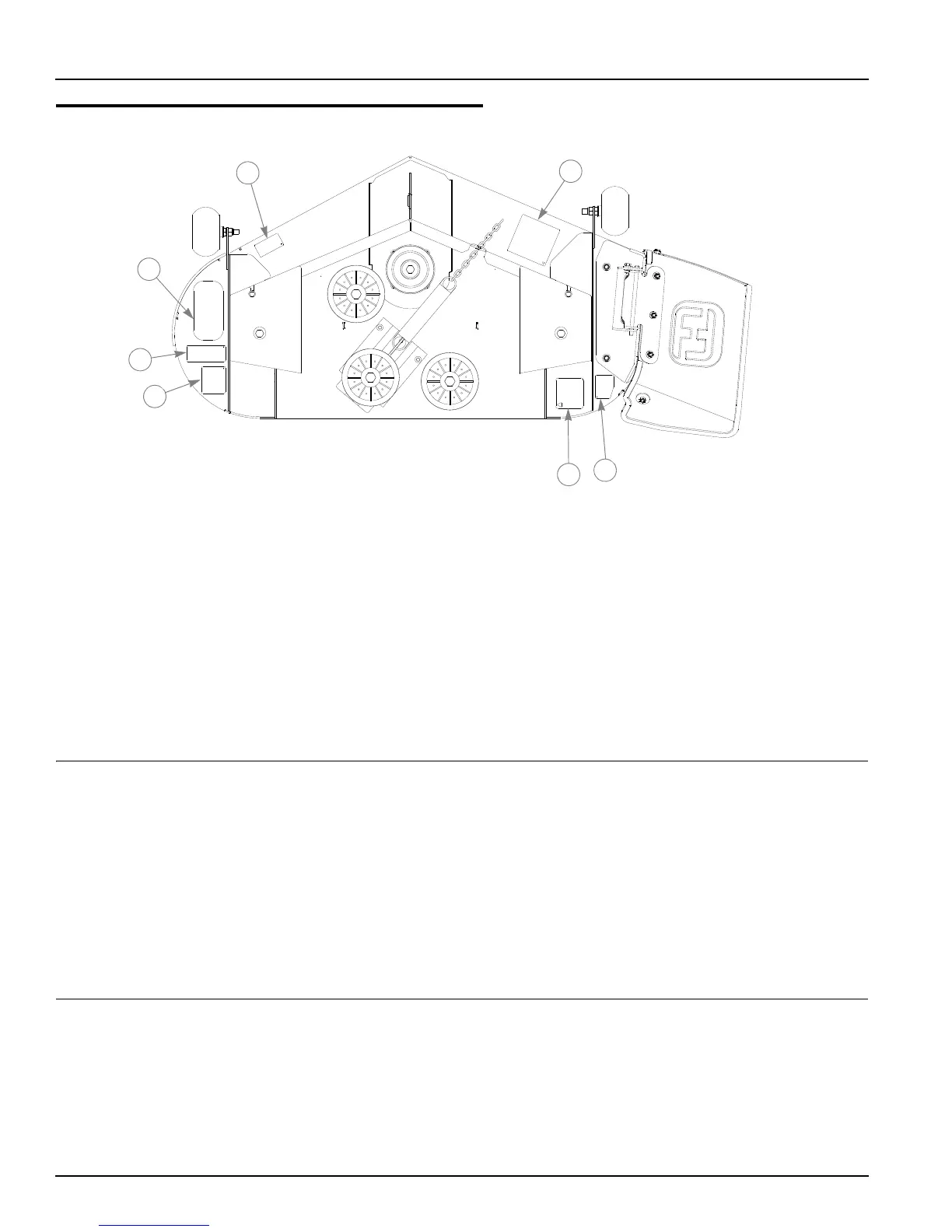

48" Side Discharge Deck Decals
NOTES:
ITEM
NO.
SERVICE
PA
R
T
N
O
.
MFG
.
PA
R
T
N
O
.
QTY
.
DESCRIPTION
1
793976
793976
1
48 DECK ID DECAL
2
794503
794503
1
STEP TREAD DECAL
3
601837
601837
1
DECK DANGERS DECAL
4
601817
601817
1
DISCHARGE DEC
AL
5
601892
601892
1
DECAL, THROWN OBJECTS, LARGE
6
601816
601816
1
DECAL, DECK DANGERS, SMALL
7
781419CE
781419CE
1
DECAL,Z DECK BEL
T RTG C
1
2
3
4
5
6
7
57
