Hypertherm Duramax Series User Manual

Torch seTup
2-14 Duramax Retrofit Torch Operator Manual

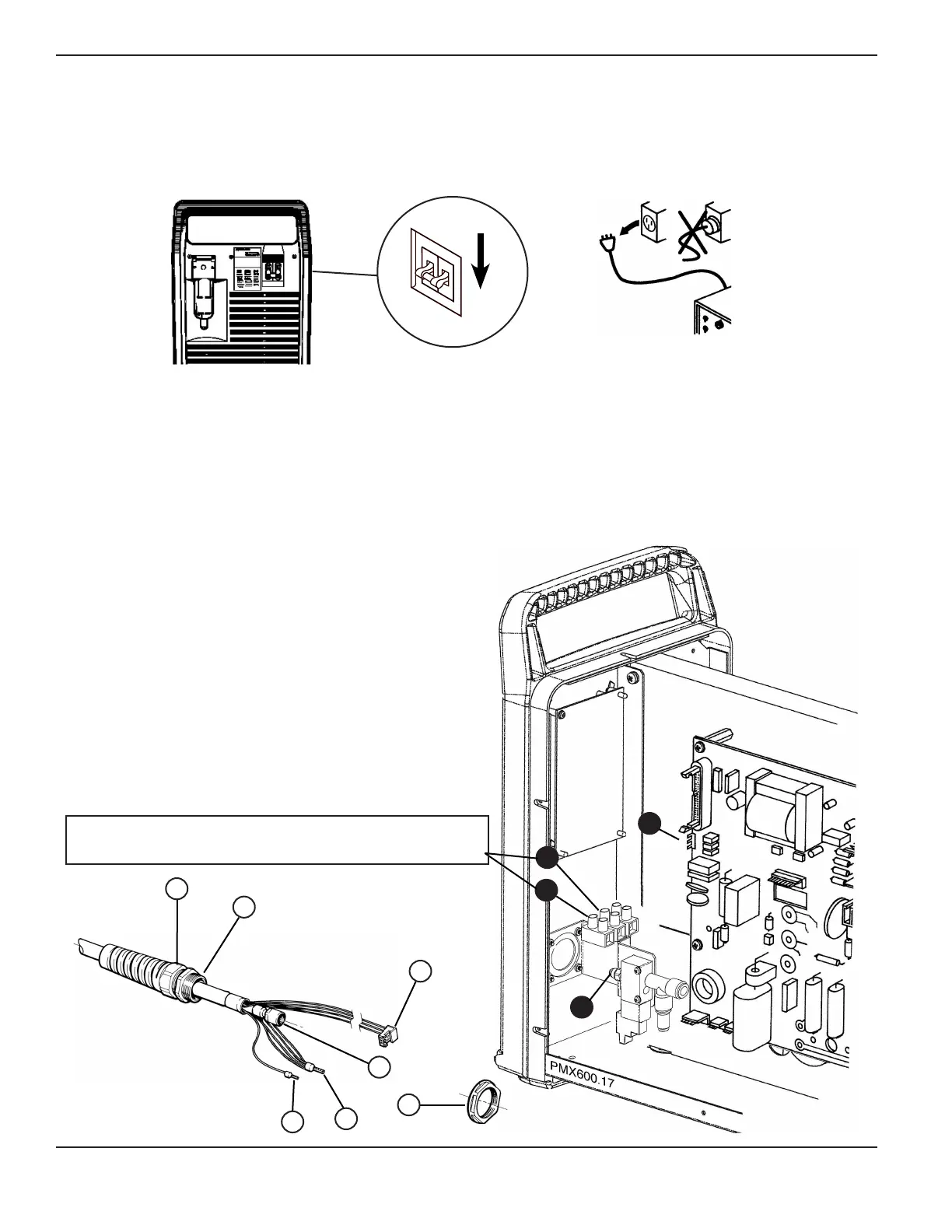

Torches without a quick disconnect connector - Powermax600 CE
1. Turn OFF the power switch and remove the power cord from the power receptacle.
2. Disconnect the gas supply hose from the power supply.
Caution: Do not tighten the strain relief collar (4) onto the torch lead until the gas fitting (3) is tight, or the gas
connection may leak.
3. Install the strain relief (1) and secure with nut (2).
4. Connect and tighten the gas fitting (3).
5. Tighten the strain relief collar (4) onto the lead.
3
5
6
2
7
1
3
5
6
4
7
Caution: These are high current connections. Proper
torque is critical.
6. Connect the electrical connections (5), (6) and (7). Tighten
the terminal block screws to 12 kg cm (10 in.-lb).
