MAINTENANCE AND pArTs
4-4 Duramax Retrofit Torch Operator Manual
Hand torch replacement parts – Duramax HRT
2
Part number Description
005252 Trigger start switch
058519 O-ring
075504 Pilot arc wire terminal screw
075714 Handle screws, #4 x 1/2 slotted TORX pan head, S/B
128926* Kit: Quick disconnect repair
228954 Kit: Duramax 75°/HRT
2
torch handle replacement
228719 Kit: Duramax 75°/HRT
2
cap-sensor switch replacement
228721 Kit: Safety trigger with spring replacement
228924* Kit: HRT
2
lead replacement, 7.6 m (25 ft)
228925* Kit: HRT
2
lead replacement, 15.2 m (50 ft)
228926** Kit: HRT
2
lead replacement, 7.6 m (25 ft) – without quick disconnect
228927** Kit: HRT
2
lead replacement, 15.2 m (50 ft) – without quick disconnect
228916* Kit: HRT
2
torch assembly with 7.6 m (25 ft) lead
228917* Kit: HRT
2
torch assembly with 15.2 m (50 ft) lead
228918** Kit: HRT
2
torch assembly with 7.6 m (25 ft) lead – without quick disconnect
228919** Kit: HRT
2
torch assembly with 15.2 m (50 ft) lead – without quick disconnect
228950 Kit: HRT
2
torch main body replacement, coupler with 12.7 mm (1/2 in.) threads
The HRT
2
torch assembly can be replaced, or individual component parts can be replaced. The HRT
2
torch assembly
includes a variety of Duramax consumables.

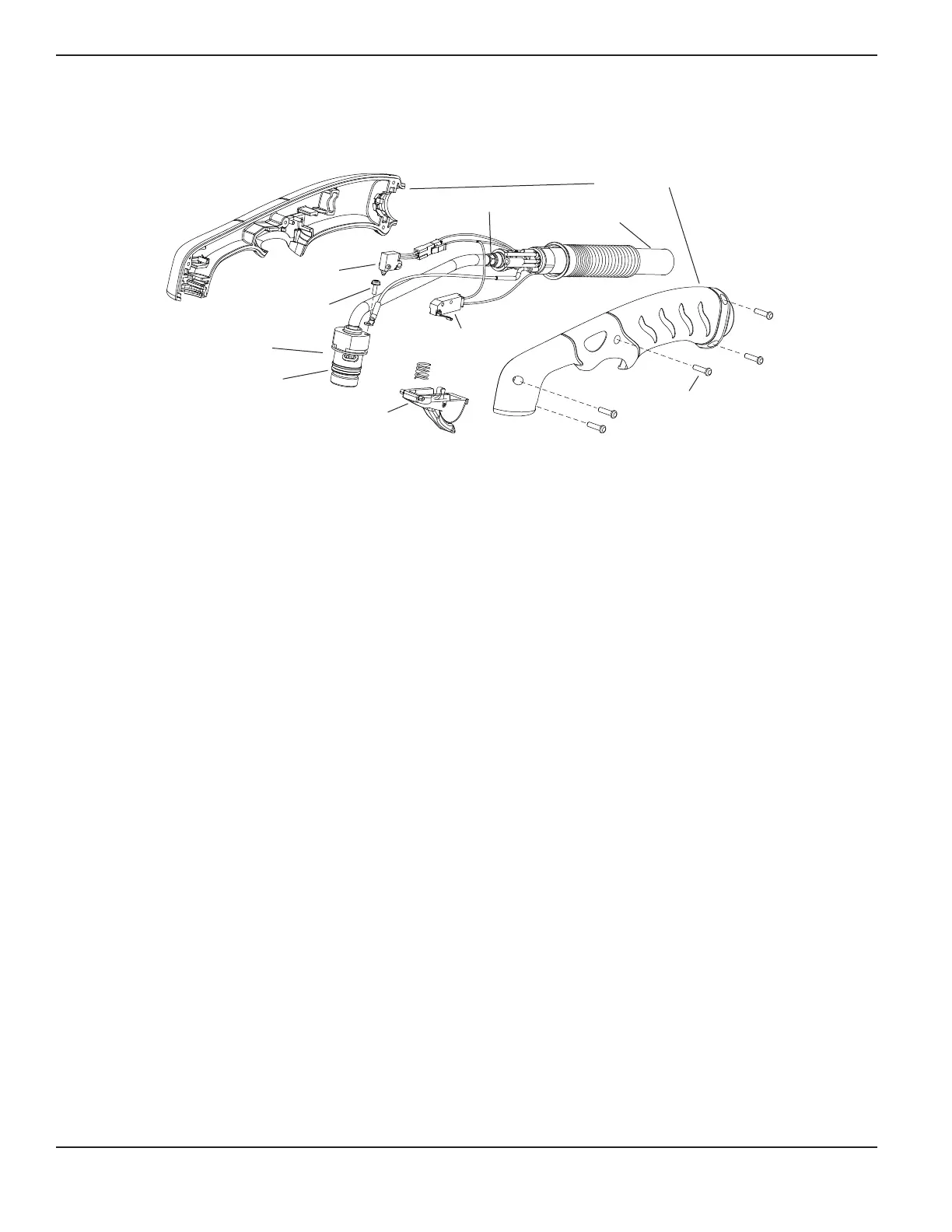

Torch handle
Torch lead
Handle
screws
Safety trigger
and spring
O-ring
Torch body
Cap-sensor
switch
Pilot arc wire
terminal screw
Trigger start
switch
* For use with Powermax600, Powermax800, Powermax900, MAX42, and MAX43 CSA systems.
** For use with Powermax600 CE systems.
Coupler
