3-1
SECTION 3 POWER TRAIN SYSTEM
GROUP 1 STRUCTURE AND OPERATION
30
33
34
35
37
36
38
31
19
20
18
14
17
16
15
13
21
22
28
27
26
25
24
23
3
2
1
31
32
29
12
11
9
8
7
6
5
4
10
BRJ7DU101

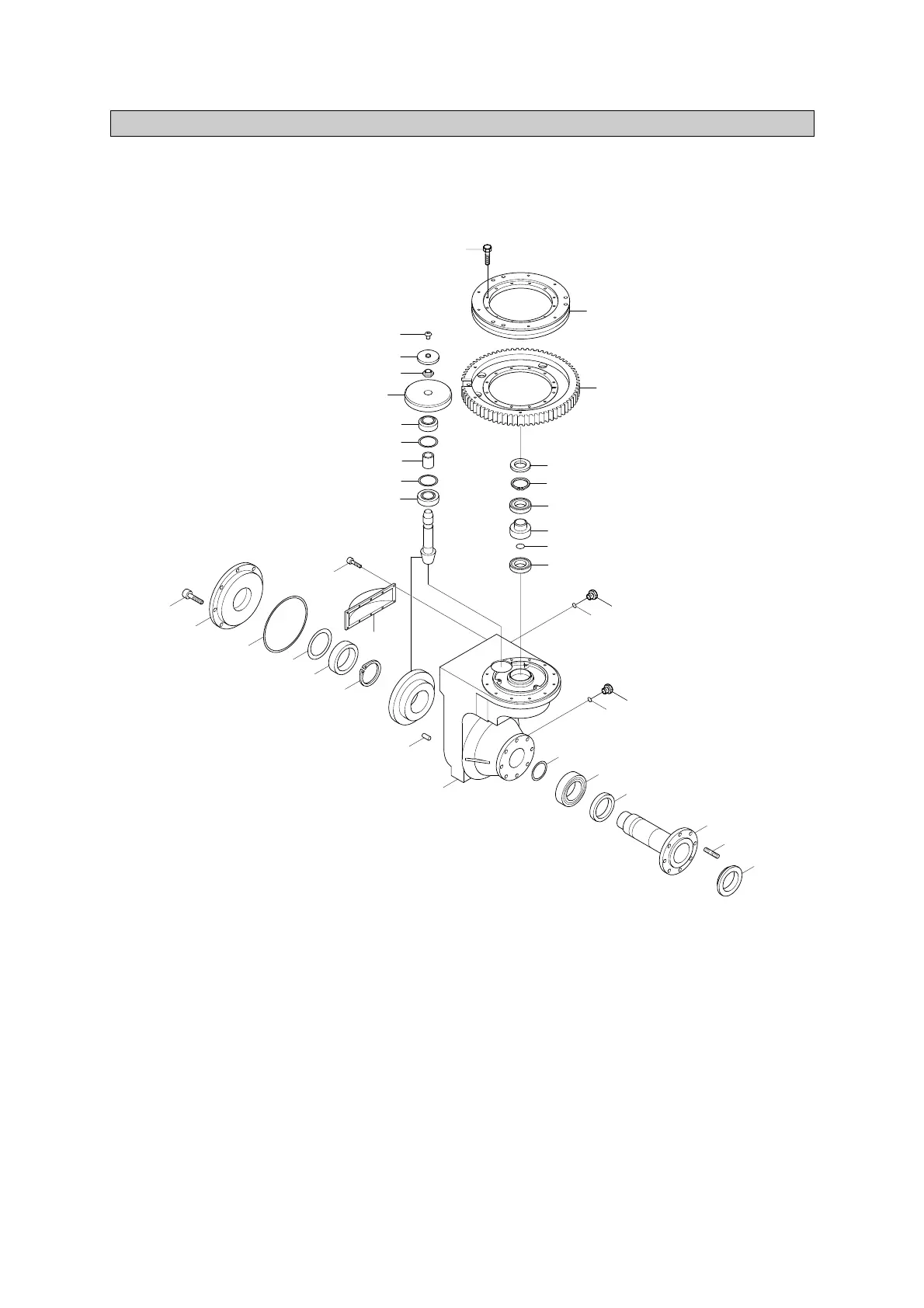

1. DRIVE UNIT
STRUCTURE
10/13BOP-7
1)
(1)
1 Hexagon screw
2 Turntable bearing
3 Steering gear
4 Breather valve
5 Protection cap
6 Hexagon nut
7 Spur gear
8 Taper roller bearing
9 Shim
10 Spacer
11 Shim
12 Taper roller bearing
13 Bevel gear set
14 Slotted pin
15 Retaining ring
16 Taper roller bearing
17 Shim
18 O-ring
19 Bearing cover
20 Cap screw
21 Cover
22 Hex screw
23 Shaft sealing ring
24 Retaining ring
25 Bearing ball
26 Input pinion
27 Protection cap
28 Bearing ball
29 Housing
30 Shim
31 Seal ring
32 Plug
33 Taper roller bearing
34 Taper roller bearing
35 Wheel shaft
36 Wheel bolt
37 Wheel shaft protection
38 Plug
