2. SPECIFICATION
GROUP 1 STRUCTURE AND FUNCTION
SECTION 4 BRAKE SYSTEM
1. STRUCTURE
1
2
3
4
5
6
5
5

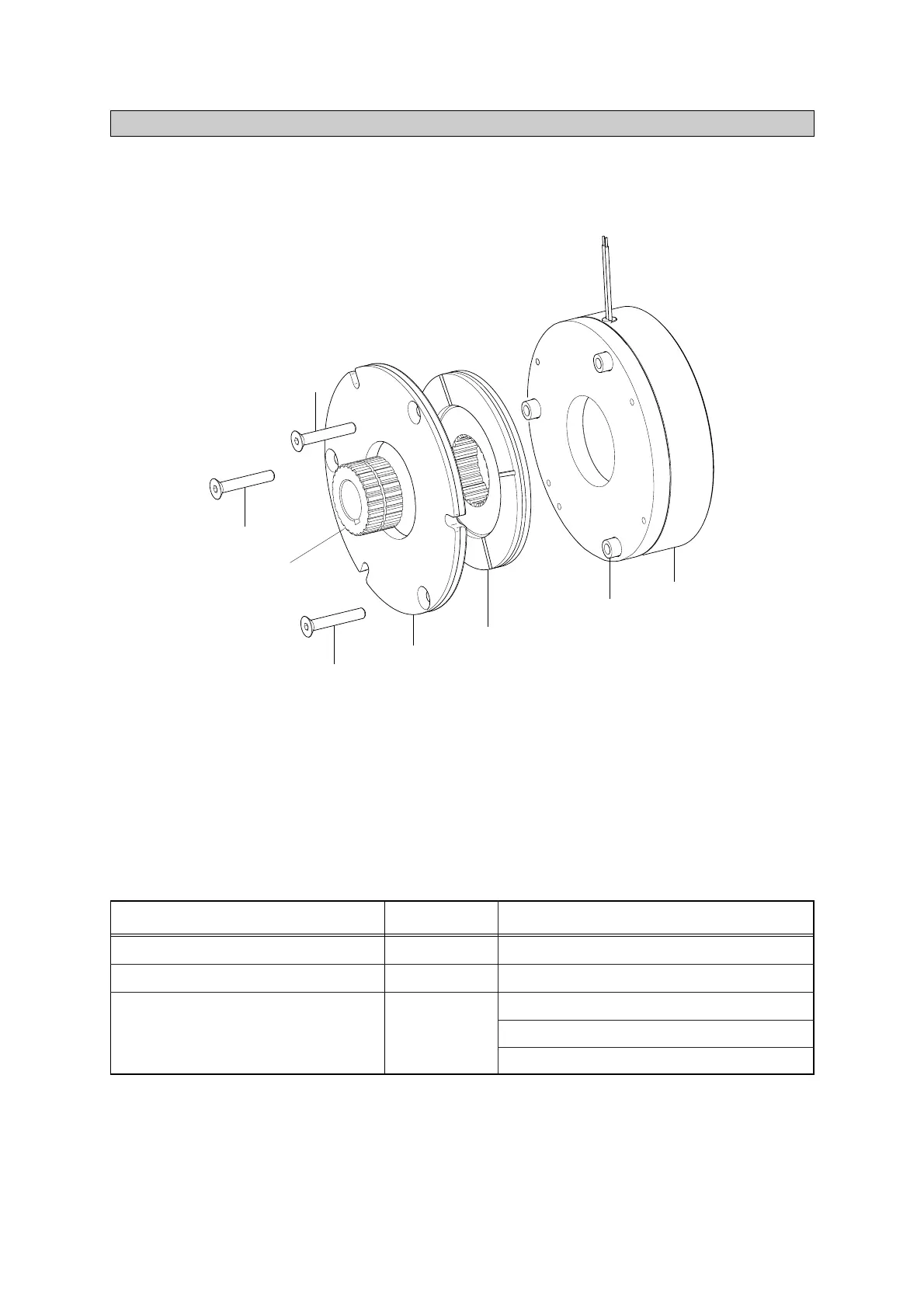

10BOP7EB01
1 Inductor
2 Friction disc
3 Hub
4 Flange
5 Screw
6 Adjusting spacer
Description
Nominal torque(Standard version)
Nominal airgap(S+0.1/-0.5)
Nominal torque
70
0.35
9.1(M6 on
132 mm)
22(M8 on 145 mm)
9.1(M6 on 168 mm)
SpecificationUnit
N.m
mm
N.m
