5-3

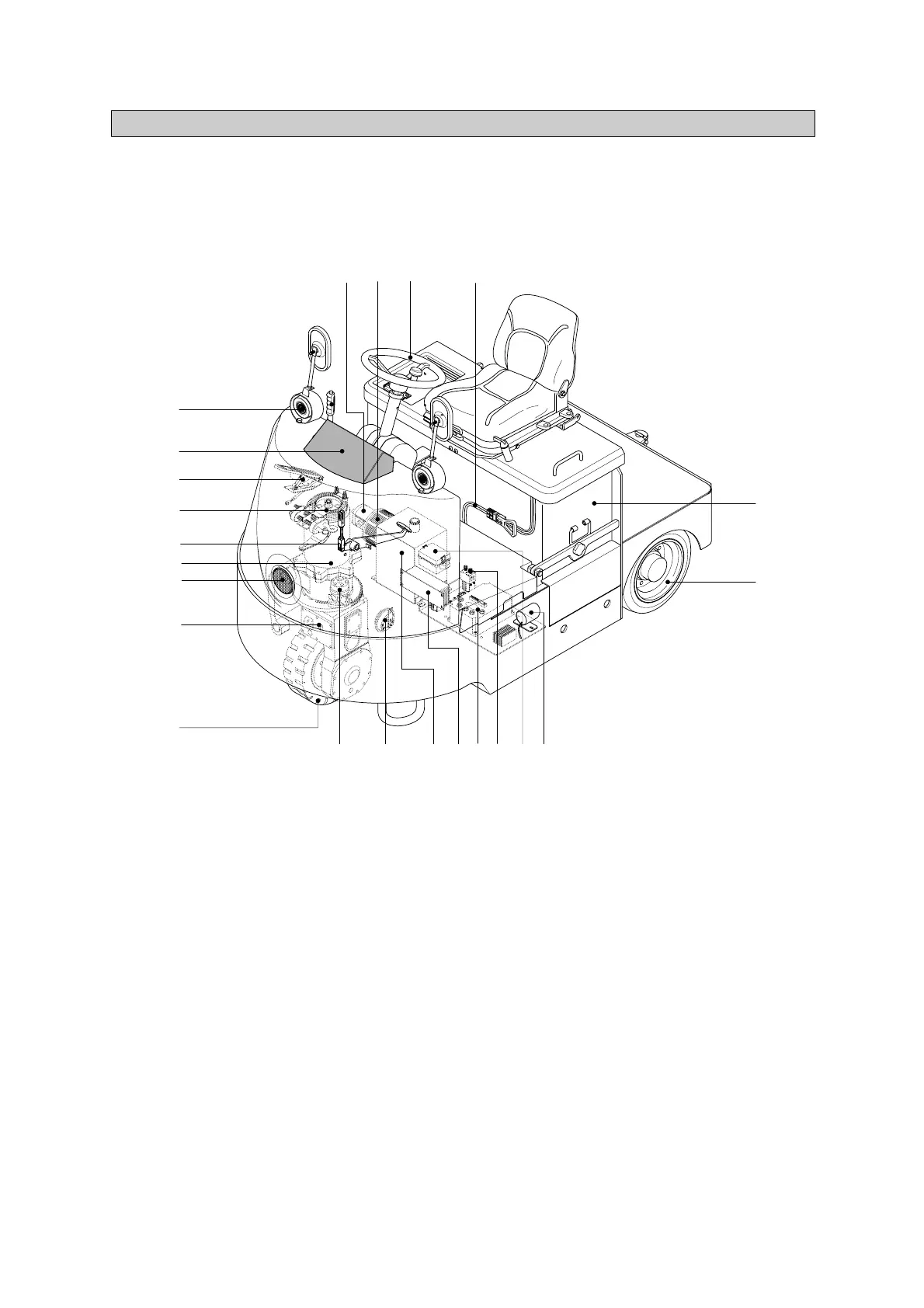

3. MAJOR COMPONENT LOCATIONS
Use the illustration below to locate components included in the PM procedures.
1 Head lamp
2 Horn
3 Front wheel
4 Steering wheel
5 Fuse box
6 Buzzer
7 Rear wheel
8 Battery
9 Hydraulic oil tank
10 Accelerator
11 Brake system
12 Flasher lamp
13 Monitor panel
14 Hydraulic motor
15 DC-DC converter
16 Power steering pump
17 Steering hyd motor
18 Brake pedal
19 Drive motor
20 Harness
21 Controller
22 Contactor
23 Drive unit
1
2
3
4
5
7
8
F1
B-
M-
B+
F2
9
6
10
11
12
13
14
15
16 17
19
18
20
21 22
23
BP157OM113
