Your vehicle at a glance
42

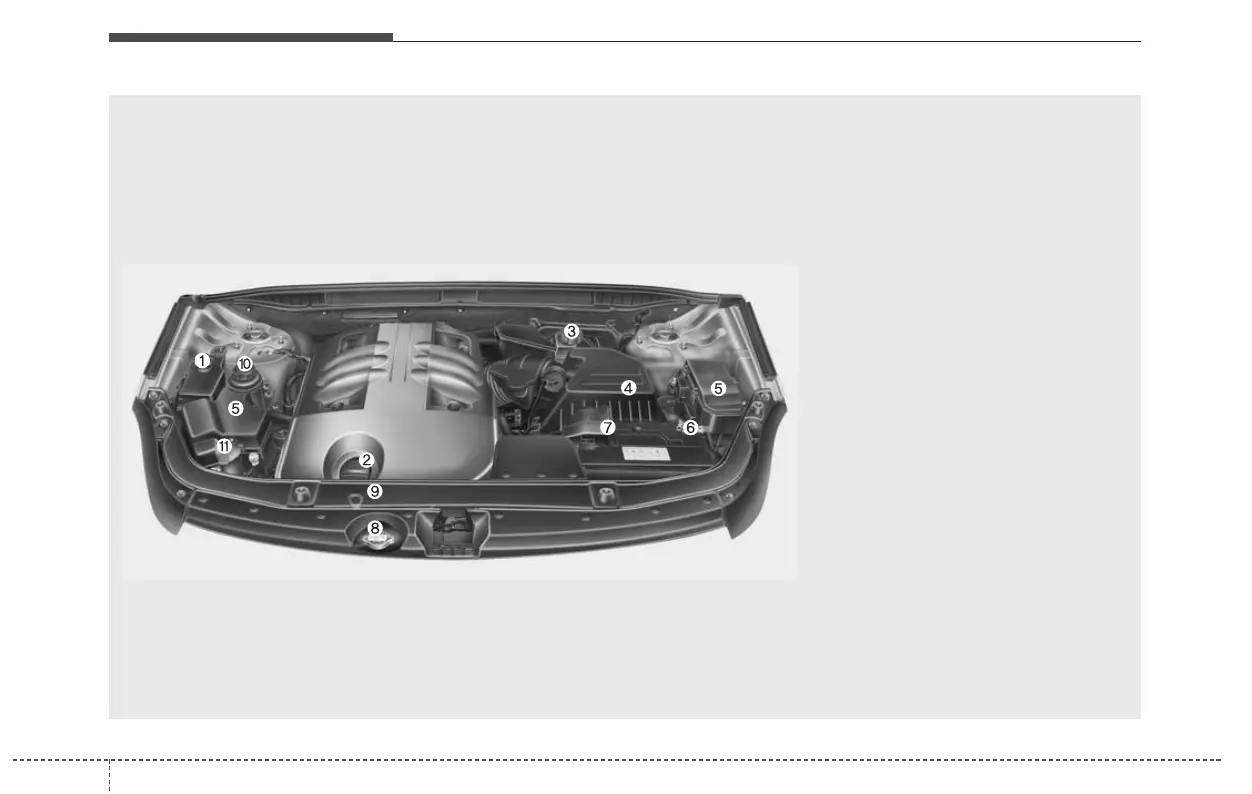

ENGINE COMPARTMENT
1. Engine coolant reservoir...................7-16
2. Engine oil filler cap ...........................7-14
3. Brake fluid reservoir..........................7-18
4. Air cleaner.........................................7-21
5. Fuse box ...........................................7-45
6. Negative battery terminal..................7-27
7. Positive battery terminal ...................7-27
8. Radiator cap .....................................7-17
9. Engine oil dipstick .............................7-14
10. Power steering fluid reservoir .........7-19
11. Windshield washer fluid reservoir ...7-20
OEN078059
B030000AEN-EU
* The actual engine room in the vehicle may differ from the illustration.
