553
Driving your vehicle
E140700AEN

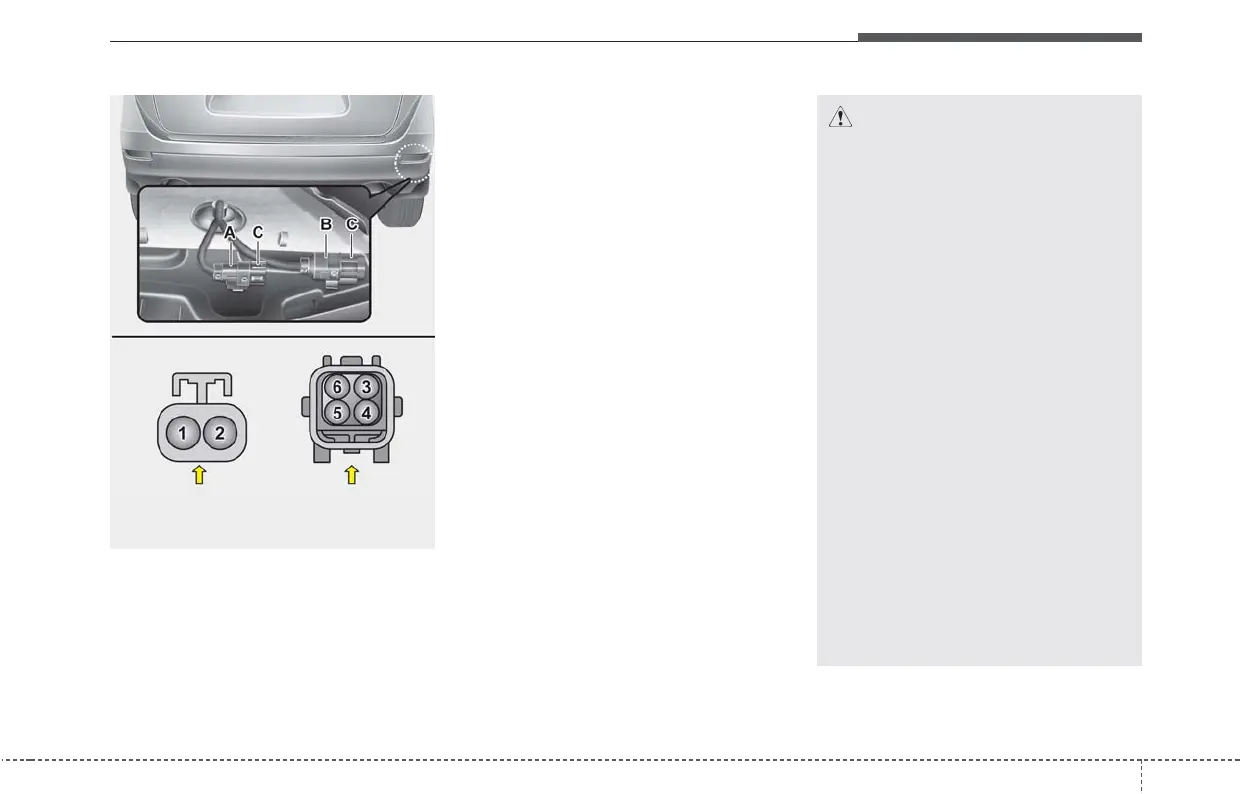

Trailer connector
A : Power connector
B : Signal connector
C : Connector Cap
1 : Power supply for trailer lamp (30A/B+)
2 : Ground
3 : Signal (Right turn signal light)
4 : Signal (Tail light)
5 : Signal (Left turn signal light)
6 : Signal (Stop light)
The power connector (A) that is connect-
ed with a controller to operate the trailer
lamp and the connector (B) used to judge
whether the vehicle lamp operates prop-
erly is installed in the right bottom back of
the vehicle.
You can use it, when needed.
OEN066017N
CAUTION
• The rear parking assist system
connectors are installed in the
left bottom back of vehicle. Do
not touch the connectors.
• When using the trailer pack, open
the cap(C) and then connect it to
the connector. After using the
connector, disconnect it and
always put the cap(C) back on the
corresponding connector. If the
cap is not replaced, foreign ele-
ments such as dust or liquid may
damage the vehicle.
• You must use a separate con-
troller to use the power connec-
tor(A) to operate the trailer lamp.
• The connector B is only for the
vehicle lamp. Therefore, do not
use the connector B to operate
the trailer lamp. It may blow out
the fuse and damage the vehicle.
• While the connector is connected
to the trailer, make sure the con-
nector wire does not go near the
muffler. The heat from the muffler
may damage the wire.
CLIP CONNECTING PART
CONNECTOR-A CONNECTOR-B
CLIP CONNECTING PART
