Maintenance
767

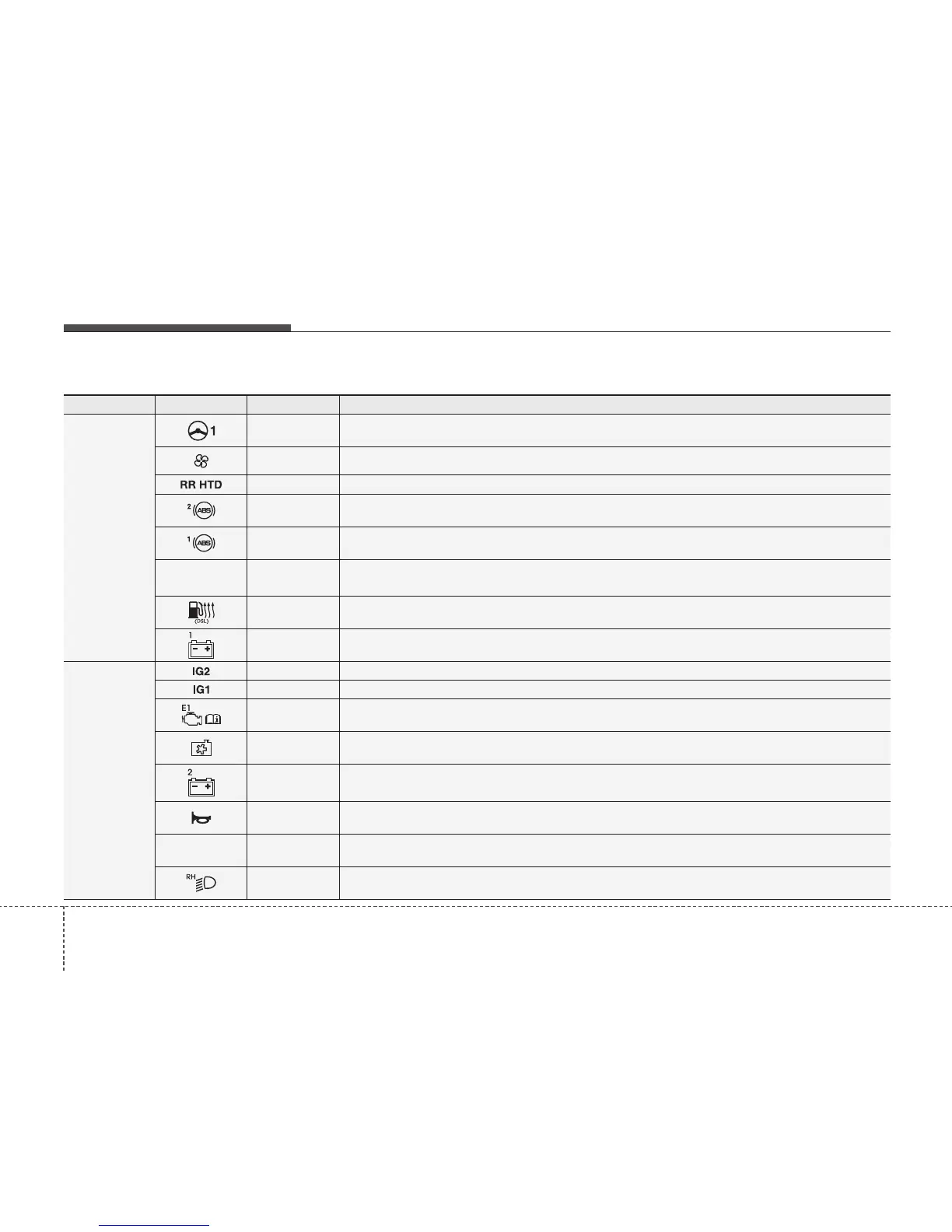

Description Symbol Fuse rating Protected component
MULTI FUSE
80A EPS Control Module
40A RLY.10 (Blower Relay)
40A I/P Junction Box (Rear Defogger Relay)
40A ABS Control Module, ESP Control Module
40A ABS Control Module, ESP Control Module, Multipurpose Check Connector
ALT (GSL)
ALT (DSL)
125A (GSL)
150A (DSL)
Alternator, Diesel Box (GLOW 80A, PTC 1/2/3 50A),
E/R Fuse & Relay Box (Multi Fuse F1~F5, Fuse F20)
30A Diesel : RLY.12 (Fuel Filter Heater Relay)
50A I/P Junction Box (Power Connector Fuse : F35/F36, Fuse : F12~F15, Tail Lamp Relay)
FUSE
40A RLY.7 (Start Relay), Ignition Switch
40A Ignition Switch
30A RLY.1 (Engine Control Relay), Fuse F25
40A RLY.3 (Cooling Fan (Low) Relay), RLY.8 (Cooling Fan (High) Relay)
50A
I/P Junction Box (Relay : Power Window, Hazard, Door Lock/Unlock, Tail Gate Unlock,
Fuse : F23~F25, F31, F32)
10A RLY.5 (Horn Relay)
F/PUMP
(GSL)
15A Gasoline: RLY.2 (Fuel Pump Relay)
10A Head Lamp RH
Engine compartment main fuse panel
