Annotations
1) Chassis cab weight includes weight of oil, fuel, coolant and spare tire carrier & bracket, spare tire but exclude standard tool set.
2) Some of the equipment illustrated or described in this catalogue may not be supplied as standard equipment
and may be available at extra cost.
3) Hyundai Motor Co. reserves the right to change specifications and equipment without prior notice.

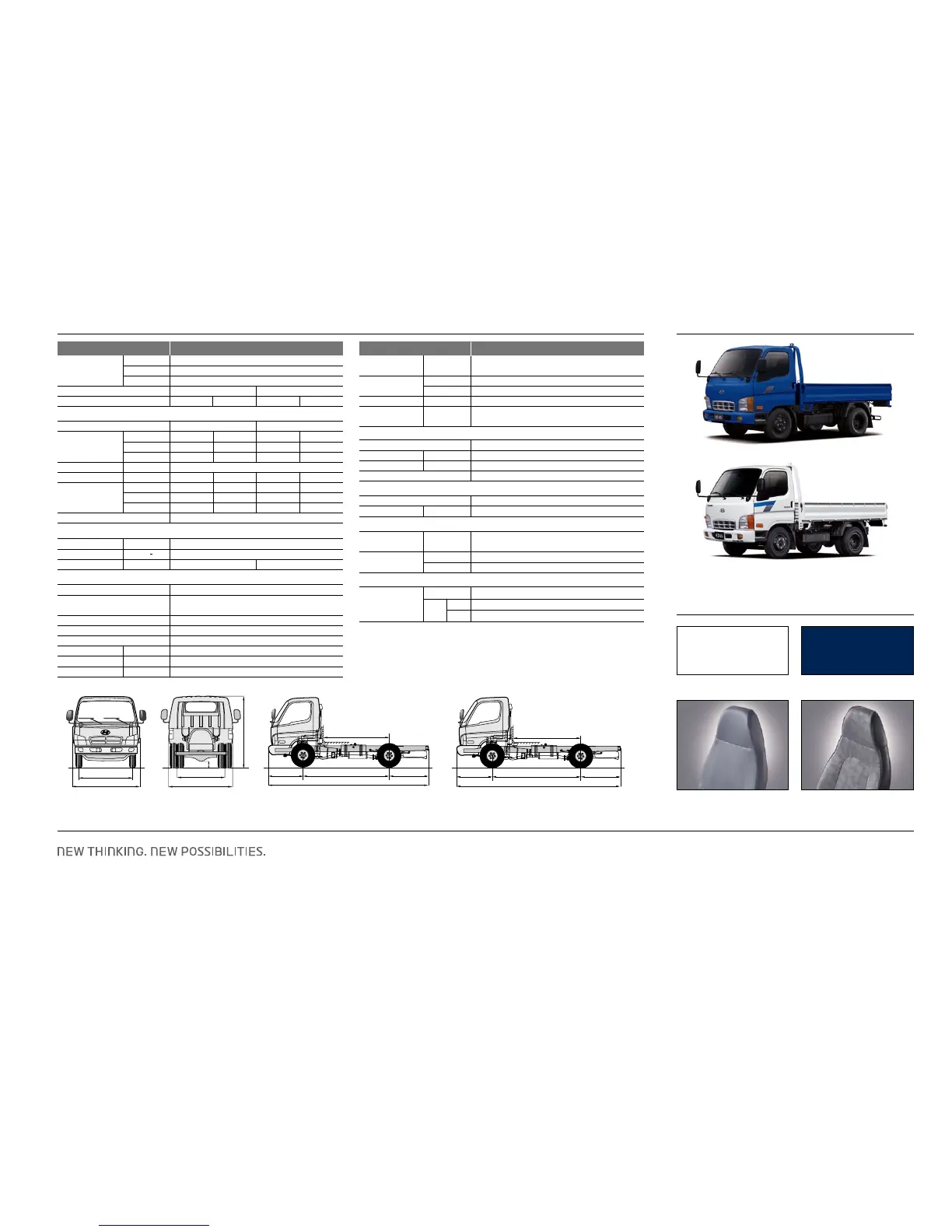

HD45 Narrow Cab, Short Wheelbase
Short Wheelbase Long Wheelbase
SPECIFICATIONS
Models HD 45
Type Narrow
Cab Width 1,760
Tilting Mechanism Tilting Type
Wheel Base Short Long
Vehicle Type Cargo C/cab Cargo C/cab
Leather Cloth
LINE-UP
BODY COLOR & INTERIOR TRIM
Models HD 45
Clutch
Facing Size
240
(Outside diameter, mm)
Transmission
Model RT-10 (Reinforced)
Type
Floor Shift, 5 Speed Manual (5 Forward & 1 Reverse)
Fuel tank Capacity 65
Main side rail
183 X 65 X 6t
Frame
(H
X
W
X
t, mm)
Dimensions (mm) - Approximate
Wheel Base 2,550 2,810
Length 4,955 4,885 5,240 5,145
Overall Width 1,885 1,870 1,885 1,870
height 2,230 2,180 2,230 2,180
Wheel Tread Front / Rear 1,475 / 1,435
Overhang Front / Rear 1,075 / 1,330 1,075 / 1,260 1,075 / 1,335 1,075 / 1,260
Length 3,175 - 3,460 -
Deck Size Width 1,790 - 1,790 -
height 400 - 400 -
Min. Ground Clearance 190
Calculated Performance
Max. Speed km/h 114
Max. Gradeability tan0 0.304
Min. Turning Radius m 5.4 5.9
Engine
Model D4BB
Type
Natural Aspiration, 4 Stroke Cycle, Water-Cooled,
Indirect-injection Diesel Engine
Number of Cylinder 4
Piston Displacement (cc) 2,607
Bore x Stroke (mm) 91.1 x 100
Max. Power (ps/rpm) 80 / 4,000
Max. Torque (kg.m / rpm) 17 / 2,200
Emission Level Emission Euro I
Axle
Model D2H
Type Front / Rear Reverse Eliot Type I Beam / Full Floating
Capacity (kg) Front / Rear 2,300 / 4,100
Final Reduction Gear Ratio 5.714
Tire & Wheel
Type Rear Dual
Tire Front / Rear 6.50
X 16 - 10 PR (OPT: 6.50R16-10PR)
Brake
Service Bake
Front / Rear Drum Type, Ø320
X
75
X
10 mm
(Lining Size, mm)
Parking Brake
Type Integral expanding type on propeller shaft at rear of transmission
Size CTR Parking, Ø180 X 35 X 5.5mm
Suspension
Spring Size Front 1,200 X 70 X 10t-2, 11t-2
(LengthXWidthXThickness
Rear
Main 1,200
X 70 X 10t-2, 11t-2
Number of leaves)
Helper 990 X 70 X 11t-3
1,075
2,550
*2,010
1,260
4,885
1,870
1,435
190
2,180
1,760
1,475
1,075
2,810
*2,270
1,260
5,145
NW (Noble White) BK (Blue)
HD45 Narrow Cab, Long Wheelbase
Hyundai Motor Company
www.hyundai.com
GEN. LHD 1104 ENG. WD
-
SH
Copyright © 2011 Hyundai Motor Company. All Rights Reserved.
People’s expectation toward individual mobility requires more than just a convenient means of transportation. The old understanding of cars has become
outdated. A car represents individuals’ lifestyles, and it became an integral part of their lives. At the same time, the automobile industry has experienced
seismic change. Hyundai Motor Company has grown rapidly to become one of the largest automakers, backed by world class production capability and
superior quality. We have now reached a point where we need a qualitative approach to bring bigger ideas and relevant solutions to our customers.
This is an opportunity to move forward and we have developed a new brand slogan that encapsulates our willingness to take a big leap. Led by our new
slogan and the new thinking underlying it, we will become a company that keeps challenging itself to unlock new possibilities for people and the planet.
* Cab to Axle
