Hyundai HY4TR26 User Manual

10
3. ASSEMBLY
WARNING
To prevent an accidental start that could cause serious personal injury, always
disconnect the engine spark plug HT lead from the spark plug when assembling
parts.
WARNING
Never install, remove or adjust any attachments while power head is running.
Failure to stop the engine can cause serious personal injury.

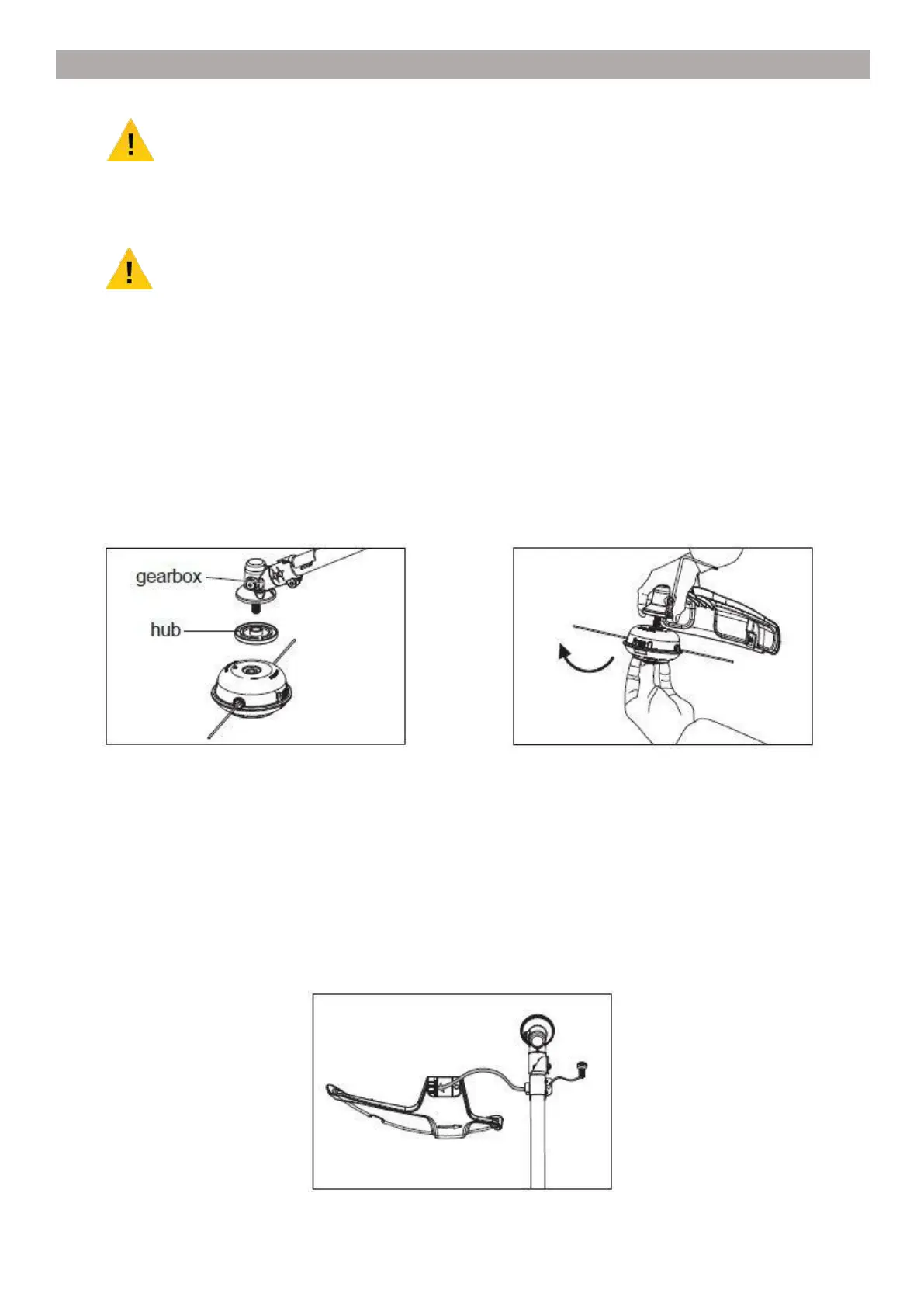

2.0 Rotate the hub slowly to align the hole in the hub to the hole in the gearbox.
2.1 Lock the hub firmly using the screwdriver provided by aligning and insert through the
two holes as shown in the picture.
2.2 With the hub locked, screw the spool onto the gearbox in a clockwise direction until
it cannot rotate any further.
2.3 Remove the screw from the cutting head protection guard.
2.4 Insert the left tab in to the slot on the protection guard.
2.5 Align the screw hole in the mounting bracket with the screw hole into the
protection guard.
2.6 Tighten the screw through the mounting bracket and into the protection guard using
the screwdriver provided.

Hyundai HY4TR26 Specifications

General

Engine Type	4 stroke, Air cooled
Engine Displacement	26.5cc
Fuel Type	Unleaded Petrol
Fuel Tank Capacity	280ml
Oil Type	4 Stroke Semi-Synthetic SAE 10W30
Oil Capacity	60ml
Cutting Diameter	450mm
Cutter Head	Bump Feed
Trimmer Line Diameter	2.5mm
Noise Level	104dB

Weight and Dimensions

Net Weight	5Kg
