Hyundai HY4TR26 User Manual

12

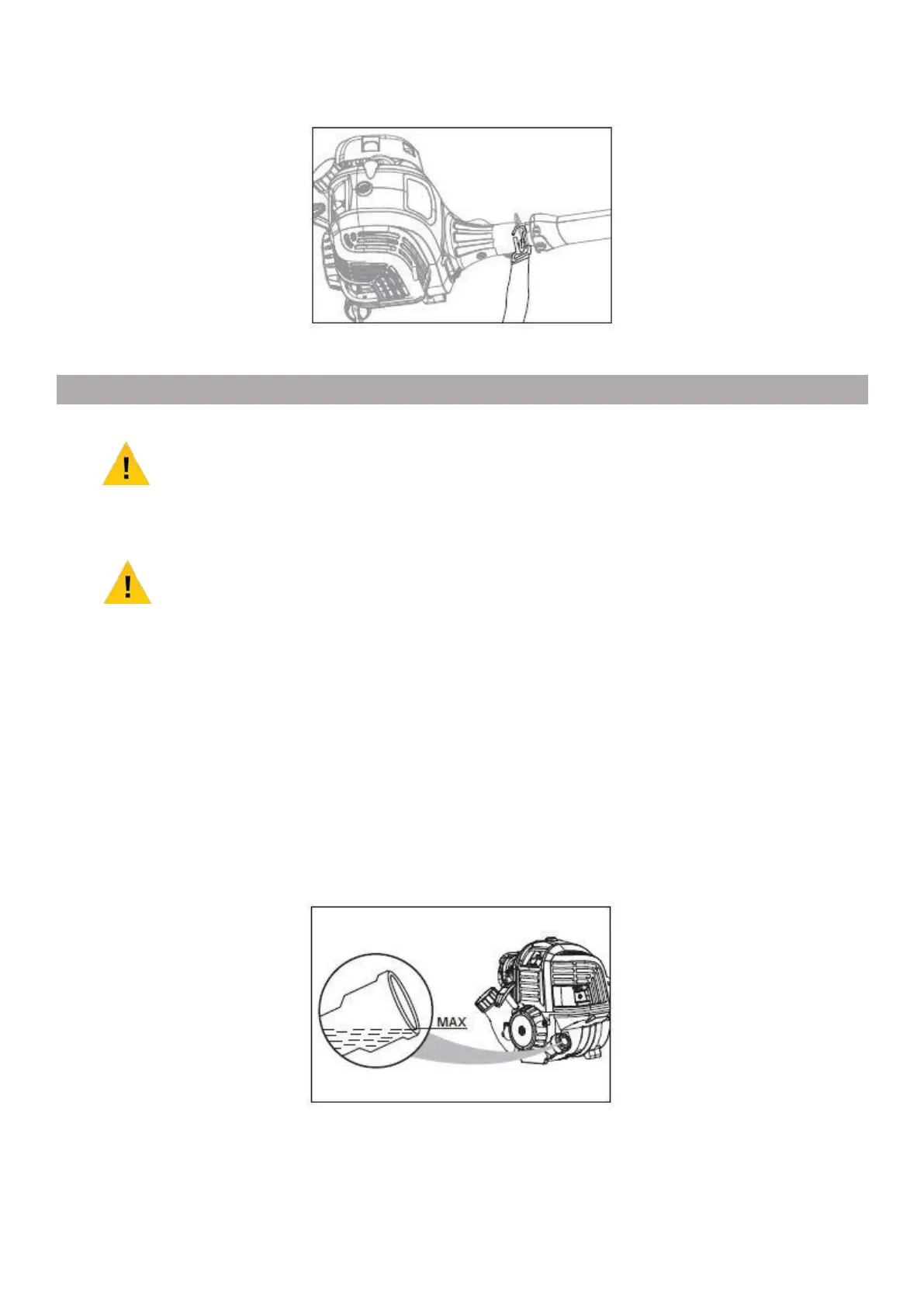

2.17 The harness, with quick-release function, can be installed to the harness hook
behind the rear handle.
4. PRE OPERATION CHECKS
WARNING
This machine is shipped without oil and fuel.
You MUST ensure all fluid levels are correct before operation otherwise you may
cause serious engine damage that will not be covered by the warranty.
WARNING
ALWAYS use a semi-synthetic 4 stroke SAE 10W30 engine oil and straight
unleaded petrol.
DO NOT mix the fuel with the oil.
You MUST check the engine oil level before each use.
3.0 To add engine oil, remove the attachment from the power head and place of a flat,
level surface.
3.1 Unscrew the oil filler cap.
3.2 Slowly pour 60ml of semi-synthetic 4 stroke SAE 10W30 engine oil into the crank
case until it reaches the top of the oil fill hole.
DO NOT overfill. Overfilling the crankcase may cause excessive smoke, oil loss and
engine damage.
3.3 Replace the oil filler cap and tighten securely.

Hyundai HY4TR26 Specifications

General

Engine Type	4 stroke, Air cooled
Engine Displacement	26.5cc
Fuel Type	Unleaded Petrol
Fuel Tank Capacity	280ml
Oil Type	4 Stroke Semi-Synthetic SAE 10W30
Oil Capacity	60ml
Cutting Diameter	450mm
Cutter Head	Bump Feed
Trimmer Line Diameter	2.5mm
Noise Level	104dB

Weight and Dimensions

Net Weight	5Kg
