Hyundai IONIQ 6 User Manual

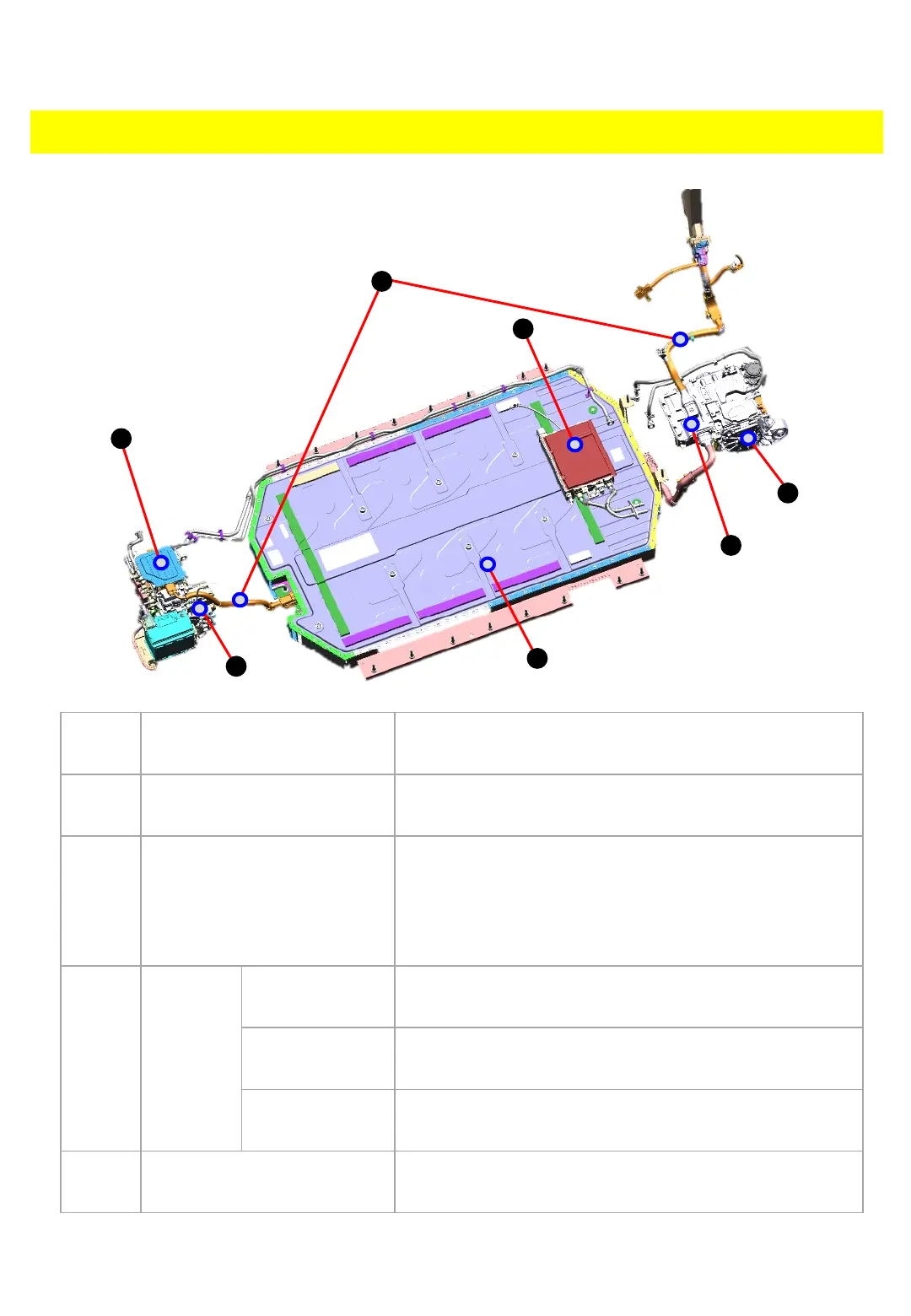

5.1 High voltage system
5. Stored energy / liquid / gases / solids
13
1 High voltage battery
Supplies electric energy to traction motor and
stores generated electric energy.
2
High-voltage
Junction box (FRT, RR)
It supplies electricity from battery to the inverter,
LDC, air conditioner compressor, etc...
3
ICCU
(OBC + LDC)
Integrated
Charging Control Unit (OBC + LDC)
OBC (On
-Board Charger)
: Battery charging equipment (AC→DC)
LDC (Low Voltage DC
-DC Converter)
: Charge 12V auxiliary battery
4
Drive
System
Motor
When current flows through the coil,
it generates a
rotating magnetic field and generates motor torque.
EV
Transmission
Increases Motor Torque and increased Torque is
transferred to the wheels.
Inverter
DC
→ AC (from battery to traction motor)
AC
→ DC (charge using regenerative braking)
5 High-Voltage Cable
The high
-voltage cabling is orange per the SAE
standard.
1
3
2
4
5
4
2
