Features of your vehicle
CD (USA/CANCAD
A)
❋
There will be no
,
logo if the Bluetooth/XM SA
TELLITE feature is not suppor
ted.

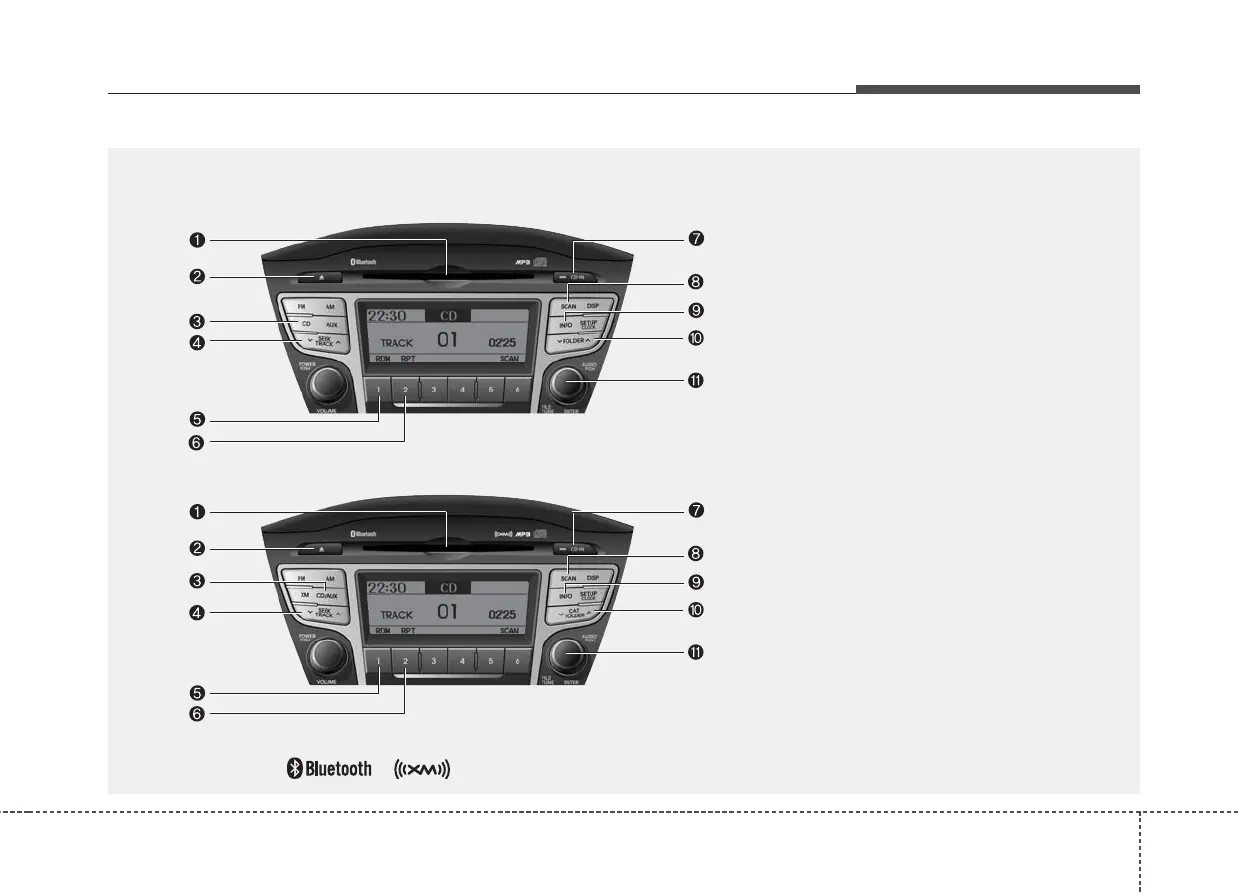

1.
CD Loading Slot
2.
CD Eject Button
3.
CD Selection Button
4.
Automatic Station Seek Button
5.
RANDOM play Button
6.
REPEA
T Button
7.
CD Indicator
8.
SCAN Play Button
9.
INFO Button
10.
FOLDER Moving Button
11.
SEARCH Knob & ENTER Button
181
183
