INSTALL THE CLUTCH COVER WITH
H.T. COIL
3.5

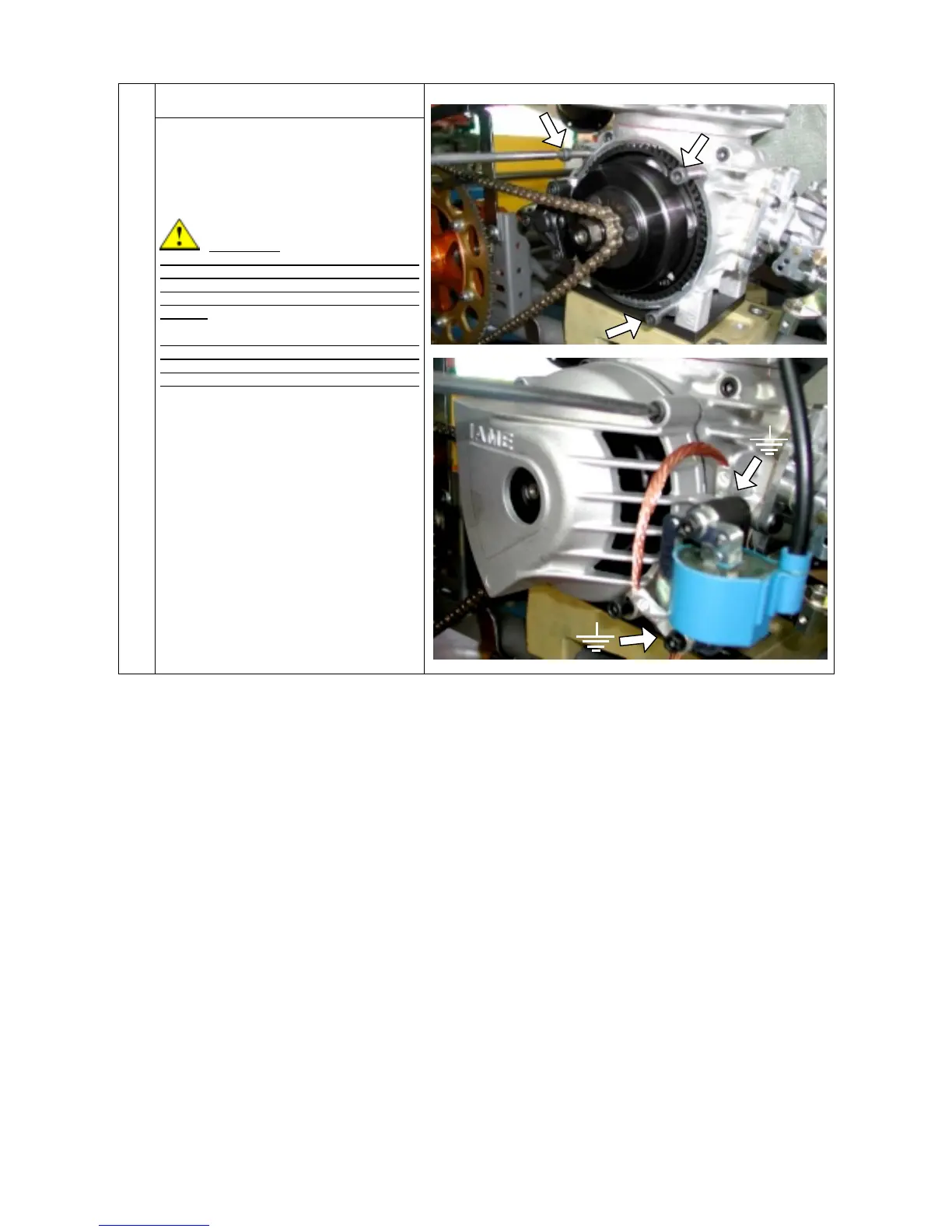

3.5.1 REMOVE THE 3 SCREWS M6 X 30 ON
THE CRANKCASE (SEE FIG. 17) AND INSTALL
THE CLUTCH COVER WITH H.T. COIL (SEE
FIG.18).
TORQUE THE 3 SCREWS AT 8 ÷ 10 Nm
ATTENTION:
ALWAYS MAKE SURE THAT THE GROUND
CABLE ALWAYS CONNECTS THE COIL WITH
THE ENGINE. AN INADEQUATE GROUNDING
COULD DAMAGE THE IGNITION BEYOND
REPAIR.
THE POSITION OF THE H.T. COIL HAS BEEN
CHOSEN TO BE AS FAR AS POSSIBLE FROM
THE EXHAUST AS THE EXCESSIVE HEAT
COULD DAMAGE THE COIL BEYOND REPAIR.
5mm ALLEN
