13
MAN-028
ELECTRICAL CONNECTION
(refer to the attached electrical schematic)
3.6
INSTALLATION AND CONNECTION
OF THE POWER PACK BOX.
NOTE:
THE POWER PACK BOX IS SUPPLIED
ALREADY ASSEMBLED ON THE BATTERY
SUPPORT (WITH BATTERY) . FOR A
CORRECT INSTALLATION FOLLOW THE
UNDER SHOWN INSTRUCTIONS.

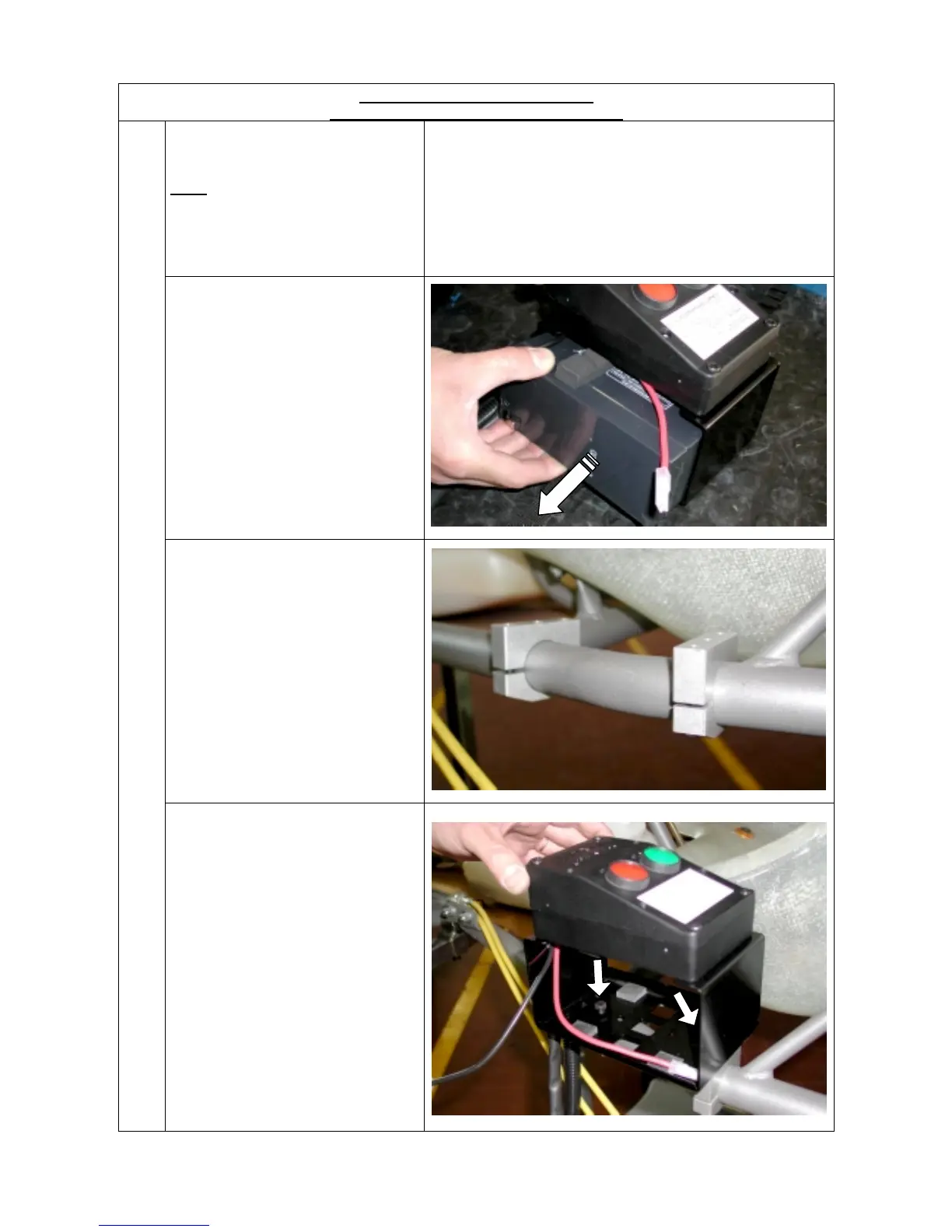

3.6.1 EXTRACT THE BATTERY FROM THE
SUPPORT AFTER HAVING UNLACED THE
BATTERY STRAP (SEE FIG. 19).
3.6.2 POSITION THE SUPPORT CLAMPS ON
THE OUTSIDE RAIL (BRAKE SIDE) AT THE
HEIGHT OF THE SEAT.
FIX THE CLAMPS BY HAND WITH 2
SCREWS M6 X 25 (SEE FIG. 20).
3.6.3 POSITION THE BATTERY SUPPORT
BOX ON THE CLAMPS MATCHING THE
ATTACHMENT HOLES (SEE FIG. 21).
FIX THE BOX WITH TWO SCREWS M6 X 10.
MOVE THE BOX WITH THE 2 CLAMPS TO
THE MOST SUITABLE POSITION.
TORQUE THE M6 SCREWS AT 8 ÷ 10 Nm
12 POINT WRENCH 10mm
Fi
