IBC DC 20-125 User Manual

INSTALLATION AND OPERATION INSTRUCTIONS
1-10
DC SERIES BOILERS / WATER HEATERS DC 15-95, DC 15-96, DC 20-125, DC 33-160
• Use a 45° elbow on the exhaust termination to launch the plume up and off
the sidewall, for protection of wall.
• Bird screen of 1/4" stainless steel or plastic mesh eg. (IPEX System 636 drain
grate for CPVC systems) is useful to guard against foreign objects.
DIRECT VENT SIDE WALL TERMINATION KITS
The following Side Wall Termination Kits are approved for use with the DC series
boilers / water heaters and are subject to the following restrictions. NOTE: Some
jurisdictions may not allow this type of side wall termination due to close proximity
to the neighboring properties. See Figures 9a, 9b and 10 on page 1-11.
The installation instructions, clearances and wall thickness requirements of the
approved vent termination manufactures must be followed.
Approved Side Wall Termination Kits are listed as follows: (Alternate vent
termination kits must be submitted to IBC for approval prior to installation.)
• Ipex - #196984 – 2" PVC low prole termination kit (see Figure 10).
• Ipex - #196985 – 3" PVC low prole termination kit (see Figure 10).

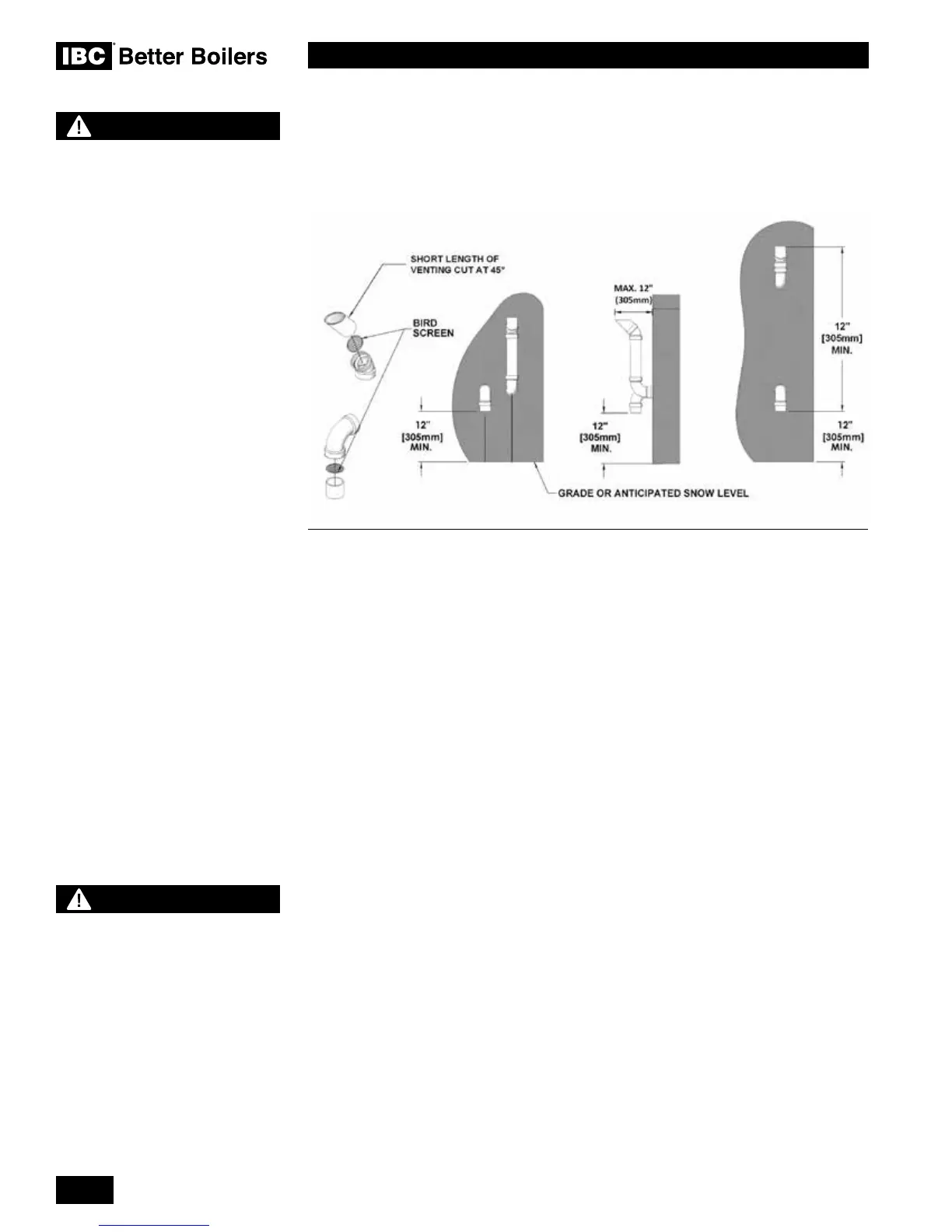

Figure 8: Sidewall vent termination - piping conguration
WARNING
It is extremely important to
maintain at least the minimum
separation of exhaust vent
termination from boiler /
water heater intake air as
illustrated in gures 5, 8 and
13. Failure to do so can result
in a dangerous situation
where exhaust gasses are
re-ingested with combustion
air. Damage to the boiler
/ water heater can result
from a failure to maintain
these separations. Improper
installation will void the
warranty.
WARNING
In areas of high snowfall,
Users must be advised to
check side wall vent and
air intake terminations on
a regular basis to ensure
blockage does not occur.
