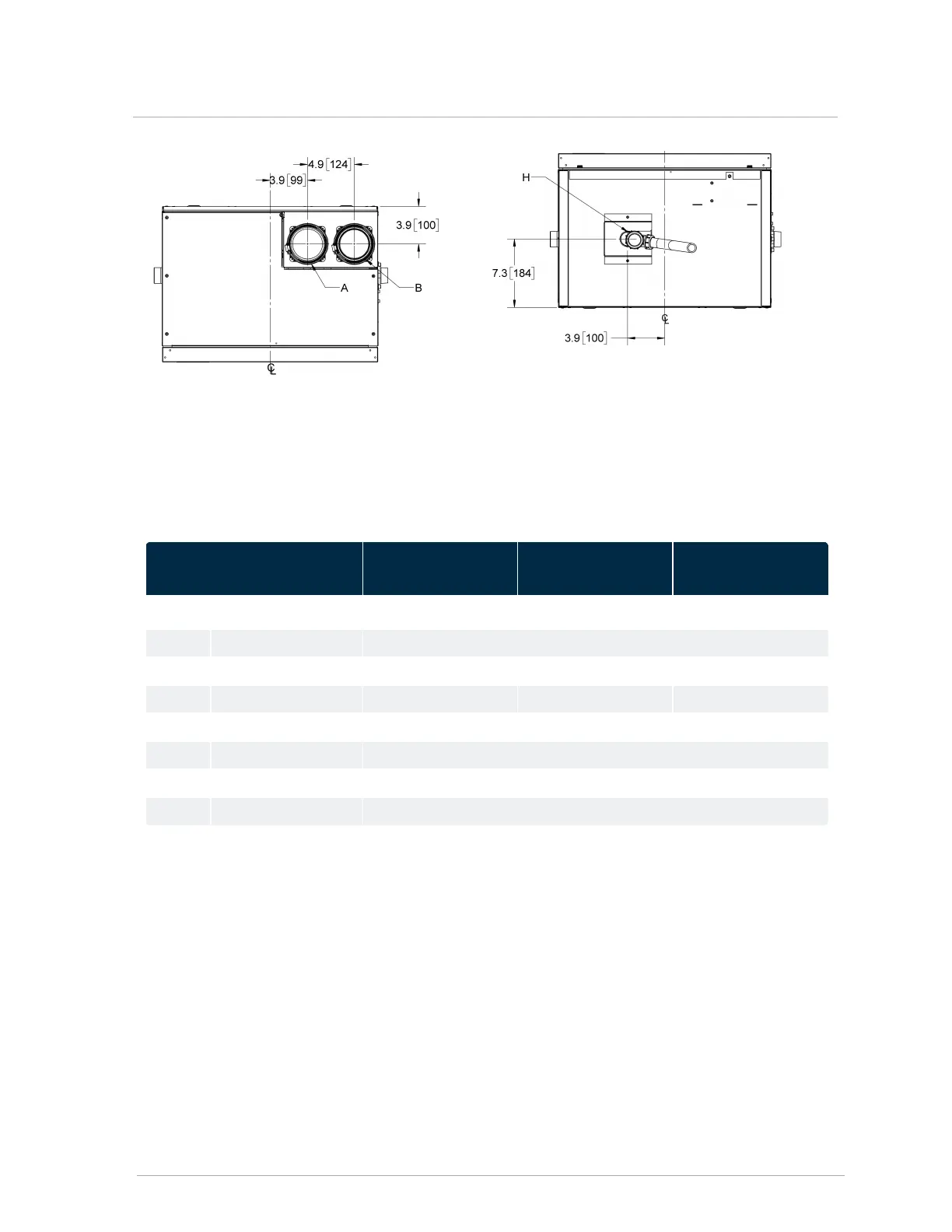

Figure 8 : Top view - SL30-199 G3 Figure 9 : Bottom view - SL30-199 G3
Connection specifications
The following table displays the required connection specifications.
SL10-85 G3,
SL14-115 G3
SL 20-160 G3 SL30-199 G3
A Flue Outlet
3" Schedule 40 or 3" PPs (80mm)
B Combustion Air 3" Schedule 40 or 3" PPs (80mm)
C LCD Display 2¼" x 4"
D Water Outlet 1"NPT-M 1"NPT-M 1¼” NPT-M
E Water Inlet 1"NPT-M 1"NPT-M 1¼” NPT-M
F Knock-outs (8) ½"
G Gas Inlet ½" NPT-F
H Condensate Outlet ¾" Hose
Table 1 Connections
9
Connection specifications

IBC SL 10-85 G3 Specifications
