IBM 6580 User Manual

DISKETTE UNIT
The signal, AC, and DC cables from the
diskette unit connect to the electron-
ics module at sockets 5, 8 and 10 on
systems with the 25-Line Display
installed. Systems with the Large
Display installed use connectors 5 and
10 on the electronics module for sig-
~
I
AC Fan Connector
SYSTEM ELECTRONICS
SYSTEM
CARD
" File Control
nal and DC and Connector 8 on the rear
of the display module for AC. The
signal cable attaches to the diskette
adapter card connector strip at B1 and
the DC cable connects to the connector
strip in position B2. The file con-
trol card cables attach to connector
strip positions B3 and B4.
DISKETTE DRIVE UNIT
FAN
DISKETTE
ADAPTOR
r---------- .....
I "fGHT DRIVE :
r
1
---,
(OPTIONAL) :
I
I
I
I
Signal
Cable
(5)
Powe, Cabl);
AC Cable
Connector (8)
Diskette
Adapter
~card
Connector Strip
'~-
""~. • Card Connector
~
81
82
84

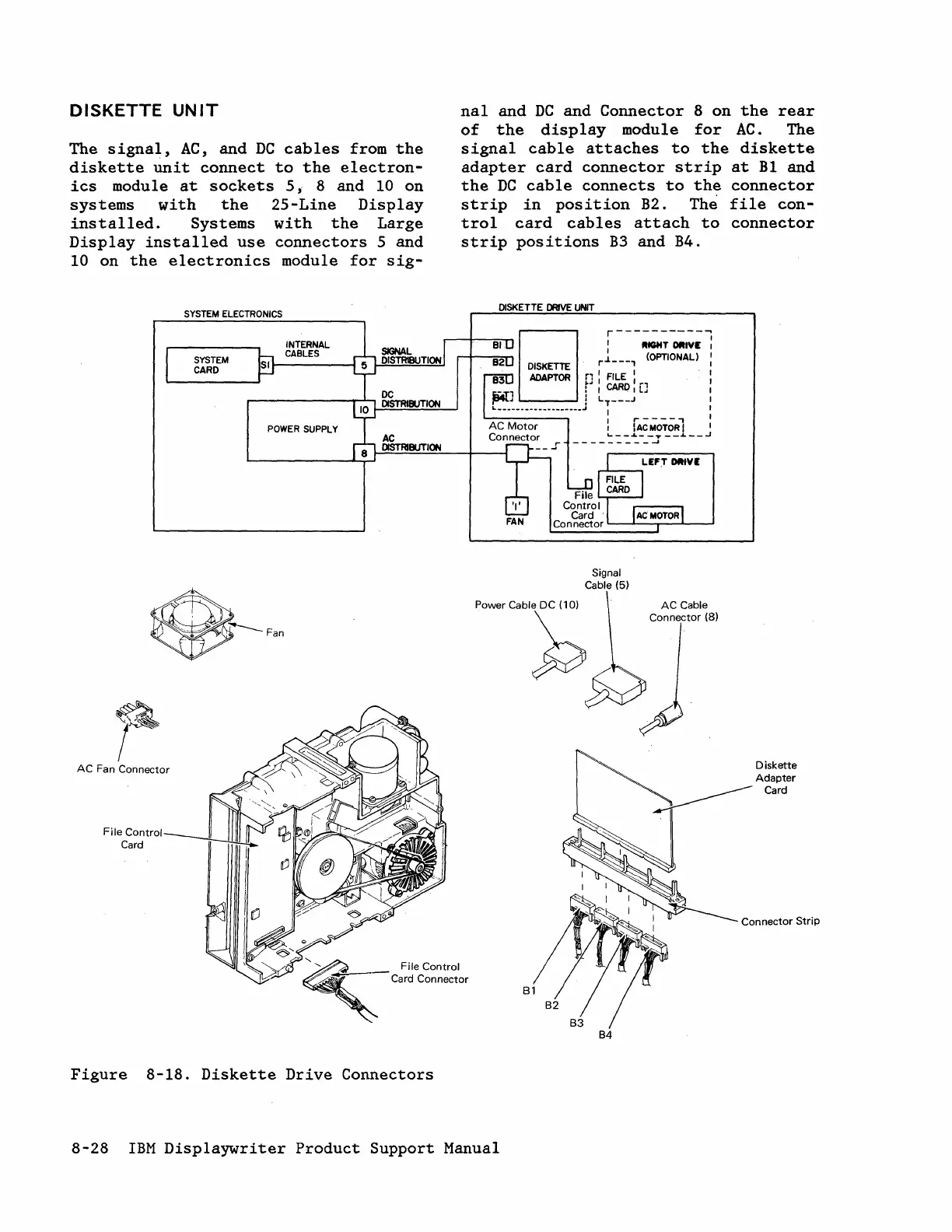

Figure 8-18. Diskette Drive Connectors
8-28 IBM Displaywriter Product Support Manual
