IBM 6580 User Manual

L..!U.llIR d;sk ___________ I~I ___ I
SYSTEM CONFIGURATION
Electron; cs Module 8
Di splay Module
Keyboard Module
Diskette Unit
Memory 192A
Printer"'
Communi cat; ons
3277 Device Emulation

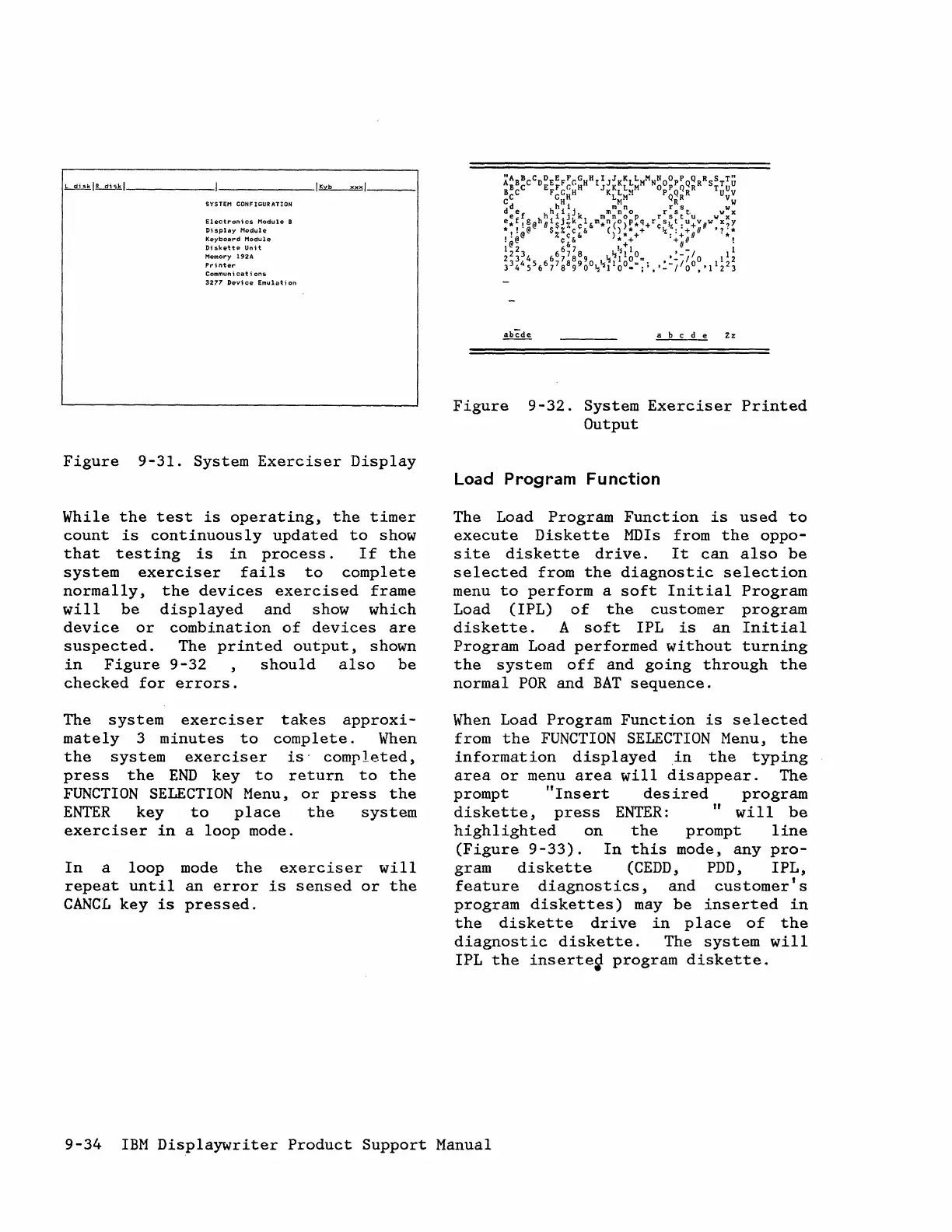

Figure 9-31. System Exerciser Display
While the test is operating, the timer
count is continuously updated to show
that testing is in process. If the
system exerciser fails to complete
normally, the devices exercised frame
will be displayed and show which
device or combination of devices are
suspected. The printed output, shown
in Figure 9-32 should also be
checked for errors.
The system exerciser takes approxi-
mately 3 minutes to complete. When
the system exerciser is' completed,
press the END key to return to the
FUNCTION SELECTION Menu, or press the
ENTER key to place the system
exerciser in a loop mode.
In a loop mode the exerciser will
repeat until an error is sensed or the
CANCL key is pressed.
abc d e Zz
Figure 9-32. System Exerciser Printed
Output
Load Program Function
The Load Program Function is used to
execute Diskette MDIs from the oppo-
site diskette drive. It can also be
selected from the diagnostic selection
menu to perform a soft Initial Program
Load (IPL) of the customer program
diskette. A soft IPL is an Initial
Program Load performed without turning
the system off and going through the
normal POR and BAT sequence.
When Load Program Function is selected
from the FUNCTION SELECTION Menu, the
information displayed ,in the typing
area or menu area will disappear. The
prompt "Insert desired program
diskette, press ENTER: n will be
highlighted on the prompt line
(Figure 9-33). In this mode, any pro-
gram diskette (CEDD, PDD, IPL,
feature diagnostics, and customer's
program diskettes) may be inserted in
the diskette drive in place of the
diagnostic diskette. The system will
IPL the inserte~ program diskette.
9-34 IBM Displaywriter Product Support Manual
