IBM 9009-22A Site And Hardware Planning

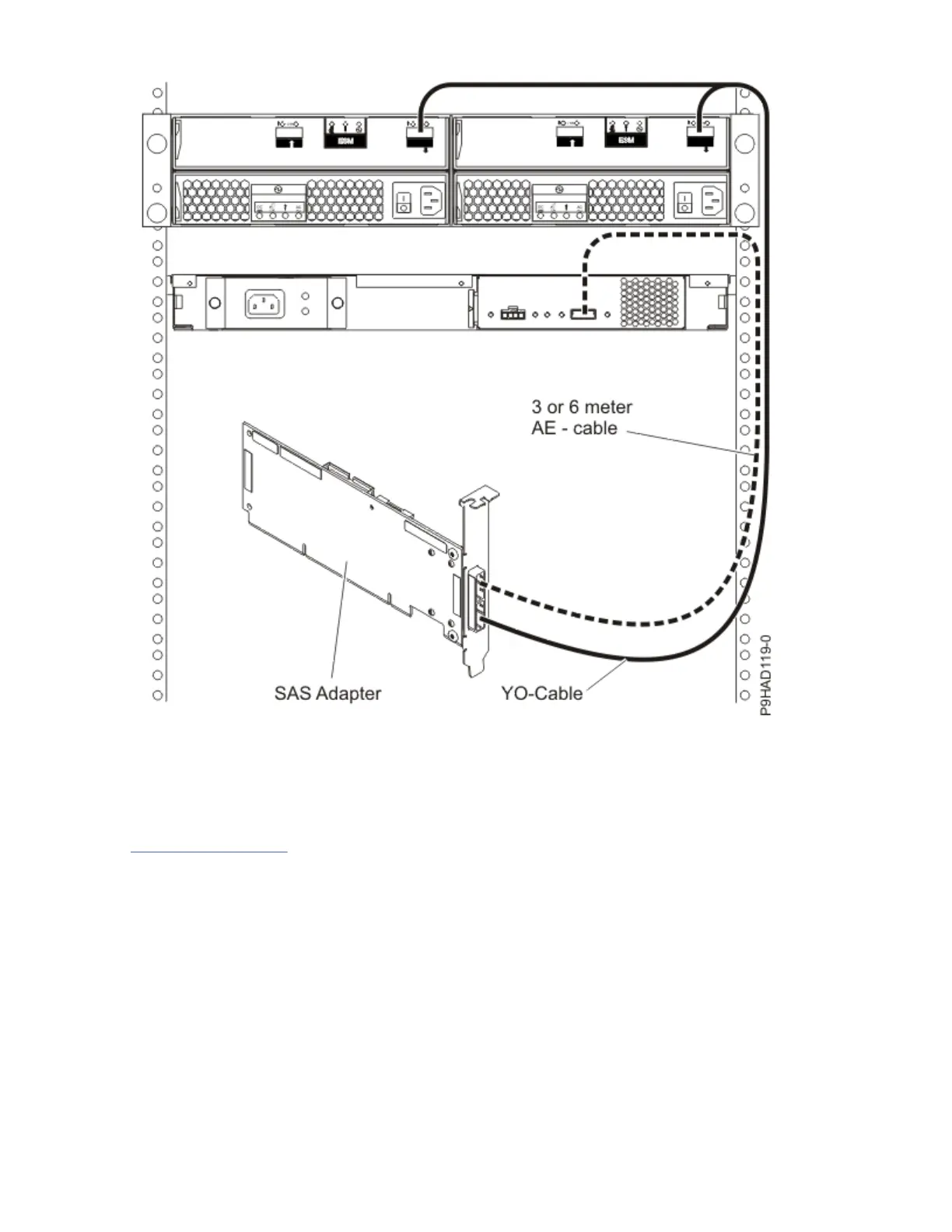

Figure 41. SAS adapter to both a disk expansion drawer and a media expansion drawer
Note: The YO cable must be routed along the right side of the rack frame.
System external SAS port to disk expansion drawer
Figure 42 on page 118 illustrates connecting a system external SAS port to a disk expansion drawer. Disk
expansion drawers cannot be cascaded.
Site and hardware planning
117
