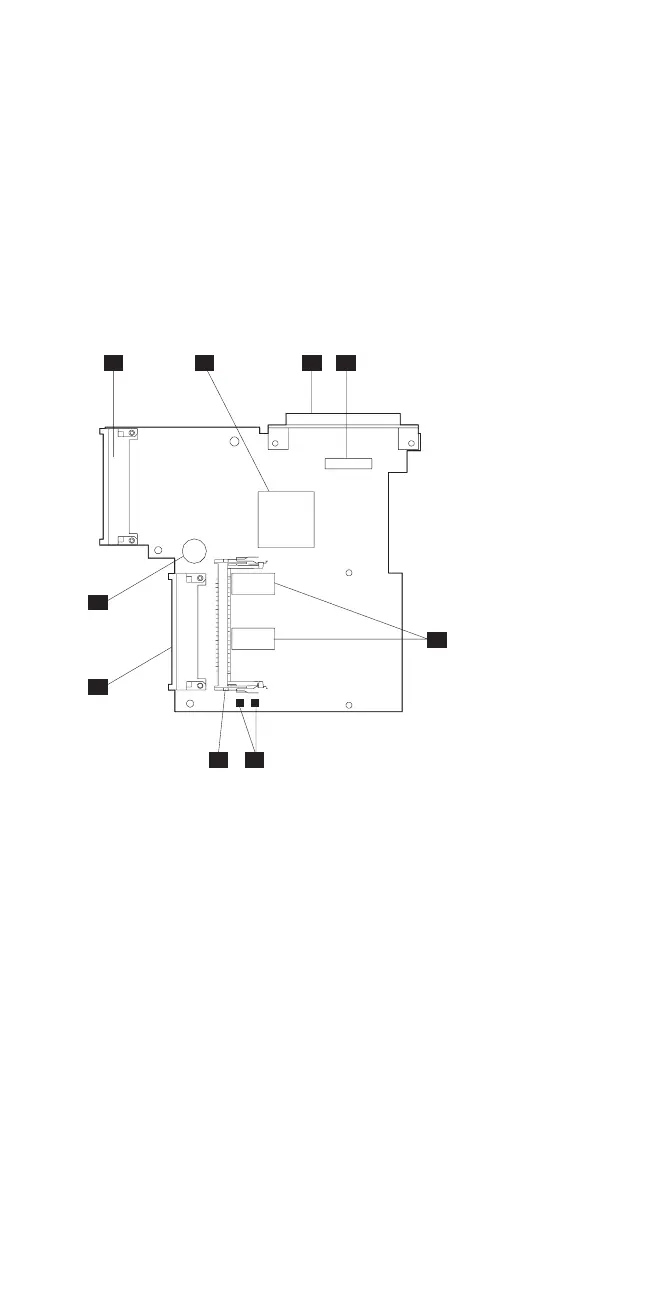

Bottom System Board (Bottom View)
▌1▐ PCMCIA Connector
▌2▐ Processor
▌3▐ System Expansion Connector
▌4▐ Modem Connector
▌5▐ Random Access Memory
▌6▐ SO-DIMM Connector
▌7▐ Hard Disk Drive Connector
▌8▐ RTC Battery
▌9▐ Power-On Password Bypass Pads
3
96
2
8
5
1
7
4
ThinkPad 701C/701CS (2630) 187
