2060 Status Indicator
Battery Pack (2020)
Keyboard Unit (2040)
Warning: Do not pull the status indicator cable. The
cable will be damaged if the status indicator is
disconnected without releasing the latch in step ▌2▐.

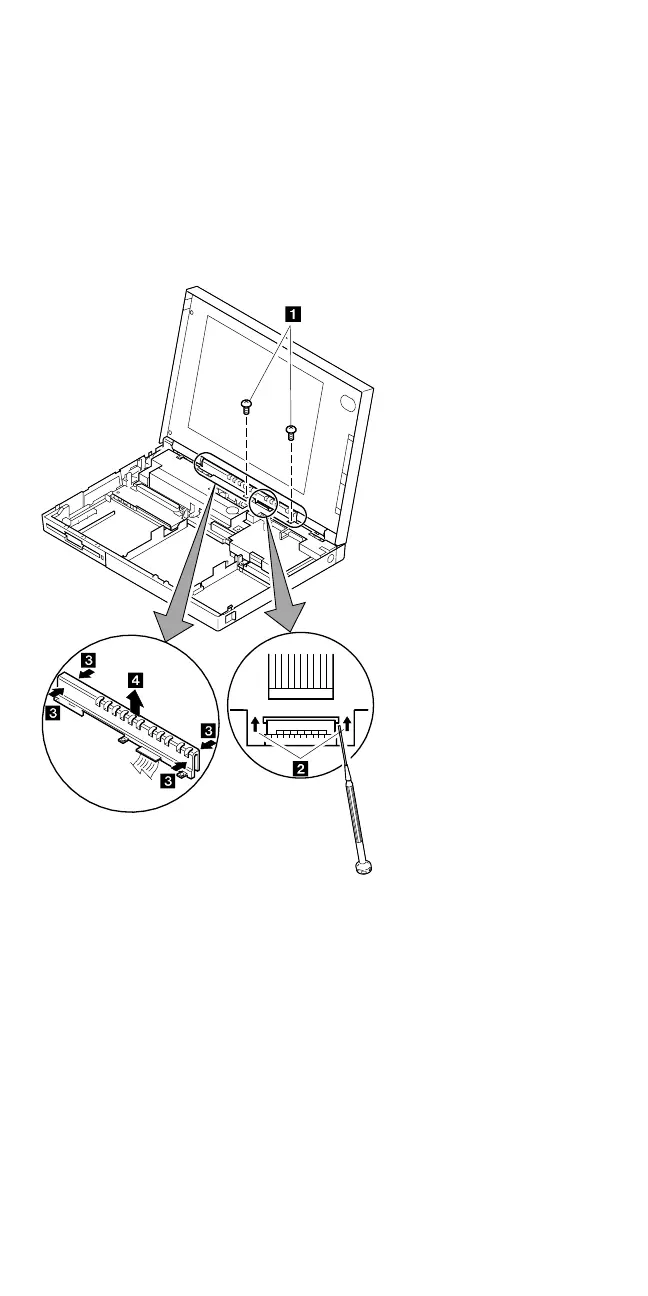

The status indicator has three latches on its rear and two
in its front. in step ▌3▐, do as follows:
1. Release the rear latches with pushing each one with
your thumb, as shown in the artwork. (The broken
circles in the figure show the locations of the three
latches.)
2. Release the front latches.
3. Lift the indicator.
272 IBM Mobile Systems HMM
