5. Remove the Ethernet adapter filler panel on the rear of the chassis (if it has
not been removed already). See Figure 14.
6. Install the two standoffs on the system board.
7. Insert the bottom tabs of the metal clip into the port openings from outside
the chassis. See Figure 15 on page 109.
Rubber
stopper
Ethernet
adapter connector
Rubber
stopper

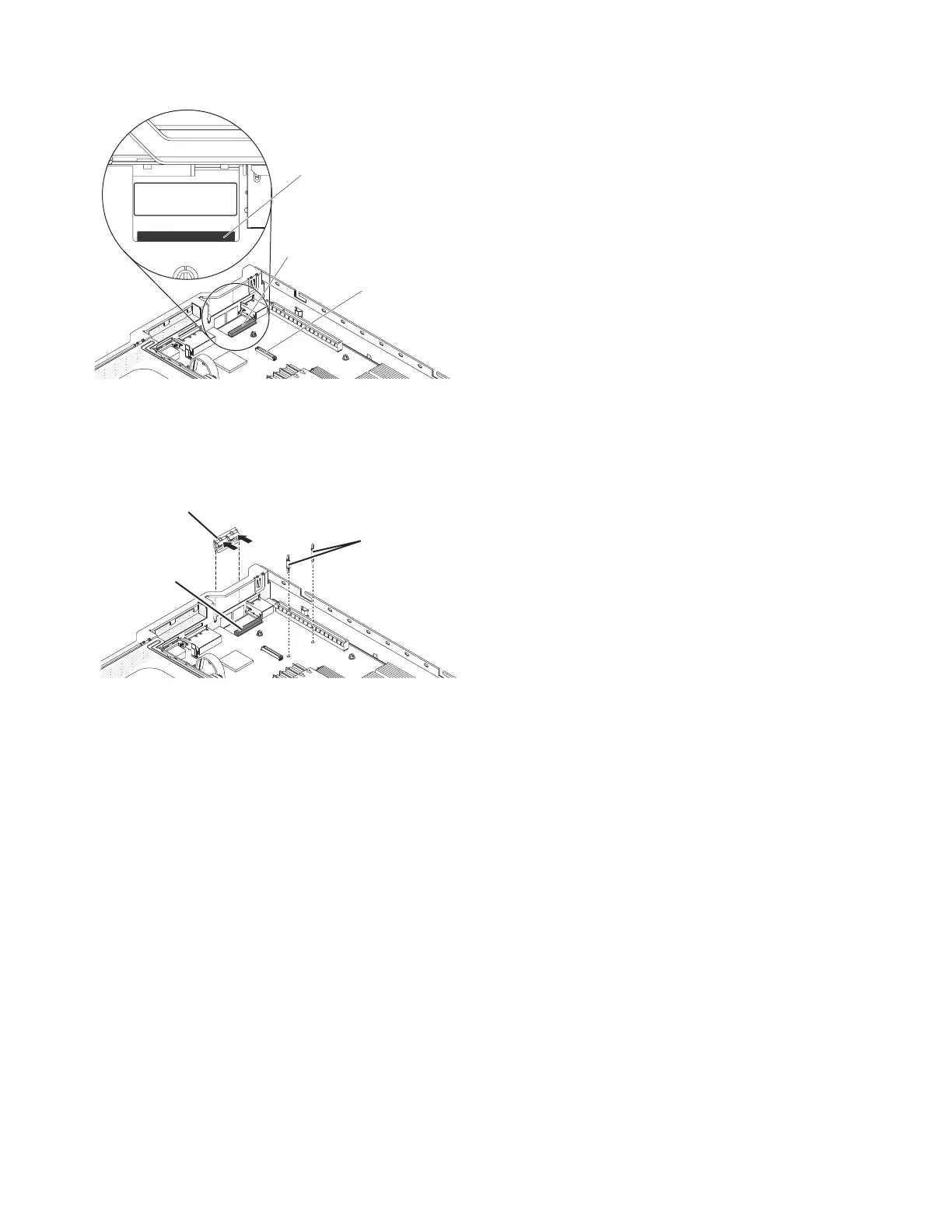

Figure 13. Location of the rubber stopper on the chassis
Ethernet adapter
filler panel
Standoff
Rubber
stopper
sonas201
Figure 14. Location of the Ethernet adapter filler panel on the chassis
108 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 Unified Series Specifications

General

Form Factor	2U
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
File Protocols	NFS, CIFS/SMB, FTP, HTTP, HTTPS
Drive Types	SAS, SSD
Maximum Cache	64 GB
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 1 Gb iSCSI
File System Support	GPFS
Data Services	Thin provisioning, Easy Tier, FlashCopy, Remote Mirroring
Management Interface	CLI
Scalability	Scale-out
Operating System Support	Windows, Linux, AIX, VMware
Power Supply	Redundant power supplies
Maximum Capacity	Up to 4PB
