ICE I20NB / I20NBT / I24BT 73

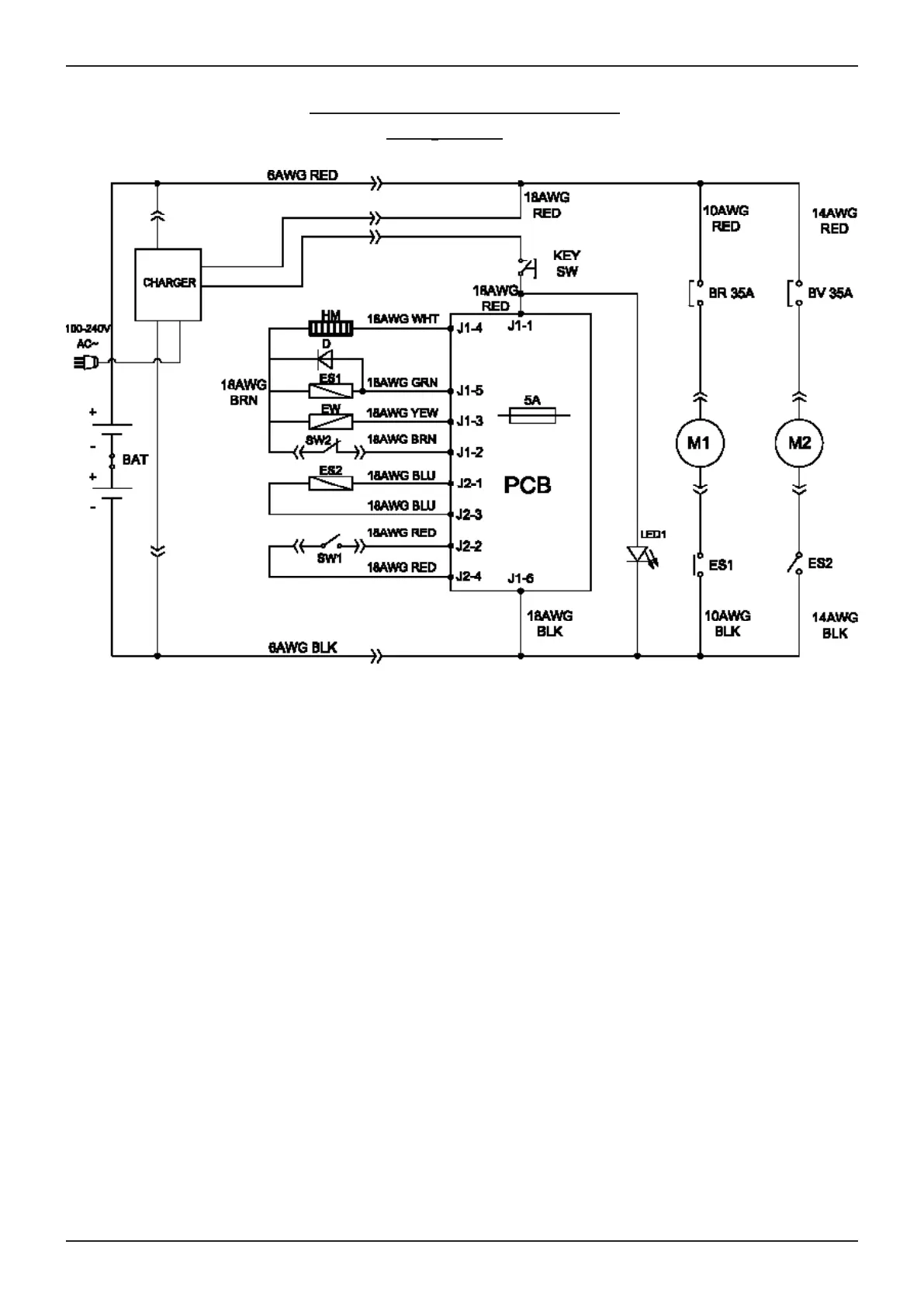

WIRING DIAGRAM
BAT: 2-12V Batteries
CHARGER: On board battery charger
KEY SW: Main power Key switch
HM: Hour meter
D: Diode
ES1: Brush motor solenoid switch
EW: Solution solenoid valve switch
SW2: Safe switch, Scrub head lifting
ES2: Vacuum motor relay
ES2: Vacuum motor relay
SW1: Control handle start bail switch
PCB: Function electronic board
LED1: Running lights
BR: Circuit breaker, Brush motor
BV: Circuit breaker, Vacuum motor
M1: Brush motor
M2: Vacuum motor
WIRING DIAGRAM FOR I20NB
) 271
(SN: )
To Next Page
