4 - 3
Reference frequency
adjustment
Reference frequency
check point
R9552
VCO2 lock voltage
adjustment
C9252
VCO1 lock voltage
adjustment
C9202
VCO1 and VCO2
lock voltage check point
CP9151
CP9671
CP9611

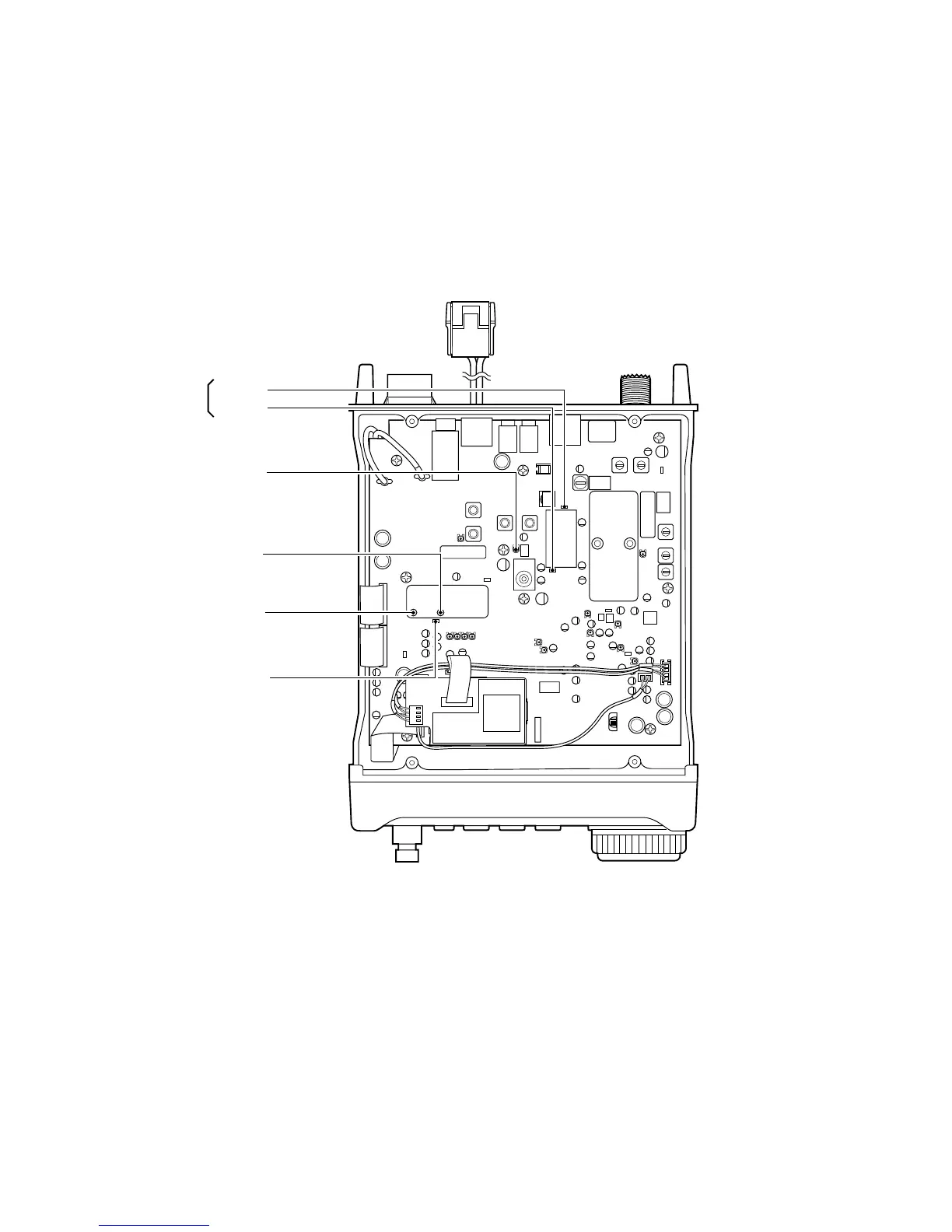

• MAIN UNIT TOP VIEW
