Icom IC-730 Maintenance Manual

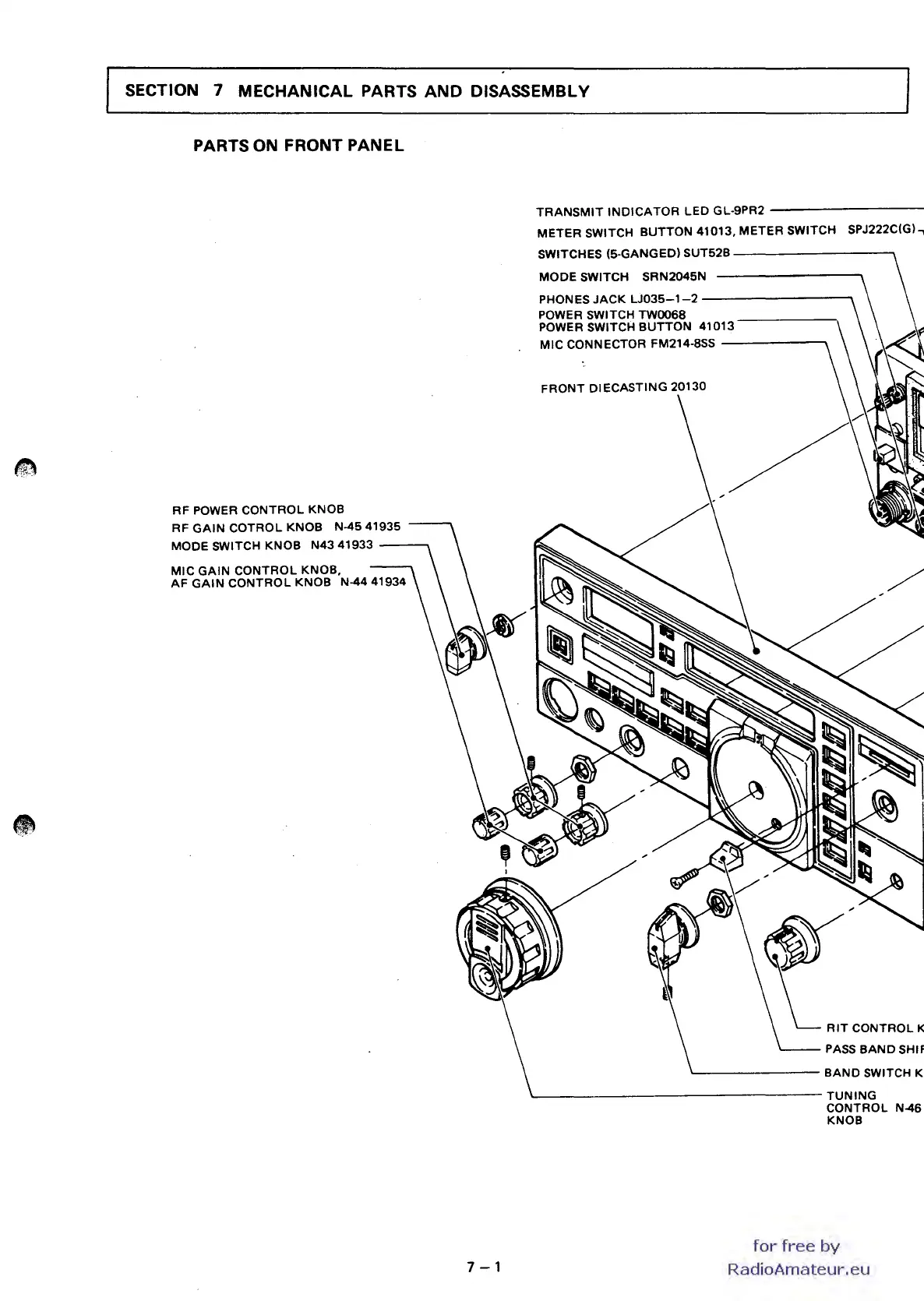

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
PARTS ON FRONT PANEL
RF POWER CONTROL KNOB
RF GAIN COTROL KNOB N-4541935
MODE SWITCH KNOB N4341933 --,
MIC GAIN CONTROL KNOB,
AF GAIN CONTROL KNOB N-4441934
7 -1
TRANSMIT INDICATOR LED GL-9PR2 --------
METER SWITCH BUTTON 41013, METER SWITCH SPJ222CIGl
l
SWITCHES 15-GANGEDl SUT52B --------,
MODE SWITCH SRN2045N
PHONES JACK LJ035-1-2 ----------"\
POWER SWITCH TWOO68
POWER SWITCH BUTTON 41013
MIC CONNECTOR FM214-8SS -----,
FRONT DlECASTING 20130
RIT CONTROL K
PASS
BAND SHIF
~------ BAND SWITCH K
L- _______________ TUNING
CONTROL N-46
KNOB
