•Differences between VFO mode and memory mode
22
3
FREQUENCY SETTING
■ VFO description
VFO is an abbreviation of Variable Frequency Oscilla-
tor, and traditionally refers to an oscillator.
The transceiver’s VFO is somewhat different. The VFO
of the IC-756 acts like a computer’s window and can
show one frequency and one operating mode.
You can call up a desired frequency to the VFO with
the keypad, memo pad-read switch (see p. 46) or the
memory transfer function (see p. 44). You can also
change the frequency with the tuning dial and select
the operating mode with the mode switches.
During dualwatch or split frequency operation, the sub
VFO is functional (non-outline, larger frequency char-
acters). While pushing [XFC] during split frequency op-
eration, you can change the transmit readout fre-
quency with the keypad, memo pad-read switch or the
memory transfer function.
14.100.00
VFO
USB
USBUSB
14.205.00
TX
1
ANTANT
1
METERMETER
PoPo
2.4k2.4k9 2.8k2.8k455455
12:3412:34
Transfer
Transfer
Transfer
Change
21.295 MHz 28.025 MHz 7.001 MHz
KEYPAD
(BAND KEY)
MEMORY
CHANNEL
MEMO PAD
TUNING DIAL
Select
MODE
SWITCHES

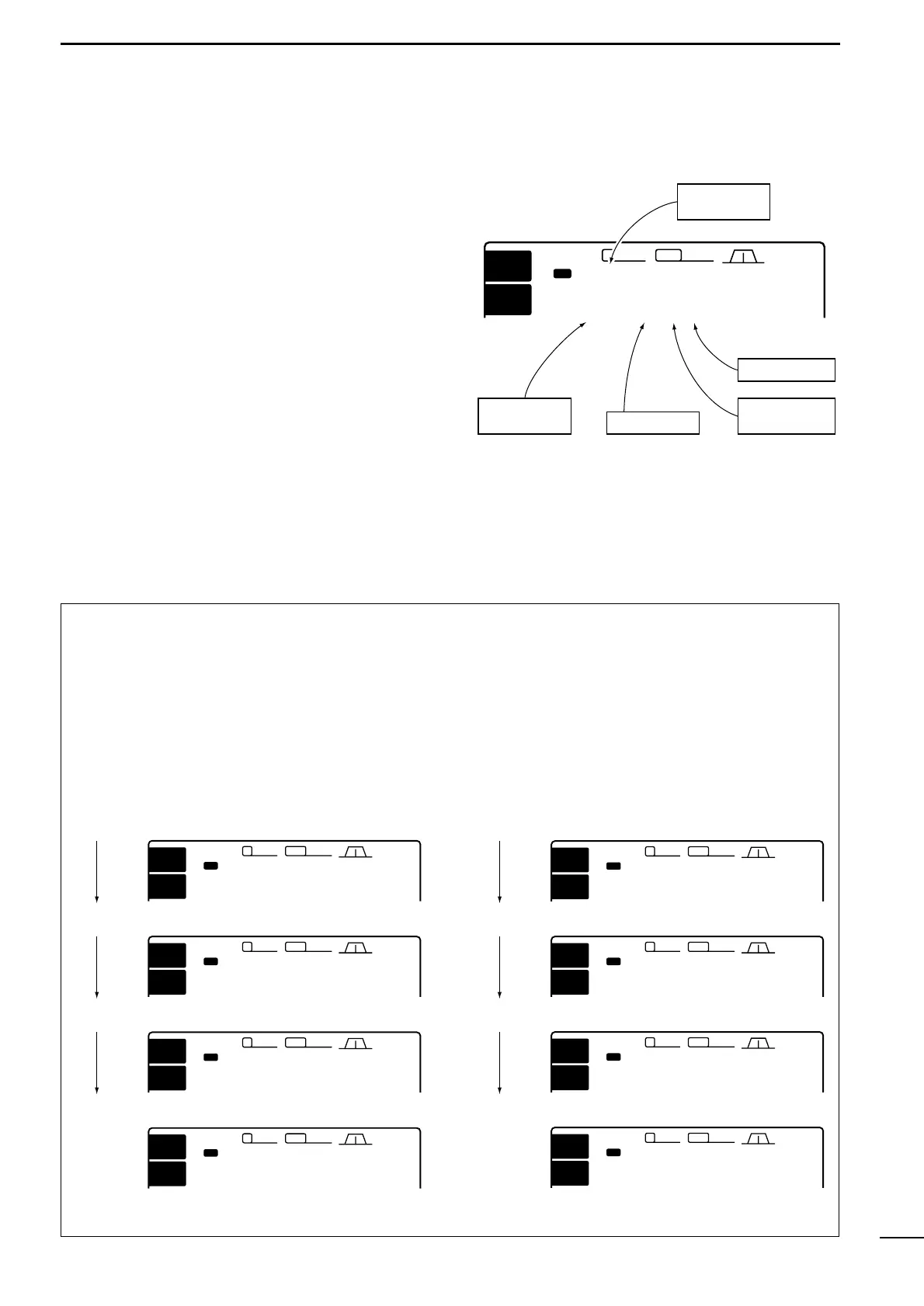

VFO MODE
VFO shows a frequency and operating mode. If the
frequency or operating mode is changed, the VFO au-
tomatically memorizes the new frequency or new op-
erating mode.
When a VFO is selected from another band or mem-
ory mode, the last used frequency and operating
mode for that VFO appear.
[EXAMPLE]
MEMORY MODE (pgs. 41–45)
Each memory channel shows a frequency and oper-
ating mode like a VFO. Even if the frequency or mode
is changed, the memory channel does not memorize
the new frequency or operating mode.
When the memory channel is selected from another
memory channel or VFO mode, the memorized fre-
quency and operating mode appear.
[EXAMPLE]
14.100.00
USB
USB
21.025.00
1
Changed frequency (14.123 MHz) appears.
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
14.123.00
USB
USB
21.025.00
1
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
21.025.00
USB
USB
14.123.00
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
14.123.00
USB
USB
21.025.00
1
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
1
VFO is selected.
The frequency is changed.
Memory mode is selected.
VFO is selected again.
14.100.00
USB
USB
14.100.00
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
1
14.123.00
USB
USB
14.100.00
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
1
21.245.00
USB
USB
14.100.00
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
12
14.100.00
USB
USB
14.100.00
VFO
TX
ANT
1
METER
Po
2.4k
9 2.8k
455
12:34
1
Memory channel 1 is selected.
The frequency is changed.
Another memory channel is selected.
Memory channel 1 is selected again.
Changed frequency (14.123 MHz) does not appear and
memorized frequency (14.100 MHz) appears instead.
