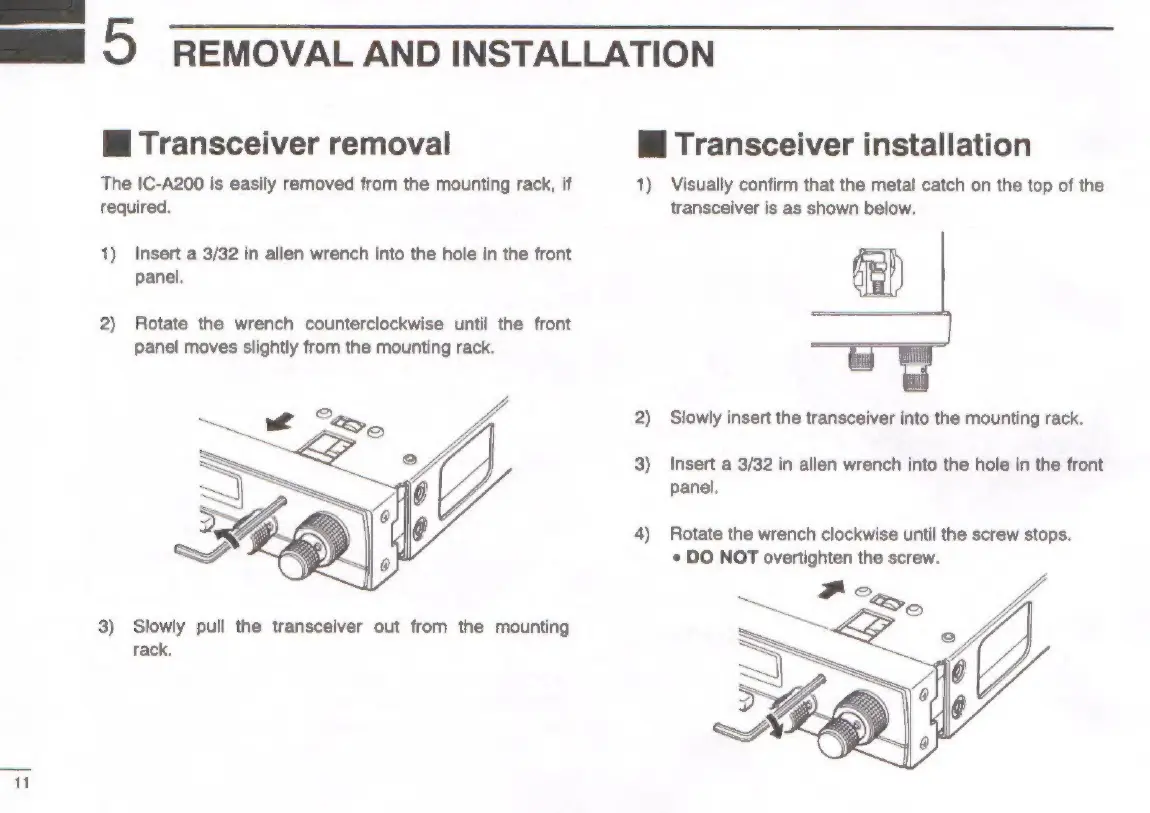

mm 5 REMOVAL AND INSTALLATION
i Transceiver removal Wi Transceiver installation
The IC-A200 is easily removed from the mounting rack, if 1) Visually confirm that the metal catch on the top of the
required. transceiver is as shown below.
1) Insert a 3/32 in allen wrench into the hole in the front
panel.
2) Rotate the wrench counterclockwise until the front
panel moves slightly from the mounting rack.
2) Slowly insert the transceiver into the mounting rack.
3) Insert a 3/32 in allen wrench into the hole in the front
panel.
4) Rotate the wrench clockwise until the screw stops.
* DO NOT overtighten the screw.
3) Slowly pull the transceiver out from the mounting
rack.
