Icom IC-A200 User Manual

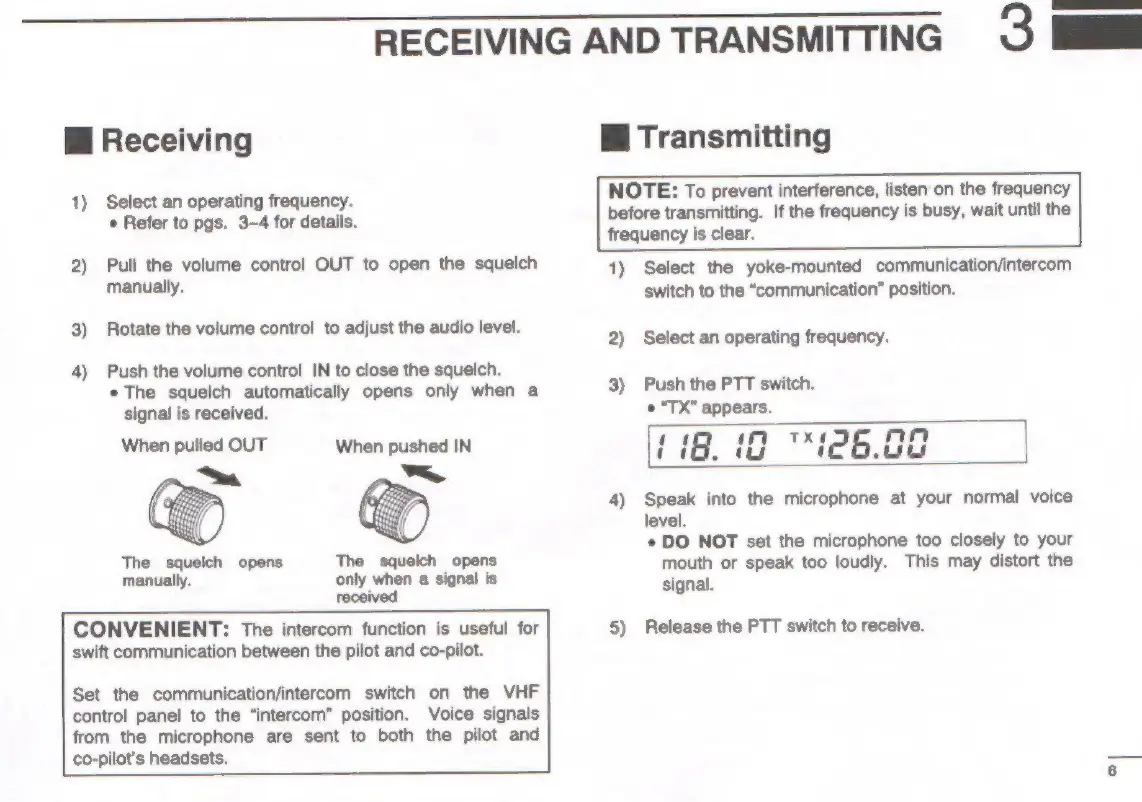

RECEIVING
AND
TRANSMITTING
oz
i
Receiving
1) Select an operating frequency.
¢ Refer to pgs. 3~4 for details.
2) Pull the volume control OUT to open the squelch
manually.
3) Rotate the volume control to adjust the audio level.
4) Push the volume control IN to close the squelch.
The squelch automatically opens only when a
signal is received.
When pulled OUT When pushed IN
The squelch opens
only when a signal is
received
CONVENIENT: The intercom function is useful for
swift communication between the pilot and co-pilot.
The squelch opens
manually.
Set the communication/intercom switch on the VHF
control panel to the “intercom” position. Voice signals
from the microphone are sent to both the pilot and
co-pilot’s headsets.
i Transmitting
NOTE:
To
prevent
interference,
listen
on
the
frequency
before
transmitting.
If
the
frequency
is
busy,
wait
until
the
frequency
is
clear.
1)
Select
the
yoke-mounted
communication/intercom
switch
to
the
“communication”
position.
2) Select an operating frequency.
3) Push the PTT switch.
© “TX" appears.
4) Speak into the microphone at your normal voice
level.
#DO NOT set the microphone too closely to your
mouth or speak too loudly. This may distort the
signal.
5) Release the PTT switch to receive.
