Icom IC-A210 Service Manual

(Amended page)
July 2019
The underlined parts have been updated from the addendum of the previous version, or from the original page.

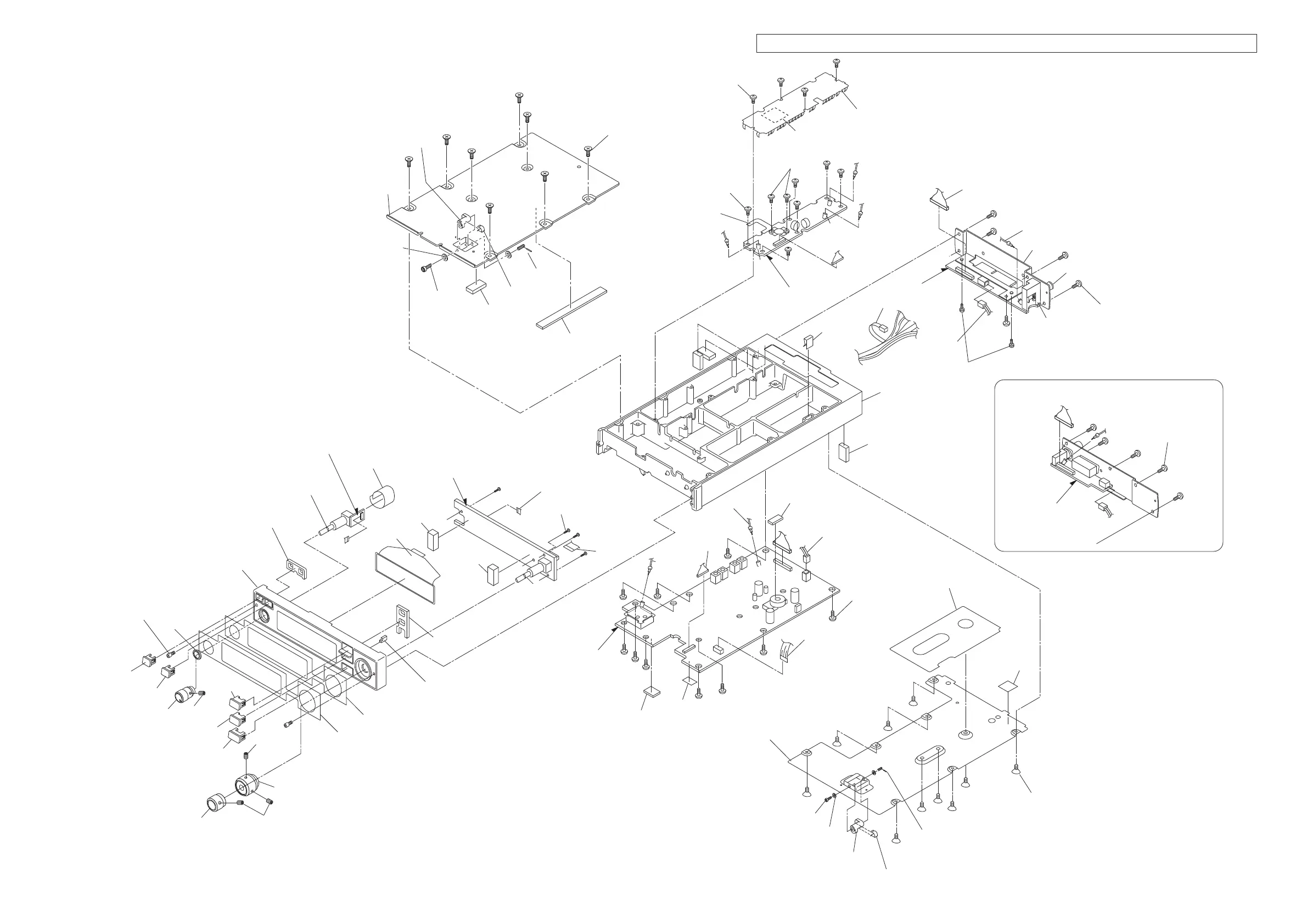

6-4g
MP2(CHASSIS)
(8110009171)
MP31(CHASSIS)×8
(8810002950)
MP38(CHASSIS)
(8930027730)
MP23(CHASSIS)
(8930073260)
MP27(CHASSIS)
(8820000691)
MP26(CHASSIS)
(8930022572)
MP28(CHASSIS)
(8930024080)
MP29(CHASSIS)
(8860000740)
MP30(CHASSIS)×2
(8850000690)
PA UNIT
MP31(CHASSIS)×4
(8810002950)
MP5(CHASSIS)
(8510018420)
MP35(CHASSIS)×6
(8810006300)
MP4(PA-EUR)
(8930073540)
MP32(CHASSIS)
(8810003131)
VOLUME UNIT
MAIN UNIT
MB-113
FRONT UNIT
MP1(FRONT)
(8930072850)
MP33(CHASSIS)×4
(8810010151)
(1)
(2)
(2)
(1)
(3)
(3)
(4)
(4)
(6)
(6)
(7)
(7)
(7)
(8)
(8)
(6)
(5)
(5)
(5)
MP8(MAIN)
(8930057731)
MP4(CHASSIS)
(8110009180)
MP27(CHASSIS)
(8820000691)
MP26(CHASSIS)
(8930022572)
MP28(CHASSIS)
(8930024080)
MP35(CHASSIS)×10
(8810006300)
J1
J3
MP29(CHASSIS)
(8860000740)
MP30(CHASSIS)×2
(8850000690)
MP37(CHASSIS)
(8930069430)
MP24(CHASSIS)
(8930073270)
MP11(MAIN)
(8930073230)
MP10(MAIN)
(8930027730)
MP39(CHASSIS)×3
(8930057731)
MP1(CHASSIS)
(8010020770)
MP25(CHASSIS)
(8930073480)
MP43(CHASSIS)×4
(8950000180)
DS11(FRONT)
(5060000021)
MP6(CHASSIS)
(8210023930)
MP22(CHASSIS)×2
(8820001450)
MP21(CHASSIS)
(8930073160)
MP20(CHASSIS)
(8930072840)
MP34(CHASSIS)
(8830001470)
MP19(CHASSIS)
(8930072830)
MP11(CHASSIS)
(8610013150)
MP17(CHASSIS)
(8610013210)
MP16(CHASSIS)
(8610013200)
MP36(CHASSIS)
(8810003520)
MP18(CHASSIS)
(8610013220)
MP13(CHASSIS)
(8610013170)
MP15(CHASSIS)
(8610013190)
MP14(CHASSIS)
(8610013180)
MP12(CHASSIS)
(8610013160)
MP2(FRONT)
(8930072850)
MP4(K-CONNECT)
(8110009160)
MP31(CHASSIS)×5
(8810002950)
MP31(CHASSIS)×5
(8810002950)
MP5(K-CONNECT)
(8810002950)
MP31(CHASSIS)×10
(8810002950)
MP9(CHASSIS)
(8310078280)
MP10(CHASSIS)
(8930072860)
MP34(CHASSIS)
(8830001470)
MP36(CHASSIS)
(8810003520)
MP36(CHASSIS)
(8810003520)
K-CONNECT UNIT
W9(CHASSIS)
(8900019430)
W9(CHASSIS)
(8900019430)
J8
J2
J7
W8(CHASSIS)
(8900017010)
S1(FRONT)
(2250000580)
W3(CHASSIS)
(8900016960)
W5(CHASSIS)
(8900016990)
W6(CHASSIS)
(8900016990)
W4(CHASSIS)
(8900016970)
MP45(CHASSIS)
(8930069420)
W1(K-CONNECT)
(7030012280)
W2(K-CONNECT)
W7(K-CONNECT)
MP1(K-CONNECT)
(8510018590)
Acetate cloth tape
J1(K-CONNECT)
(6510014210)
J504
J502
J501
