Icom IC-A22 Instruction Manual

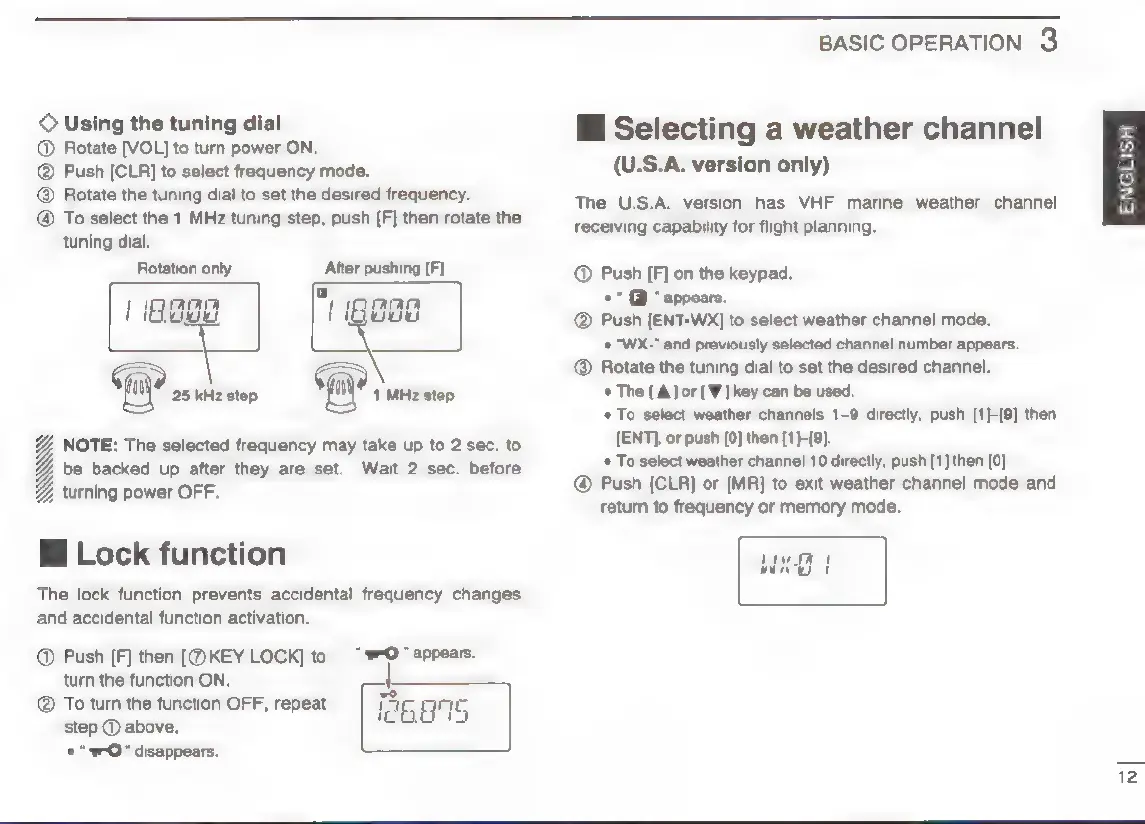

© Using the tuning dial
@ Rotate [VOL] to turn power ON.
@® Push [CLR] to select frequency mode.
@ Rotate the tuning dial to set the desired frequency.
@ To select the 1 MHz tuning step, push [F] then rotate the
tuning dial.
Rotation only After pushing [F]
25 kHz step 1 MHz step
NOTE: The selected frequency may take up to 2 sec. to
be backed up after they are set, Wait 2 sec. before
turning power OFF,
WW
i Lock function
The lock function prevents accidental frequency changes
and accidental function activation.
@ Push [F] then [@KEY LOCK] to * O "appears.
turn the function ON,
@® To turn the function OFF, repeat 6895
step @ above,
©“ w-O " disappears.
BASIC OPERATION 3
li Selecting a weather channel
(U.S.A. version only)
The U.S.A. version has VHF marine weather channel
receiving capability for flight planning.
@ Push [F] on the keypad.
©" @ “appears.
@ Push [ENT-WX] to select weather channel mode.
* "WX." and previously selected channel number appears.
@ Rotate the tuning dial to set the desired channel.
* The [A] or[¥] key can be used,
* To select weather channels 1-9 directly, push [1]}-{9] then
[ENT], or push [0] then [1}+{9].
* To select weather channel 10 directly, push [1] then [0].
@ Push [CLR] or [MR] to exit weather channel mode and
return to frequency or memory mode.
ENGLISH
