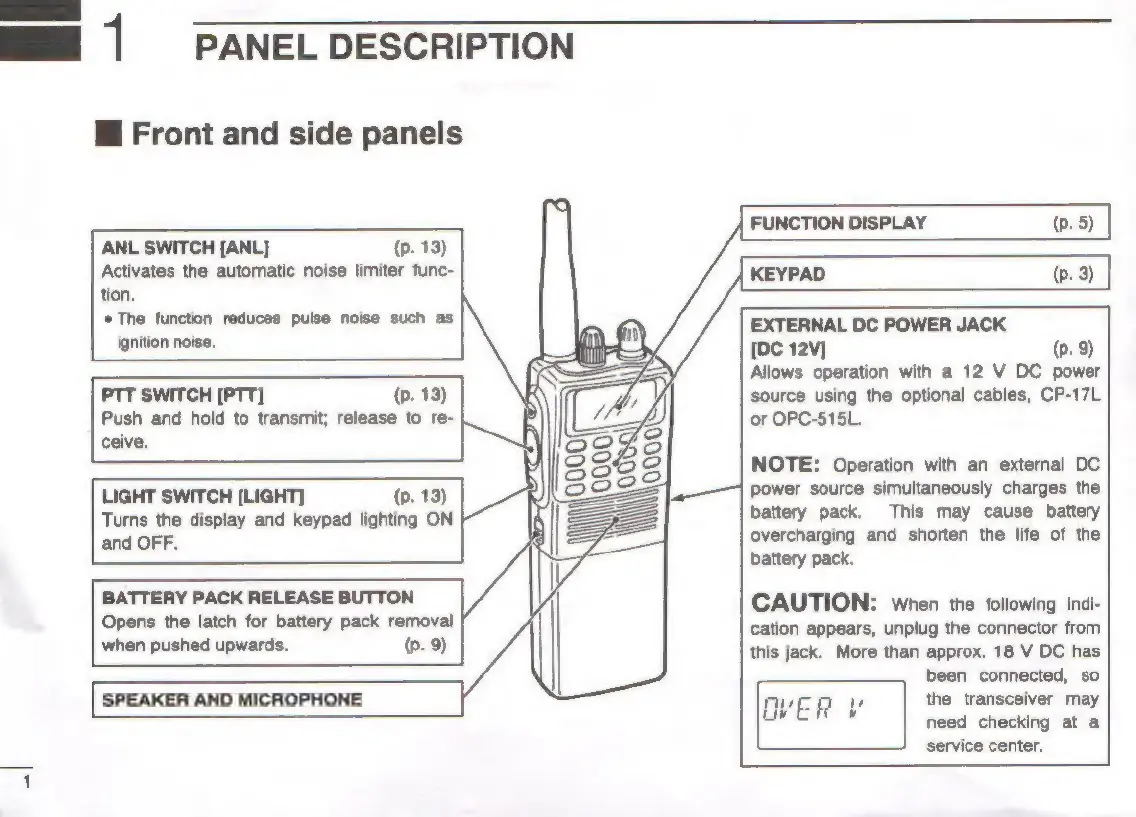

PANEL
DESCRIPTION
i
Front
and
side
panels
ANL
SWITCH
[ANL]
(p.
13)
Activates
the
automatic
noise
limiter
func-
tion,
*
The
function
reduces
pulse
noise
such
as
ignition
noise.
PTT
SWITCH
[PTT]
(p.
13)
Push
and
hold
to
transmit;
release
to
re-
ceive.
LIGHT
SWITCH
[LIGHT]
(p.
13)
Turns
the
display
and
keypad
lighting
ON
and
OFF.
BATTERY
PACK
RELEASE
BUTTON
Opens
the
latch
for
battery
pack
removal
when
pushed
upwards.
(p.
9)
SPEAKER
AND
MICROPHONE
E
=
power
source
simultaneously
charges
the
FUNCTION
DISPLAY
(p.
5)
EXTERNAL
DC
POWER
JACK
[DC
12V]
(p.
9)
Allows
operation
with
a
12
V
DC
power
source
using
the
optional
cables,
CP-17L
or
OPC-515L.
NOTE:
Operation
with
an
external
DC
battery
pack.
This
may
cause
battery
overcharging
and
shorten
the
life
of
the
battery
pack.
CAUTION:
when
the
following
indi-
cation
appears,
unplug
the
connector
from
this
jack.
More
than
approx.
18
V
DC
has
been
connected,
so
the
transceiver
may
need
checking
at
a
service
center.
