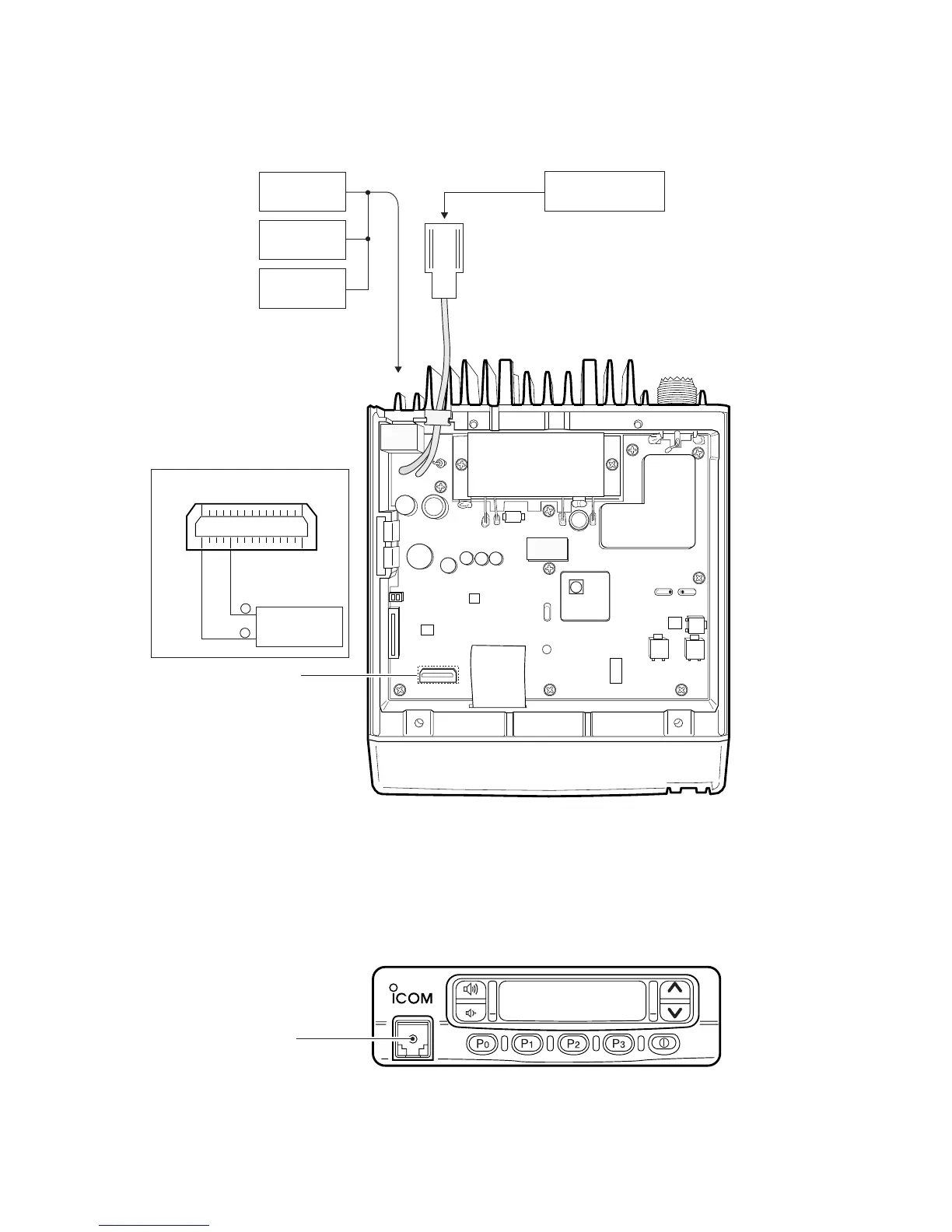

5 - 6
DC power supply
13.2 (13.6) V / 15 A
AC
millivoltmeter
Speaker
4 Ω
SINAD
meter
Audio
generator
• MAIN unit
• FRONT unit
R60
Beep level
adjustment
J2, pin 25
Audio input point
1
15
16
30
25
J2
+
–
