BATTERY CASE

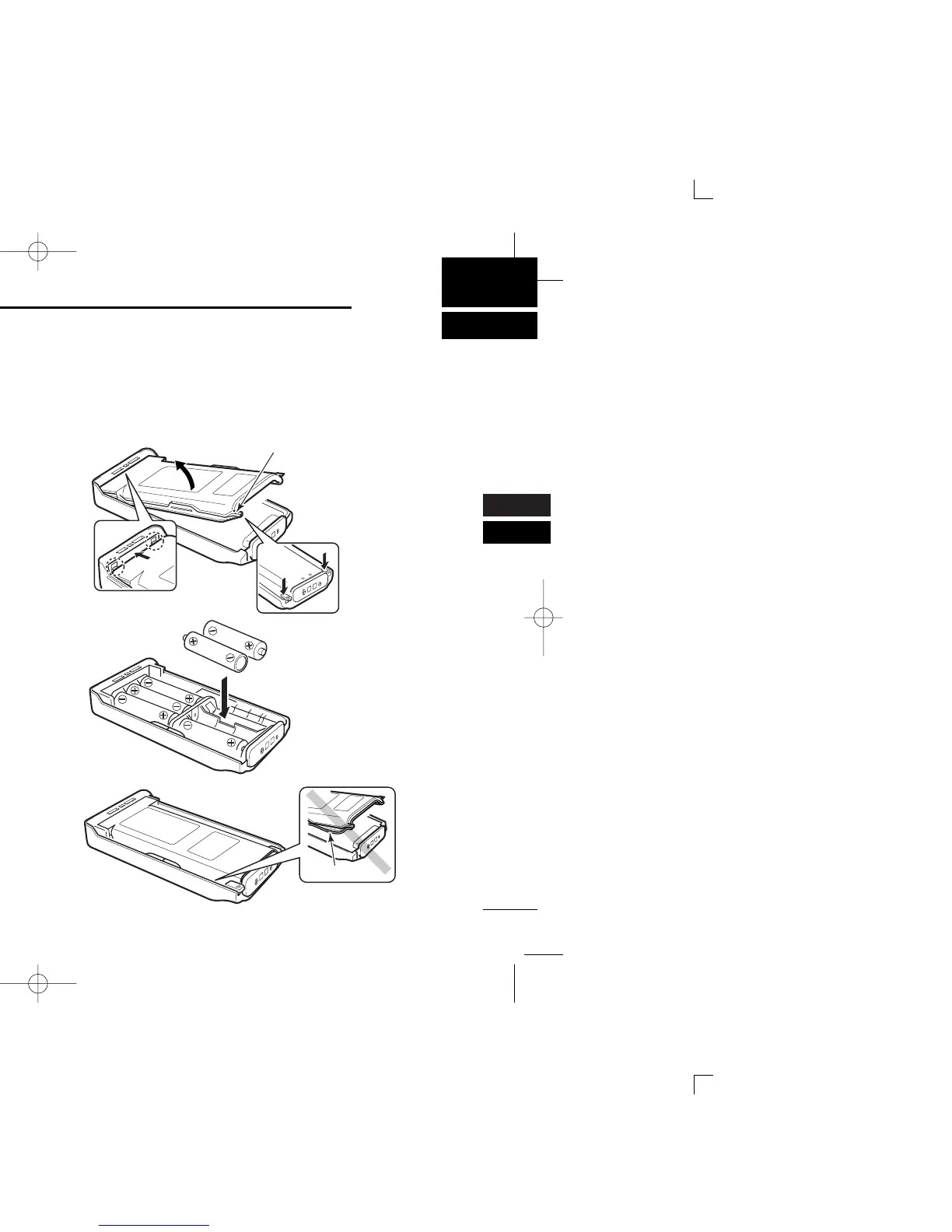

■ Optional battery case (BP-237)
When using the optional battery case attached to the trans-
ceiver, install 6 × AA (LR6) size alkaline batteries as illustrated
at right.
q Hook your finger under the latch, and open the cover in the
direction of the arrow (q). (Fig.1)
w Then, install 6 × AA (LR6) size alkaline batteries. (Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
e Close the cover by fitting in the direction of the arrow (w)
first, then check the latch is in place (e). (Fig.1)
• Be sure the gasket is set correctly, and do not protrude from the
battery case. (Fig.3)
CAUTION:
•When installing batteries, make sure they are all the same
brand, type and capacity. Also, do not mix new and old
batteries together.
•Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.
q
BP-237
Fig.1
Fig.2
Fig.3
e
Latch
w
Gasket
5
6
